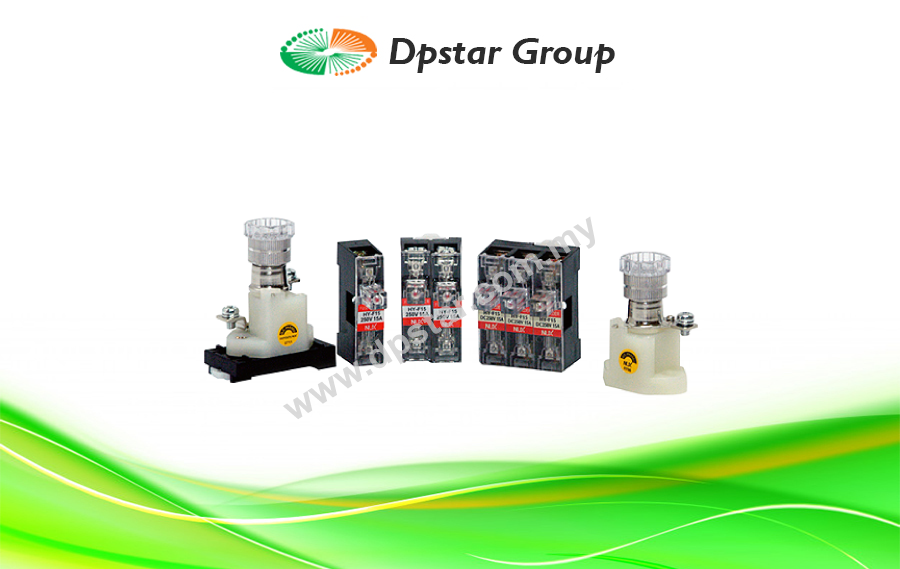

Fuse Holder – Hanyoung Nux F15-A / F15-D / F30

Features

  • LED light flashed when fuse is disconnected
  • Safety cover installation structure
  • DIN rail and bolt fixing installation structure
  • Individual products (1P, 2P, 3P) so simple installation
  • Material for holder body is nylon glass fiber, excellent insulation and heat resistant
Enquiry
Category:
Love0

F15-A / F15-D / F30

  • LED light flashed when fuse is disconnected
  • Safety cover installation structure
  • DIN rail and bolt fixing installation structure
  • Individual products (1P, 2P, 3P) so simple installation
  • Material for holder body is nylon glass fiber, excellent insulation and heat resistant

Specification



HY-F15 Specification

Model Rated current Reference
HY-F15-1A 15 A, 250 V a.c a.c 110 – 220 V a.c
HY-F15-1D 10 A, 24 V d.c d.c 12 – 24 V d.c
HY-F15-2A 15 A, 250 V a.c a.c 110 – 220 V a.c
HY-F15-2D 10 A, 24 V d.c d.c 12 – 24 V d.c
HY-F15-3A 15 A, 250 V a.c a.c 110 – 220 V a.c
HY-F15-3D 10 A, 24 V d.c d.c 12 – 24 V d.c

※ Fuse rating: Ø6 x 30mm glass tube fuse



HY-F30 Specification

Model Rated current Reference
HY-F30 30 A 600 V a.c Screw fixing type
HY-F30C 30 A 600 V a.c DIN rail fixing type

※ Fuse rating: Ø12 × 50mm

Download

Hanyoung Nux HY-F15 Series Fuse holder-DpstarGroup

Hanyoung Nux F30 Series Fuse holder-DpstarGroup
