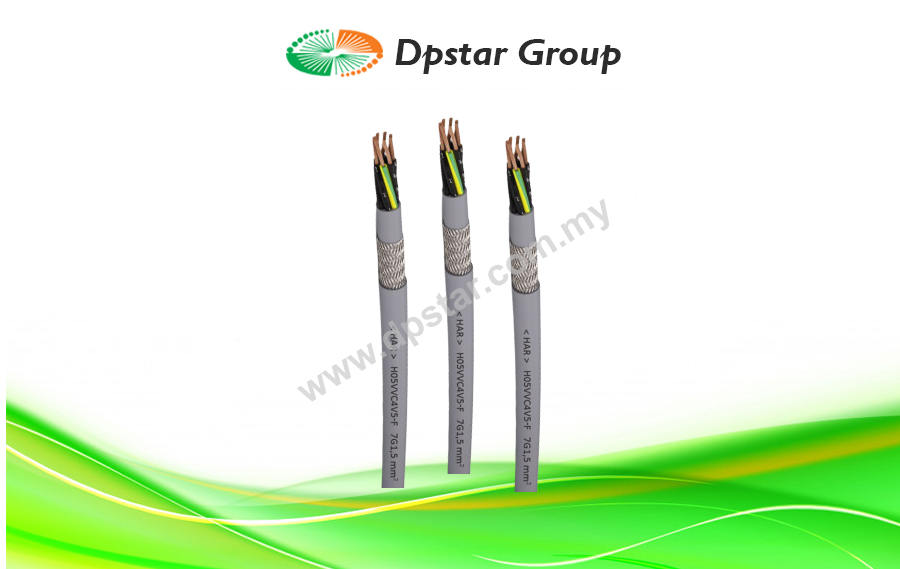

Flexible Signal Cable PVC Insulated With Inner Sheath, Cu Screen & External Oil Resistant PVC Sheath – H05VVC4V5-K

Features

  • Used for surveillance and control of static or mobile devices in the industry, electric plants, or offices.
  • The screen of braided copper wires serves as protection against electromagnetic impacts and signal disturbances.
  • Resistant to oils and medium mechanical loads, used for fixed or limitedly mobile installations (not permanently mobile) without strain.
  • Installed in dry or damp premises, the outdoor application only under protection against UV irradiation.
  • Not intended for laying in ground or water.
Enquiry
Category:
Love0

Dpstar Group is your one-stop solution provider for Cables and Wires. We are the leading cable supplier in Malaysia, specializing in power cables, control instrument cables, Compensating Cables, and Heat Resistance Cables. As a leading control cable supplier, we have vast experience in advising on control cable selection. Our cables are supplied to meet the stringent standards of quality, performance, and functionality, with the ultimate goal of customer satisfaction.

The H05VVC4V5-K Flexible Signal Cable used for surveillance and control of static or mobile devices in the industry, electric plants, or offices. The screen of braided copper wires serves as protection against electromagnetic impacts and signal disturbances. Resistant to oils and medium mechanical loads, used for fixed or limitedly mobile installations (not permanently mobile) without strain. Installed in dry or damp premises, the outdoor application only under protection against UV irradiation. Not intended for laying in ground or water.

Specification

Construction
Conductor Bare copper conductor, fine wire stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295
Insulation PPVC compound TI2 acc. to HD 21.1 / DIN VDE 0281, with green-yellow core, always in external layer (≥ 3 cores) or without green-yellow core
Core Marking (acc. to DIN VDE 0293) black numbered
Sheath PVC compound TM2 acc. to HD 21.1 / DIN VDE 0281
Screen Braid of tinned copper wires of 0,16 mm diameter, with min 85% overlap
External Sheath PVC compound TM5 acc. to HD 21.1 / DIN VDE 0281, oil resistant
Sheath Colour Grey (RAL 7001)
Technical Data
Temperature Range
During Installation -5 °C up to +50 °C
Fixed Installed -30 °C up to +70 °C
Nominal Voltage Uo /U = 300/500 V
Test Voltage min. 2000 V
Insulation Resistance min. 20 MΩ x km
Min. Inner Bending Radius
Fixed Installed 4D
At Application With Bending 12.5D
Behaviour In Fire IEC 60332-1
Conductor Cross-Section Construction of Individual Conductor Insulation Thickness Specific. EL. Resistance of Insulation Conductor Resistance at 20 °C
nominal
mm²		 nominal
n x mm		 nominal
mm		 max.
MΩ/km		 max.
Ω/km
0.5 16 x 0.20 0.6 0.013 39
0.75 24 x 0.20 0.6 0.011 26
1 32 x 0.20 0.6 0.01 19.5
1.5 30 x 0.25 0.6 0.009 13.3
2.5 50 x 0.25 0.7 0.008 7.98
Dimensions – Number of Cores x Conductor Cross-Section External Diameter Cu Weight Cable Weight  Packing*
N x mm² approx. mm kg/km approx. kg/km
2 x 0.5 8 32 95 CUT
3 G 0.5 8.4 42 100 CUT
4 G 0.5 9.1 50 120 CUT
5 G 0.5 10.2 55 140 CUT
7 G 0.5 11.3 75 165 CUT
10 G 0.5 13.5 105 245 CUT
12 G 0.5 13.8 125 285 CUT
16 G 0.5 15.4 152 350 CUT
18 G 0.5 16.8 165 400 CUT
21 G 0.5 18.1 180 440 CUT
24 G 0.5 19.4 190 480 CUT
25 G 0.5 19.7 196 505 CUT
30 G 0.5 20.5 230 550 CUT
34 G 0.5 21.5 245 625 CUT
36 G 0.5 22 260 650 CUT
40 G 0.5 23.4 340 700 CUT
42 G 0.5 23.8 360 730 CUT
48 G 0.5 25 390 840 CUT
50 G 0.5 25.7 400 890 CUT
52 G 0.5 26.2 428 920 CUT
60 G 0.5 27.2 480 1050 CUT
61 G 0.5 30.1 530 1072 CUT
2 x 0.75 8.4 35 100 CUT
3 G 0.75 8.7 50 110 CUT
4 G 0.75 9.9 60 145 CUT
5 G 0.75 10.6 75 170 CUT
7 G 0.75 11.8 94 215 CUT
10 G 0.75 14.2 125 300 CUT
12 G 0.75 14.8 155 305 CUT
16 G 0.75 16.2 185 400 CUT
18 G 0.75 17.8 210 455 CUT
21 G 0.75 19.2 245 500 CUT
24 G 0.75 20.6 270 590 CUT
25 G 0.75 21 280 610 CUT
30 G 0.75 22.1 325 715 CUT
34 G 0.75 23.4 360 805 CUT
36 G 0.75 24 385 830 CUT
40 G 0.75 25 435 890 CUT
42 G 0.75 25.6 450 910 CUT
48 G 0.75 26.7 505 190 CUT
50 G 0.75 27.4 540 1150 CUT
52 G 0.75 27.8 560 1200 CUT
60 G 0.75 30 620 1350 CUT
61 G 0.75 32.4 679 1402 CUT
2 x 1 8.8 52 125 CUT
3 G 1 9.6 60 135 CUT
4 G 1 10.8 75 165 CUT
5 G 1 11.5 85 195 CUT
7 G 1 12.4 115 230 CUT
10 G 1 14.9 165 335 CUT
12 G 1 16.6 195 405 CUT
16 G 1 18.1 235 515 CUT
18 G 1 19.4 265 590 CUT
21 G 1 20.5 35 650 CUT
24 G 1 22.4 325 710 CUT
25 G 1 22.8 340 730 CUT
30 G 1 23.5 395 850 CUT
34 G 1 25.8 445 945 CUT
36 G 1 26.2 470 1020 CUT
40 G 1 27.6 540 1090 CUT
42 G 1 28 570 1130 CUT
48 G 1 29 630 1240 CUT
50 G 1 29.7 660 1270 CUT
52 G 1 30 690 1350 CUT
60 G 1 31.8 830 1500 CUT
61 G 1 34.3 883 1694 CUT
2 x 1.5 9.6 57 145 CUT
3 G 1.5 10 68 170 CUT
4 G 1.5 11 82 205 CUT
5 G 1.5 12.2 100 245 CUT
7 G 1.5 13.4 138 325 CUT
10 G 1.5 16.4 173 415 CUT
12 G 1.5 17 216 485 CUT
16 G 1.5 18.8 275 600 CUT
18 G 1.5 19.8 311 665 CUT
21 G 1.5 21.1 348 765 CUT
24 G 1.5 23.4 395 880 CUT
25 G 1.5 23.4 408 900 CUT
30 G 1.5 24.8 489 1060 CUT
34 G 1.5 27 552 1215 CUT
36 G 1.5 27 602 1260 CUT
40 G 1.5 27.9 649 1355 CUT
48 G 1.5 30.8 765 1605 CUT
50 G 1.5 31.2 805 1655 CUT
52 G 1.5 32 845 1705 CUT
60 G 1.5 33.2 834 1905 CUT
2 x 2.5 11.5 81 200 CUT
3 G 2.5 12.1 115 240 CUT
4 G 2.5 13.2 140 285 CUT
5 G 2.5 14.2 185 330 CUT
7 G 2.5 15.8 240 440 CUT
10 G 2.5 19 325 600 CUT
12 G 2.5 21 390 720 CUT
14 G 2.5 415 890 CUT
16 G 2.5 23.5 480 940 CUT
18 G 2.5 25.4 555 1000 CUT
21 G 2.5 27 650 1200 CUT
24 G 2.5 29.4 750 1340 CUT
25 G 2.5 30 790 1380 CUT
30 G 2.5 31.5 820 1610 CUT
34 G 2.5 33.4 990 1650 CUT
36 G 2.5 34 1080 1775 CUT
40 G 2.5 35.6 1280 1930 CUT
42 G 2.5 36.2 1400 2050 CUT

*Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length
