Flexible Heated Hoses – Flexelec TUY

Through our deep knowledge and experience, we are able to supply electrical heat tracing systems and solutions to achieve both dynamic heat up and temperature maintenance applications in Oil and Gas, Palm Oil, Food Industry, and others. To maintain a static or a moving product at an even temperature, Dpstar provides a wide range of heating cables. We understand your requirements and we are specialists in Electrical Heat Tracing solutions and provide reliable systems and solutions. Dpstar is responsible, trustworthy, and accountable you can count on.

The heater cable is build up with a heating part and a cold part. The heating cable FLEXUNIT could be done with different insulation and options. Our heating cables are used in the refrigeration industry, house appliances, any equipment or machine requiring freeze protection. Dpstar offer a complete range of heating cable, heating, and heater tape with silicon or thermo plastic insulation.

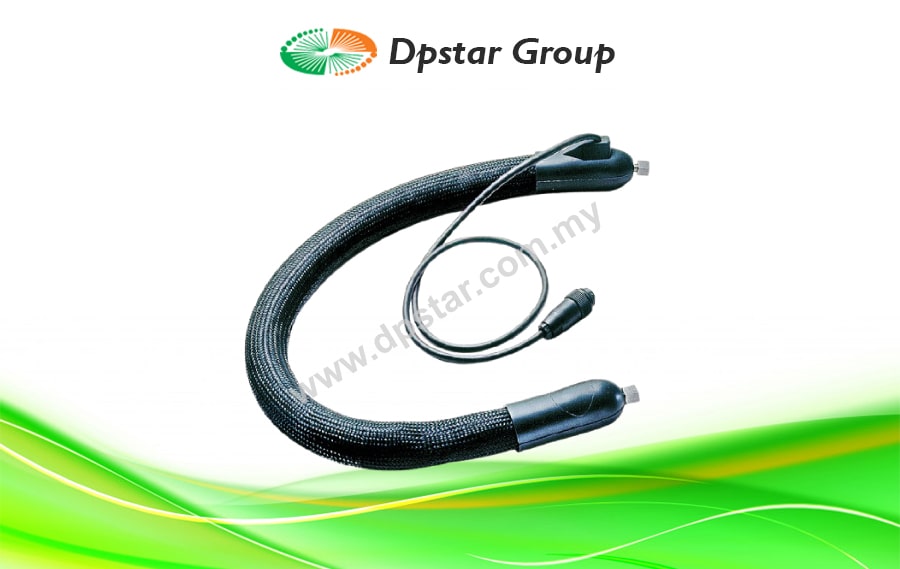

TUY Flexible heated hoses are used as connecting parts between fixed and moving machine parts when it is vital to maintain these at constant temperature. Gluing applications, hotmelt adhesive installations, the food industry, labeling machines, polyurethane foam spraying installations, oil burner conduits, gas sampling conduits for measuring purposes, etc. To ensure that these heating elements enjoy a long service life, we recommend using a control device.

Characteristics

• Temperature range: 100°C, 200°C, and 250°C.
• Hose: PTFE reinforced with a stainless steel braid.
• Heating cable: PTFE insulation with braid.
• Temperature sensor: PT 100 or thermocouple J or K.
• Heat insulation: Silicon foam.
• Outer sheath: Polyamide braid.
• End pieces : Silicon caps with the device to protect output cable from being ripped out.
• Voltage: 230 V, other on request.
• Connection: Revolving nuts, UNF, BSP/DKR connections, or with smooth endpieces.
• Ingress protection code: IP 40.

Options

• Stainless steel connection.
• Outer stainless or galvanized steel braid.
• Pilot lines can pass through the heated hose.
• Special designs on request.
• Electronic regulator.

Applications

• Control the temperature of adhesives with heating hoses.
• Keep warm the food with heating tape.
• Temperature maintenance of fluids with the heating element.
