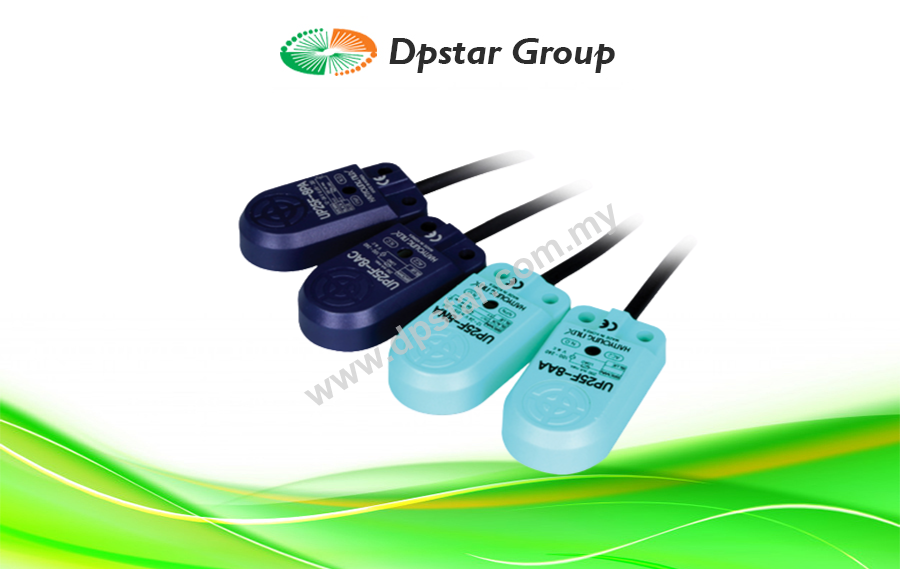

Model |
D.C 3 wire type |
D.C 2 wire type |
NPN |
UP25F-8N  |
Polarity |
UP25F-8T  |
PNP |
UP25F-8P  |
No Polarity |
UP25F-8U  |
Size |
25 X 49 Flat type |
25 X 49 Flat type |
Standard sensing object(㎜) |
Iron 25 X 25 X 1 |
Sensing distance |
8 mm |
Setting distance |
0 ~ 6.4mm |
Hysteresis |
Less than 10% of sensing distance |
Response frequency |
200 Hz |
Power supply voltage |
12 – 24 V a.c
(Usable voltage range 5 – 35 V d.c) |
12 – 24 V a.c
(Usable voltage range 10 – 30 V d.c) |
Control output |
Open/Close capacitance |
200 mA max (Resistive load) |
100 mA max (Resistive load) |
Residual voltage |
Max 1.5 V |
Polarity : max 3.5 V, No polarity : max 5 V |
Current consumption |
Max 6 mA |
– |
Leakage current |
– |
Max 1 mA |
Operation indication |
Red LED |
Protective circuit |
Power reversely connected protective circuit,
Surge protective circuit and over current protective circuit are built in. |
Degree of protection |
IP67 (IECstandard) |
Connection structure |
Cable type(Standard cable length 2m), Relay connector type |
Material |
Case : PBT resin, Cable holder : Polyester elastomer |
Weight |
Cable type |
approx. 60g |
approx. 60g |
Relay connector type |
approx. 20g |
approx. 20g |
