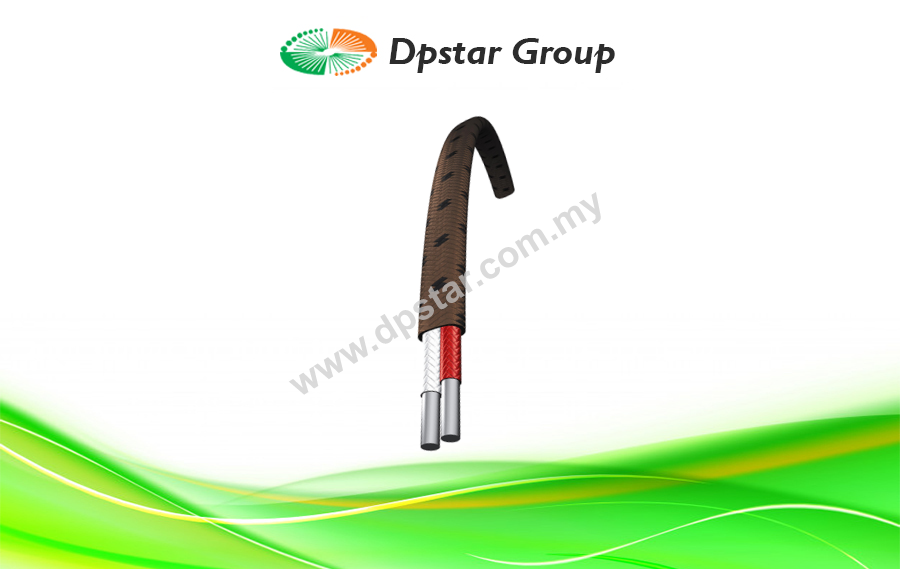

Fiberglass Insulated Cable – TEW&C G/G

Features

  • Flexible with good moisture, chemical and abrasion resistance
  • Provides accurate temperature measurement with high temperature stability
  • According to AMS2750E load thermocouple made from calibrated spool thermocouple wire up to 2000 feet do not need to be calibrated individually
  • According to AMS2750E on single use load thermocouple SAT test is not required (special procedure on instrument calibration is to be implemented)
  • Very useful as TUS test thermocouple
Enquiry
Category:
Love0

G-Glass Fiberglass. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Designed for continuous use in temperatures rating up to 950 Degrees F (510 Degrees C). Fiberglass is flexible and can be ordered twisted with reduced itch Tuffbond TM construction. G-Glass can be used in industry applications such as heat treatment, metal forgings, metal qualifications, aluminum.

Applications

  • Heat Treatment
  • Temperature Sensors
  • Steel and Aluminum Industry
  • Plastic Processing Equipment
  • Furnace Surveys
  • Testing

Available Options

  • Reduced Itch Tuffbond TM Impregnation on Singles
  • Stabilized Type K & Type E Conductors
  • Fused PTFE Tape Moisture Barrier
  • Double Glass Braid Insulation
  • Twisted/Shielded Pair
  • Metal Coverings
  • Tighter than Special Limit Accuracy Tolerances
  • Special Color Codes
  • Calibration Test Reports

Specification

Conductors Solid or stranded thermocouple wire per ASTM E230 & ANSI MC96.1
Insulation Braided fiberglass with high temperature impregnation* (24 to 30 AWG Served Glass)
Construction Parallel conductors
Jacket Braided fiberglass with high temperature impregnation*
Operating Temperature +950F (+510C) continuous +1200F (+650C) single exposure
Limits of Error Conforms to ASTM E230, IEC 584 and ANSI MC 96.1
Color Code Conforms to ASTM E230 and ANSI MC96.1 (International Color Codes Available)

*Impregnation maintained to +400F (+200C)
