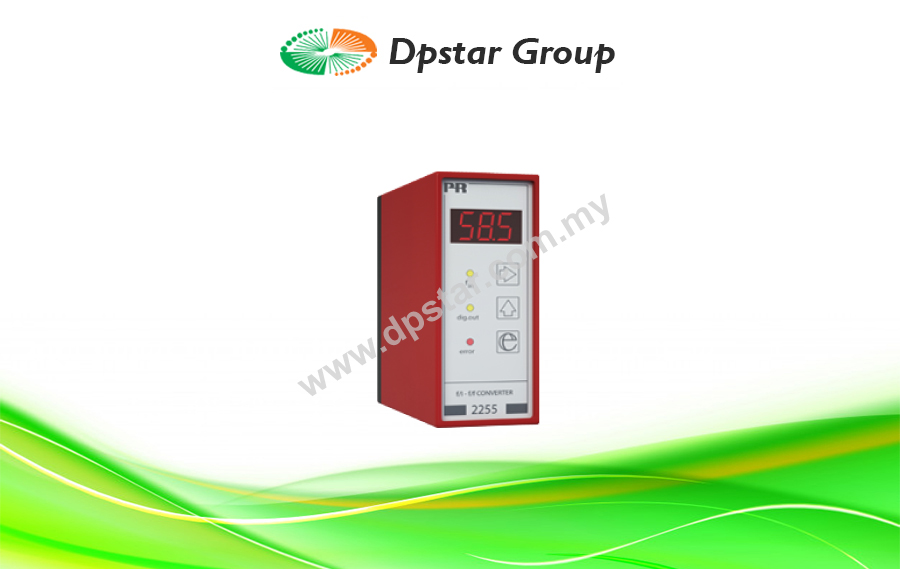

F/I-F/F Converter – PR Electronics 2255

Features

  • Programmable f/I converter
  • Programmable decimal divider / decimal multiplier
  • Programmable frequency generator
  • Relay output as option
  • Supply voltage 24 VDC
Enquiry
Category:
Love0

Advanced features

  • The user programmable version has a multifunction user interface consisting of three pushbuttons and a 3-digit LED displays.

Application

  • Typical signalling devices may be pulse generators, for instance flow meters, tacho-generators or inductive sensors.
  • The f/I function is used for frequency to current / voltage conversion.
  • The f/f function is used for division or multiplication of pulses and as a buffer for fast pulse trains.
  • A frequency generator function e.g. used as a time base or a clock generator.

Technical characteristics

  • 3 front LEDs, indicating f.in active input (not NPN), Dig.out (NPN or relay 1) active output and a NAMUR input error signal.
  • Analog current output can be configured within 0…20 mA range.
  • Voltage output range is selectable between 0…10 VDC by use of internal jumpers.
  • Feature include input filter, contact filter and an auxiliary supply for sensor such as NAMUR and S0.
  • Mounting for a standard 11-pole socket which can be adapted for DIN rail or plate use with PR’s 7023 adaptor and 7024 mounting keying.

Specification

ENVIRONMENTAL CONDITIONS
Operating temperature -20°C to +60°C
Calibration temperature 20…28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP50
MECHANICAL SPECIFICATIONS
Dimensions (HxWxD) 80.5 x 35.5 x 84.5 mm (D is without pins)
Weight approx. 125 g
COMMON SPECIFICATIONS
Supply
Supply voltage 19.2…28.8 VDC
Internal power dissipation 2.4 W
Isolation voltage
Isolation voltage, test / working 1.4 kVAC / 150 VAC
Response time
Response time (programmable) 60 ms to 999 s + period time
Warm-up time 1 min.
Signal / noise ratio Min. 60 dB
Accuracy Better than 0.1% of sel. range
Signal dynamics, output 16 bit
Effect of supply voltage change < 0.005% of span / VDC
Temperature coefficient < ±0.01% of span / °C
Linearity error < 0.1% of span
S0 supply 15 VDC / 25 mA
Special supply (programmable) 5…15 VDC / 30 mA (acc. to order)
EMC immunity influence < ±0.5%
INPUT SPECIFICATIONS
Common input specifications
Max. offset 90% of selec. max. value
Measurement range 0…20 kHz
Min. measurement range 0.001 Hz
Low cut-off frequency 0.001 Hz
Min. pulse length 25 μs
Input types NAMUR acc. to DIN 19234 Tacho
NPN / PNP
TTL
S0 acc. to DIN 43864
OUTPUT SPECIFICATIONS
Current output
Signal range 0…20 mA
Min. signal range 5 mA
Load (@ current output) ≤ 600 Ω
Load stability ≤ 0.01% of span / 100 Ω
Common output specifications
Updating time 20 ms
Relay output
Max. switching frequency 20 Hz
Max. voltage 150 VRMS
Max. current 2 AAC
Max. AC power 300 VA
Max. load at 24 VDC 1:00 AM
Voltage output through internal shunt See manual for details
Max. current, NPN output 130 mA
Max. voltage, NPN output 28 VDC
Frequency output range 0…1000 Hz
Min. pulse length 500 μs
Max. pulse length 999 ms
Max. duty cycle 50%
Frequency generator: Pulse length f < 50 Hz Min. 10 ms Max. 999 s
Pulse length f ≥ 50 Hz 50% duty cycle
of span = of the presently selected range
OBSERVED AUTHORITY REQUIREMENTS
EMC 2014/30/EU
LVD 2014/35/EU
EAC TR-CU 020/2011
