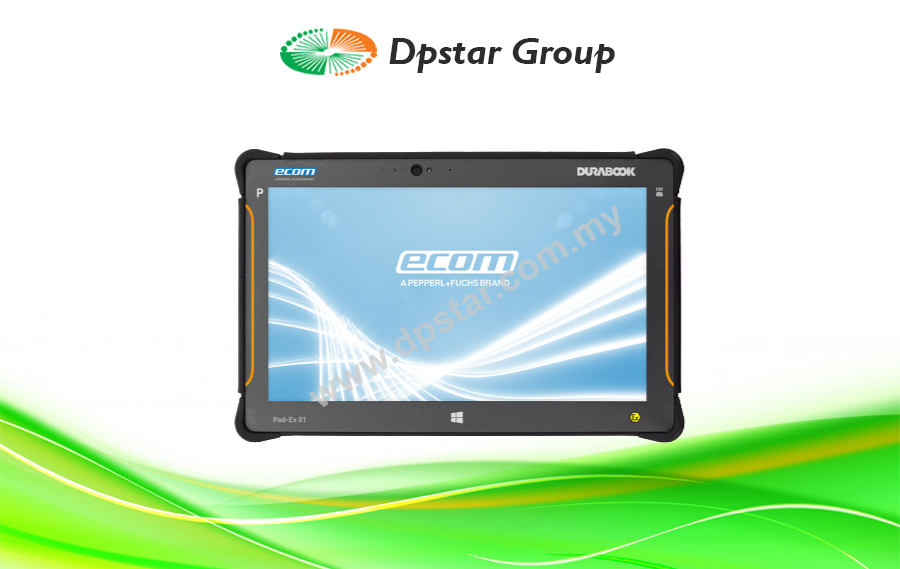

Explosion Proof Tablets (Windows) – Ecom Pad-Ex 01 P8 D2

Features

  • hd 1920×1080: High Resolution Display
  • High Speed and Efficiency for the Most Demanding Tasks
  • Service Level Agreement
  • Custom Software Load

11.6″ widescreen display with sunlight readable solution

  • Sunlight Readable Display
  • Capacitive Multi-Touch Screen

Integrated options for various Applications

  • Data Collection
  • 1D / 2D Barcode Scanner (optional)
  • 5MP Auto Focus Camera with LED Flash Light
Enquiry
Categories: , , ,
Love0

Pad-Ex 01 P8 D2 redefines what a mobile Full Win tablet PC shall be:

While being given its level of ruggedness, Pad-Ex 01 P8 D2 meets all the environmental requirements and supports the 8th generation Intel Core i5 processor. It also provides battery life up to 7 hours and Windows 10 Pro support. Combining robust features and a large screen size, superior performance is ideal for field operatives of all sectors to complement or even substitute Desktop PC, laptop or wall mounted display.

Rugged revolution thin, light and strong

Supporting such an ultra compact form factor, Pad-Ex 01 P8 D2 manages to fully meet IP64, 4 feet drop and MIL-STD 810G for vibration. With its additional display protection it offers complete protection against the harsh environment field workers face and minimizes burden on their bodies during long hours of work.

Connectivity – fast and flexible

As private 4G / LTE wireless connectivity is increasingly adopted within hazardous areas, Pad-Ex 01 P8 D2 ensures access is fast and seamless – enabling users to quickly access the information needed to perform the task at hand. For sites without WiFi or 4G access in the field, Pad-Ex 01 P8 D2 provides up to 256GB of SSD memory to meet your on-board data storage needs, backed by an i5 to ensure your applications run as smoothly and efficiently as possible.

Central to ecom’s Mobile Worker concept, the latest Bluetooth standards are also supported by Pad-Ex 01 P8 D2, allowing realtime connectivity to both Bluetooth SmartReady Low Energy 5.0 (BLE) devices as well as older legacy Bluetooth devices. This allows the mobile worker to benefit from expanded Pad-Ex 01 P8 D2 capabilities such as data collection and measuring/monitoring devices, headsets, AutoID, and Bluetooth Beacons for localization.

Once your work in the field is done, Pad-Ex 01 P8 D2 transforms into your PC via the optional desktop docking interface, allowing seamless integration into your office and corporate networks.

Specification

Rugged features • P64 according to EN/IEC 60079-0 (ATEX/IECEx)
• IP65 according to EN/IEC 60529 (industrial standard)
• MIL-STD 810G certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
• MIL-STD 461 certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
• ANSI/ISA 12.12.01-2000, Class I, Division 2
• 4‘ drop 26 faces
Environmen • Operating Temperature: -10°C – 55°C (14°F – 131°F)
• Storage Temperature: -10°C – 55°C (14°F – 131°F)
• Operating Humitidy: 5% to 95%
Operating System Windows10 Pro (64 Bit)
CPU Intel Core i5-8250U (8th Gen.) 1.6GHz processor with Turbo Boost Technology up to 3.4GHz, 6MB cache
Memory One DDR4 socket for 8 GB
Storage M2-SATA SSD 256 GB (extended temperature range)
Display • 29.46 cm / 11.6“(1920 x 1080) FHD LCD Panel
• Capacitive Multi-Touch
• Optical, sunlight-readable display
Audio Speaker x1 / 70dB | Microphone x1
Camera • 2-MP front facing camera
• 5 MP rear camera with flashlight
Communication •  WWAN LTE + GPS Combo (optional)
• Intel Wireless AC9260 802.11 a/b/g/n/ac
• Bluetooth 5.0
Data Collection Optional 1-D / 2-D barcode scanner
VO Ports • Two USB 3.0
• One headphone out / mic-in jack
• One docking connector
• One expansion connector for expansion modules
• Two RF pass-through connectors for WWAN and GPS
Expansion Slots •  One microSD card slot support SDHC and SDXC
•  One SIM card slot for WWAN data communication
Button • Power
• Volume
• Windows touch button
• Barcode / camera touch button
Battery • One 3,950 mAh Li-Polymer battery pack: 7hrs
• Optional (spare part)  7,800 mAh Li-Polymer battery pack: 14hrs
AC-Adapter 19V; 3.42 A; 65 W
Dimension / Weight 298 mm x 192 mm x 20 mm / 1.2 k
