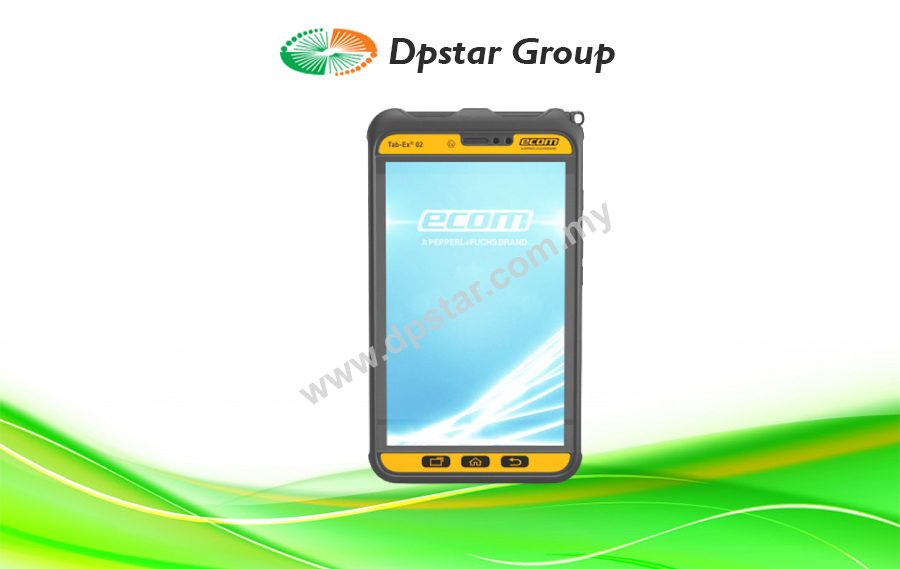

Explosion Proof Tablets (Android) – Ecom Tab-Ex 02 DZ2 | Zone 2 & Division 2

Features

  • Octa-Core
  • 3 GB RAM
  • 8MP AF + 5MP Camera / optional: Non-Camera
  • IP64
  • S Pen
  • Pogo pin for charging
  • Biometric Authentication
  • Additional sensors: Gyroscope, Geomagnetic
Enquiry
Categories: , , ,
Love0

ecom’s hazardous area tablet, the Tab-Ex 02, based on Samsung’s state of the art Galaxy Tab Active2, leverages Samsung’s know-how and brings a new level of customer focused solutions and increased ease of use to mobile workers in Oil & Gas, Refining, Chemical, Pharmaceuticals and other hazardous industries.

The lightweight and robust Tab-Ex 02 with the high-performance Android operating system features a powerful Octa Core processor with 1.6 GHz and 3 Gigabyte RAM. Thereby ecom provides the technological basis for complex applications that connect people, processes and systems through the Internet of Things and will be a decisive factor for a company’s success in the coming years.

The improved hardware of the Tab-Ex 02 enables, for example, to identify objects in an installation via augmented reality applications. The software delivers all the underlying, existing data directly into the user’s field of vision in real time, while also making it shareable within the company network. Augmented reality ensures greater transparency, higher availability and faster as well as safer processes – from the planning to the operation and maintenance of a plant.

Benefits

  • Ensuring and maximizing mobile worker’s efficiency & productivity
  • Ensuring accurate data capture, real-time information and decision making
  • Minimizing costs
  • Improve ease of use & customer experience

Specification

Operating System Android Unless otherwise specified, the product is shipped with the latest firmware release. Latest firmware release: Android 9
Chipset Exynos 7 Octa, 1.6 GHz Octa-Core (Cortex®-A53)
Memory RAM: 3 GB, Memory: 16 GB, with external MicroSD up to 256 GB
Display 1280 x 800 pixels (WXGA), 8“, TFT, 480 nit Brightness, Operation: also with gloves / in wet conditions & snow
Sensors Face Recognition, NFC, Accelerometer, Proximity, Light, Gyroscope, Geomagnetic, Hall, GPS
Dimensions 127.6 x 214.7 x 9.9 mm, 575 g
Operating temperature -20 °C … +55 °C
Degree of protection • IP64 according to EN/IEC 60079-0 (ATEX/ IECEx)
• IP68* according to EN/IEC 60259 (industrial standard) and MIL-STD-810G
* IP68 is based on test conditions for submersion in up to 1.5 meters of freshwater for up to 30 minutes.
Connectivity • LTE Cat.6 (300Mbps)
• Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz)
• Wi-Fi Direct
• Bluetooth®4.2
Frequency Bands ROW WWAN version only
Supported cellular frequency bands:
• 4G LTE FDD: B1(2100), B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B8(900), B17(700), B20(800), B28(700)
• 4G LTE TDD: B38(2600), B40(2300)
• 3G UMTS: B1(2100), B2(1900), B4(AWS), B5(850), B8(900)
NAM WWAN version only
Supported cellular frequency bands:
• 4G LTE FDD: B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B12(700), B13(700), B29(700)
• 3G UMTS: B1(2100), B2(1900), B5(850), B8(900)
Security Samsung KNOX 3.2, Face Recognition
Camera: Rear + Front 8 MP AF + 5 MP / optional: Non-Camera
Battery Li-Ion battery 3.8 V / 4,450 mAh / 16.91 Wh / up to 11 hours battery life
