Explosion Proof Tablets (Android) – Ecom Tab-Ex 01 | Zone 2 & DIV 2

Features

  • Global certifications – one common platform
  • Android™ 5.1.1 (optionally 4.4.4) Operating System
  • Wireless capability as WWAN, 4G LTE*, WLAN, etc.
  • Front and rear camera
    • 3 MP with rear camera Flash with Barcode Scanner capability
    • 1.3 MP front camera
  • Reinforced security with Samsung KNOX™
  • Accessories and peripherals to enable wide range of uses
  • Suitable for use with gloves
  • NFC technology for wireless applications
  • GPS
  • Water & Dust resistance rating of IP67
  • Capacitive Pen
Enquiry
Categories: , , ,
Love0

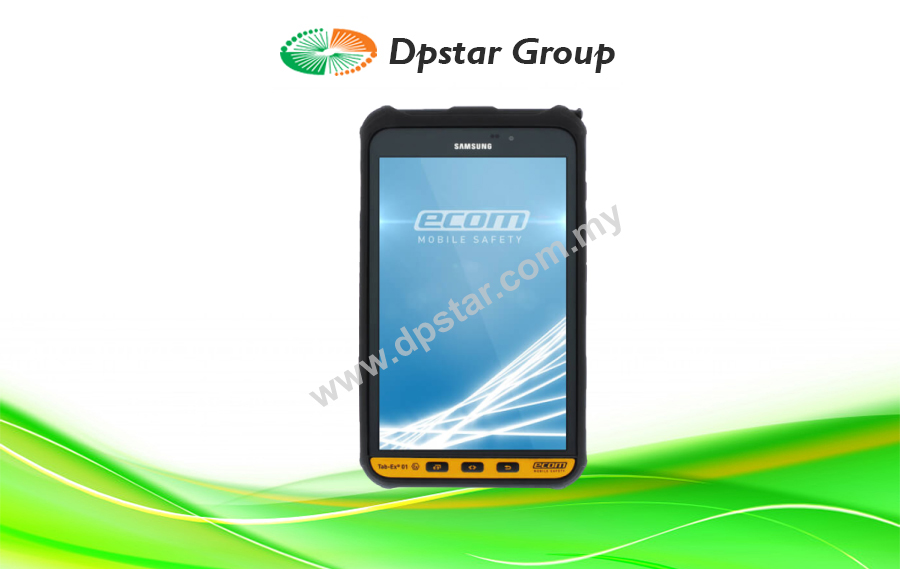

Zone 2 / DIV 2 tablet computer based on Samsung GALAXY Tab Active

ecom´s hazardous area tablet, the Tab-Ex, brings new customer focused solutions and improved ease of use to mobile workers in Oil & Gas, Refining, Chemical, Pharmaceuticals and other industries with hazardous areas. Recognizing that many work tasks are performed in both non-hazardous and hazardous areas, ecom is launching an entire family of compatible tablets, peripherals and accessories ideal for use in Zone 1 / Division 1, Zone 2 / Division 2 and non-hazardous environments worldwide.

Much easier use with Tab-Ex

Lightweight and compact, operating on Android 5.1.1 (optionally 4.4.4) the Tab-Ex is suitable for multiple mobile worker roles performing a range of applications, such as Asset Surveys, Material Tracking, Operator Rounds, Inspection and Maintenance. The 8“ screen enables standard desktop applications to become mobile in hazardous areas, allowing workers to view and interact with SCADA/DCS systems, enterprise systems (SAP, Maximo), and computer aided design systems. Built-in cameras and full range of wireless capability allowing equipment defects to be captured as inspection and maintenance work is executed, and instantly visible to those who need to diagnose the issue and determine the follow-on actions.

Specification

Rugged (Non-Ex) D2 DZ2 DZ1
Operating System
Android 5.1.1 Yes Yes Yes Yes
Android 4.4 Yes Yes Yes Yes
Quad core 1.2 GHz processor Yes Yes Yes Yes
1.5GB RAM + 16GB internal memory Yes Yes Yes Yes
expansion with 64GB microSD-Card (optional) Yes Yes Yes Yes
8 inch TFT display with 1280 x 800 pixels Yes Yes Yes Yes
Dimensions 126,2 x 213,1 x 13,8 mmx 13,8 mm 131,1 x 225,1 x 13,6 mm 131,1 x 225,1 x 13,6 mm 162,1 x 256,0 x 33,3 mm
Operating temperature  -20…+55 °C  -20…+55 °C  -20…+55 °C  -20…+50 °C
Wireless Capability With Yes Yes Yes Yes
•  WLAN Yes Yes Yes Yes
• WWAN (UMTS, HSPA, LTE*)
Change mobile SIM card		 Yes (optional) Yes (optional) Yes (optional) Yes (optional)
•  Bluetooth Smart Ready Yes Yes Yes Yes
•  NFC Yes Yes Yes Yes
Front And Rear Camera Yes Yes Yes Yes
• 3 MP with rear camera Flash with Barcode Scanner capability Yes Yes Yes Yes (optional)
•  1.3 MP front camera Yes Yes Yes Yes (optional)
Reinforced Security With Samsung KNOX Yes Yes Yes Yes
• EMM (MDM+IAM) Yes Yes Yes Yes
• Secure file management Yes Yes Yes Yes
• H/W & S/W Secure platform Yes Yes Yes Yes
Power
(up to 11 hours battery life / 4450 mAh)		 Yes Yes Yes Yes
                           ATEX  –  – II 3G Ex ic IIC T5 Gc
Ta = -20°C to +55°C		 II 2G Ex db ia op is IIC T5 Gb
II 2D Ex tb IIIC T100°C Db
Ta = -20°C to +50°C
                           IECEx

  –  – Ex ic IIC T5 Gc
Ta= -20°C to +55°C		 Ex db ia op is IIC T5 Gb
Ex tb IIIC T100°C Db
Ta= -20°C to +50°C
                           NEC

 – Class I, Division 2, Groups
A,B,C,D, T4
Class I, Zone 2, Group IIC, T4
Ta= -20°C to +55°C		 Class I, Division 2, Groups
A,B,C,D, T4
Class I, Zone 2, Group IIC, T4
Ta= -20°C to +55°C		 US: Class I, II, III, Division 1, Groups A-G T5
Class I, Zone 1 AEx db ia op is IIC T5 Gb
Zone 21 AEx tb IIIC T100°C Db
Ta= -20°C to +50°C
