Explosion Proof Tablets (Android) – Ecom Tab-Ex 01 | DIV 2

Features

  • Rugged design
  • Sensor/gyroscope (magnetic compass)
    • Enables augmented reality to optimize applications
  • Samsung Knox: Reliable enterprise mobile data security
  • High-quality 8 MP/5 MP camera with autofocus function / optional: Non-Camera
  • Fast processor and high storage capacity
  • Flexible: A larger number of more complex applications can be integrated
  • Future-proof: Fulfills the requirements of future, more elaborate applications
  • Time-saving: High computing power for faster data processing
Enquiry
Categories: , , ,
Love0

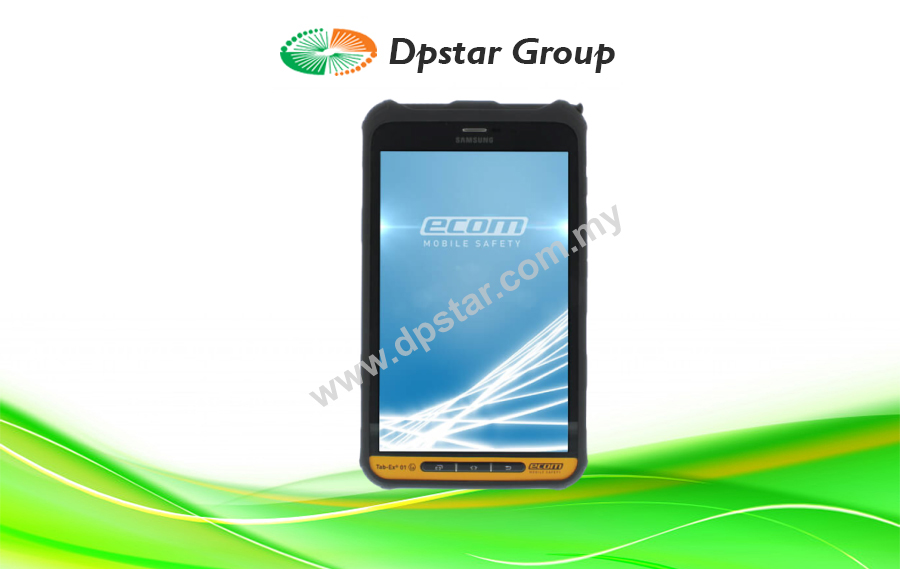

Division 2 tablet computer based on Samsung GALAXY Tab Active

ecom´s hazardous area tablet, the Tab-Ex, brings new customer focused solutions and improved ease of use to mobile workers in Oil & Gas, Refining, Chemical, Pharmaceuticals and other industries with hazardous areas. Recognizing that many work tasks are performed in both non-hazardous and hazardous areas, ecom is launching an entire family of compatible tablets, peripherals and accessories ideal for use in Zone 1 / Division 1, Zone 2 / Division 2 and non-hazardous environments worldwide.

Much easier use with Tab-Ex

Lightweight and compact, operating on Android™ 5.1.1 (optionally 4.4.4), the Tab-Ex® is suitable for multiple mobile worker roles performing a range of applications, such as Asset Surveys, Material Tracking, Operator Rounds, Inspection and Maintenance. The 8“ screen enables standard desktop applications to become mobile in hazardous areas, allowing workers to view and interact with SCADA/DCS systems, enterprise systems (SAP, Maximo), and computer aided design systems. Built-in cameras and full range of wireless capability allowing equipment defects to be captured as inspection and maintenance work is executed, and instantly visible to those who need to diagnose the issue and determine the follow-on actions.

Specification

Operating System Android Unless otherwise specified, the product is shipped with the latest firmware release.
Latest firmware release: Android 9
Chipse Exynos 7 Octa, 1.6 GHz Octa-Core (Cortex-A53)
Memory RAM: 3 GB, Internal data storage: 16 GB, with external MicroSD up to 256 GB
Please note: For safety reasons, the SD card cannot be installed or replaced after delivery.
Display 1280×800 pixels (WXGA), 8“, TFT, 480 nit Brightness, Operation: also with gloves / in wet conditions & snow
Sensors Face Recognition, NFC, Accelerometer, Proximity, Light, Gyroscope, Geomagnetic, Hall, GPS
Dimensions 162.1 x 256.0 x 33.3 mm, ca. 1250 g
Operating temperature -20 °C … +50 °C
Degree of protection • IP64 according to EN/IEC 60079-0 (ATEX/ IECEx)
• IP65 according to EN/IEC 60259 (industrial standard)
Connectivity • LTE Cat.6 (300Mbps)
• Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz)
• Wi-Fi Direct
• Bluetooth 4.2
Frequency Bands ROW WWAN version only
Supported cellular frequency bands:
• 4G LTE FDD: B1(2100), B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B8(900), B17(700), B20(800), B28(700)
• 4G LTE TDD: B38(2600), B40(2300)
• 3G UMTS: B1(2100), B2(1900), B4(AWS), B5(850), B8(900)
NAM WWAN version only
Supported cellular frequency bands:
• 4G LTE FDD: B1(2100), B2(1900), B3(1800), B4(AWS
• 3G UMTS: B1(2100), B2(1900), B5(850), B8(900)
Security Samsung KNOX 3.2, Face Recognition
Camera: Rear + Front 8 MP AF + 5 MP / optional: Non-Camera
Battery Li-Ion battery 3.8 V / 4,450 mAh / 16.91 Wh / up to 11 hours battery life
