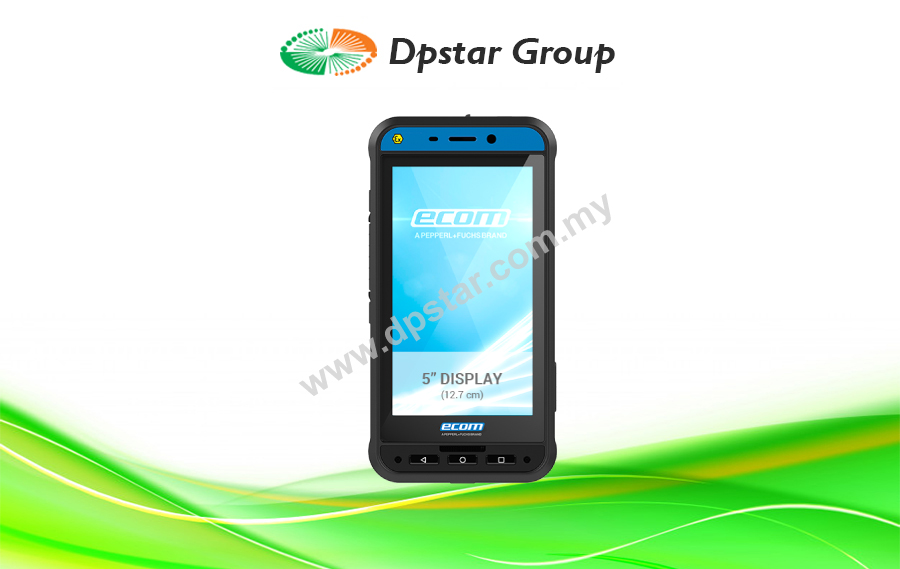

Explosion Proof Cameras – Ecom Smart-Ex 02 DZ1

Features

  • Android Enterprise Recommended verified device
  • 4G / LTE standard (SIM unlocked)
  • Supports Dual-SIM
  • Supports 21 LTE bands
  • 3 GB RAM, 32 GB ROM
    Up to 128 GB additional memory with microSD
  • WiFi Standard 802.11 a/b/g/n/ac/e/k/r/h
    WiFi 2.4 Ghz und 5 Ghz support
  • Bluetooth 4.2 incl. BLE
  • GPS / A-GPS / Glonass / Beidou / Galileo / NFC
  • 2 cameras: 12 MP camera with autofocus and LED flash + 5 MP camera
  • Waterproof magnetic USB 2.0 connection
  • Replaceable 4400 mAh battery
Enquiry

The Smart-Ex 02 DZ1 is the successor of the world’s first intrinsically safe smartphone for Zone 1/21 and DIV 1 areas. In addition, it meets all important global hazardous location and regulatory certifications.

The rugged smartphone has a large, high-resolution display, powerful features, and optimized accessories. Its extended temperature range makes it suitable for even the harshest environments. Designed to support 21 LTE frequency bands, the Smart-Ex 02 has no SIM lock and can be connected to different networks worldwide. An Android operating system enables the intrinsically safe device to work safely, quickly, and efficiently.

The ergonomic design and intuitive user interface enhance the user experience, and optimized accessories and peripherals ensure total compatibility with current and future ecom products. With the most powerful replaceable battery on market (4400 mAh), longer shifts and 24-hour work coverage are possible.

The Smart-Ex 02 also sets new standards when it comes to security. Regular security updates prevent unauthorized access to confidential personal and company data. To ensure unlimited, long-term use of the smartphone, ecom offers a three-year service level agreement. Pepperl+Fuchs’ global sales and service network provides excellent customer service around the globe. Support from ecom’s system engineers and development teams is also available when software requirements change.

Specification

Operating System AndroidTM 9.0 | Android Enterprise Recommended
Processor Qualcomm Snapdragon 450 platform
Band Cellular frequency bands:
4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71
4G LTE TDD: B38, B39, B40, B41
3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz
2G GSM: 850 / 900 / 1800 / 1900 MHz
Memory 3 GB RAM + 32 GB ROM | microSD card up to 128 GB
Display 12.7 cm (5.0″) extreme shock and scratch resistant Gorilla Glass with glove touch and wet mode
Ports • 3.5 mm jack connection with special ecom mounting solution
• 7-pins water-proof magnetic USB 2.0 connector
Dimensions 163 x 82 x 22 mm
Weight approx. 380 g
Dedicated Keys PTT / Alarm / Power / Multifunction / Volume / Hardware buttons for Android features
Connectivity • 4G / LTE -standard (SIM unlocked); LTE Dual SIM; Nano SIM
• WiFi 2.4 Ghz and 5 Ghz support
• WiFi standards 802.11 a/b/g/n/ac/e/k/r/h
• Bluetooth 4.2 incl. BLE (Bluetooth Low Energy)
• GPS / A-GPS / Glonass / Beidou / Galileo
• NFC
Camera 12 MP rear with autofocus and LED flash with flashlight function / 5 MP front (optional)
Battery Replaceable Li-Ion Battery pack with 3.7 V / 4400 mAh / 16.28 Wh
Protection class IP68, MIL-STD-810G

Download

Ecom Smart-Ex 02 DZ1- Explosion Proof Cameras-DpstarGroup
