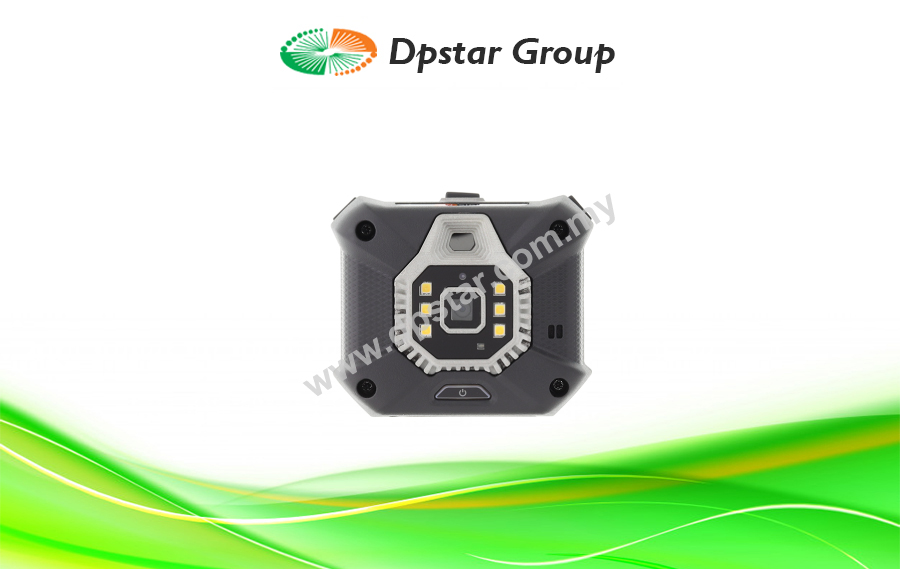

Explosion Proof Cameras – Ecom Cube 800

Features

  • Efficient cooperation with mobile devices such as the Smart-Ex 02
  • Dual camera system with HD optics and thermal imaging technology
  • Remote collaboration with experts via Onsight Connect possible
  • Integrated laser pointer and light ring
  • Multi Use Design: Mount to a helmet or headband for hands-free, attach a monopod, or use handheld for hard to reach areas
  • Record video and store pictures in a central knowledge base
Enquiry
Categories: , , ,
Love0

Designed for safe operation in Ex-certified and rugged environments, the CUBE 800 brings hands-free collaboration to the world’s toughest locations.

Multi-purpose design

With dual camera inside, users can choose optical and thermal camera modes. The integrated thermal imaging camera provides infrastructure health analysis and trending information while the optical camera provides HD video and images. The integrated light ring and laser aiming pointer ensures high quality visuals.

The magnetic auto-latch mount provides an easy and secure way to attach the CUBE 800 to hardhat and headband accessories. Its multi-purpose design allows for hands-free, handheld, and monopod use to capture visuals in hard to reach places.

Specification

Optical performance • 13 MP camera (3 x digital zoom)
• 10 cm to infinity focus range
•  Automatic focus and white balance
•  Integrated LED illumination
• Class 1 laser aiming pointer
Thermal imaging camera • Longwave infrared, 8 … 14 μm
• < 50 mK thermal sensitivity
• Auto flat field correction (FFC)
• Typical measurement accuracy:*
Greater of +/- 5 °C or 5 % where scene temperature = -10 °C … +120 °C
Greater of +/- 10 °C or 10 % where scene temperature = +120 °C … +450 °C
Audio • Built-in omni-directional microphone for ambient sound
• Built-in speaker for CUBE status alerts
Video standard • H.264 / AVC
• HD capture and stream up to 1080 pixel resolution
• Frame rates up to 30fps
Communication • Configuration and live collaboration using Onsight Connect software iOS 11, AndroidTM 5.0 (Lollipop) or higher
• Integrated IEEE 802.11 a/b/g/n
• Dual-band WiFi (2.4 GHz and 5 GHz)
• Bluetooth®
•  4.1 (LE) for pairing to host device
• Direct Wifi connection to the host phone
Media capture and storage • 48 GB onboard storage
• USB cable for file transfer
Security • WLAN network authentication: WPA, WPA2, WPA-PSK, WPA2-PSK, open
• WLAN data encryption: AES, WEP, TKIP, or disabled
• 802.1 x authentication: PEAP
• AES-256 media encryption for file storage
Rugged features • 6-foot drop to concrete at 20 °C
• 75 mm (W) x 64 mm (H) x 50 mm (D)
• IP64
• Weight: 257 g
Operating ambient temperature • Optical camera: -20 °C … +55 °C
• Thermal imaging: -10 °C … +55 °C
Storage temperature  -30 °C … +60 °C (greater than 3 months max. +45 °C)
Humidity (non-condensing) • Short-term storage (up to 3 months) minimum 5 %, maximum 85 %
• Operating minimum 5 %, maximum 95 % RH
Altitude • Storage (12 °C) minimum 0 ft, maximum 15,000 ft
• Operating (27 °C) minimum 0 ft, maximum 10,000 ft
Power • Rechargeable 2200 mAh Li-Ion battery
• 5 V DC, 1.8 A AC adapter
• Charging from any standard USB port
• Magnetic charging connector
• Up to 4 hours of runtime, depending on media and illumination settings

Download

Ecom Cube 800 – Explosion Proof Cameras-DpstarGroup
