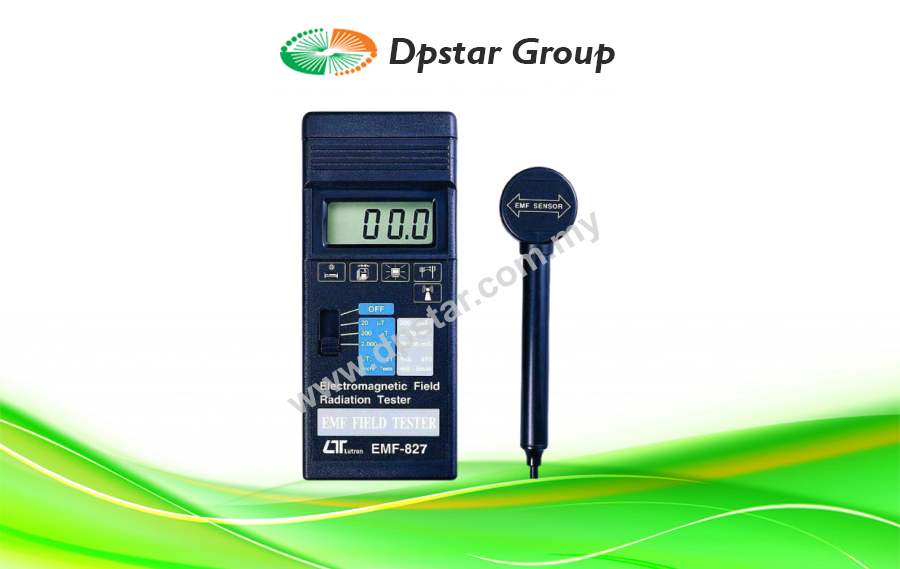

EMF Tester, Separate Probe – Lutron EMF-827

Features

Electromagnetic field tester.
Range : 20/200/2,000 micro Tesla.
- 200/2000/20,000 milli-Gauss.
Separate probe.
Size : 163x70x30 mm.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Electromagnetic Field Testers, EMF Testers (Low Frequency)

EMF Tester, Separate Probe
Model : EMF-827

Electromagnetic field tester.
Range : 20/200/2,000 micro Tesla.
- 200/2000/20,000 milli-Gauss.
Separate probe.
Size : 163x70x30 mm.

Specification

Applications	This EMF tester is specifically designed to determine the magnitude of electromagnetic field radiation generated by power lines, computer’s monitor, TV sets, video machinery and many other similar devices.
Display	13 mm (0.5″) LCD, 3 1/2 digits. Max. indication 199.9.
Range( Tesla )	• 20 micro Tesla x 0.01 micro Tesla • 200 micro Tesla x 0.1 micro Tesla • 2,000 micro Tesla x 1 micro Tesla * 1 micro Tesla = 10 milli Gauss
Range( Gauss )	• 200 milli Gauss x 0.1 milli Gauss • 2,000 milli Gauss x 1 milli Gauss • 20,000 milli Gauss x 10 milli Gauss
Band width	30 Hz to 300 Hz.
Probe Structure	Separate probe with handle.
Number of Axes	Single axis.
Accuracy	• ± (4 % + 3 d) – 20 micro Tesla/200 milli Gauss range. • ± (5 % + 3 d) – 200 micro Tesla/2,000 milli Gauss range. • ± (10 % + 5 d) 2,000 micro Tesla/20,000 milli Gauss range. * Spec. accuracy tested under 50 Hz or 60 Hz.
Over-input	Display shows ” 1 ” .
Sampling Time	Approx. 0.4 second.
Battery	DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent.
Power Current	Approx. DC 2 mA.
Operating Temperature	0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
Operating Humidity	Less than 80% RH.
Weight	215 g/0.48 LB (including battery).
Dimension	• Main instrument : 163 x 68 x 24 mm (6.4 x 2.7 x 0.9 inch). • Probe : 175 x 45 x 22 mm (6.9 x 1.8 x 0.9 inch).
Accessories Included	Operation Manual……………………………………. 1 PC.

Download

Lutron EMF-827 – EMF Tester, Separate Probe-DpstarGroup
