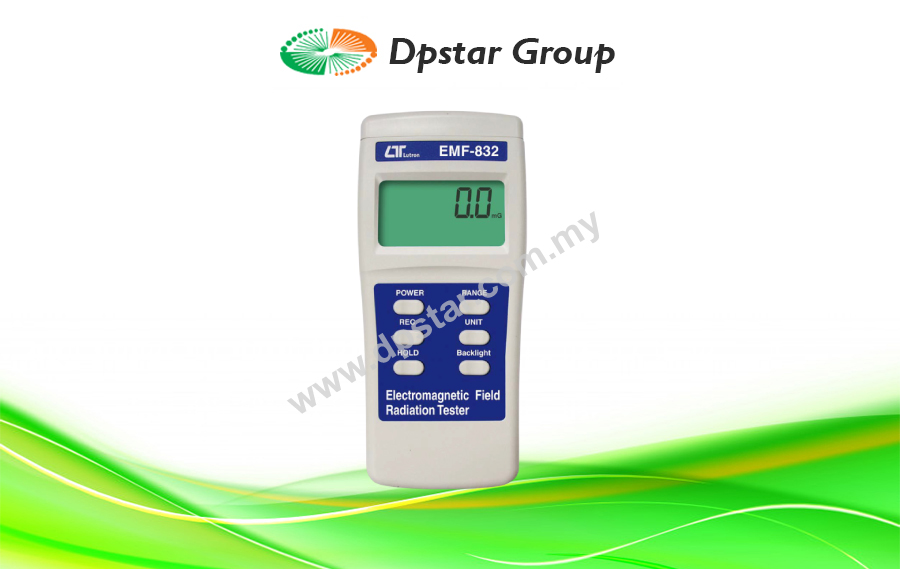

EMF Tester – Lutron EMF-832

Features

  • The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices.
  • Unit : mG (milli-Gauss), micro Tesla.
  • Measurement range :
    • 200 /2,000 /20,000 mG.
    • 20/200/2,000 micro Tesla.
  • EMF Band width 30 Hz to 300 Hz.
  • LCD with green color backlight, easy read on the dark environment.
  • Data hold, auto power off.
  • Power : 006P DC 9V battery.
Enquiry
Categories: , , ,
Love0

EMF Tester
Model : EMF-832

  • The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices.
  • Unit : mG (milli-Gauss), micro Tesla.
  • Measurement range :
    • 200 /2,000 /20,000 mG.
    • 20/200/2,000 micro Tesla.
  • EMF Band width 30 Hz to 300 Hz.
  • LCD with green color backlight, easy read on the dark environment.
  • Data hold, auto power off.
  • Power : 006P DC 9V battery.

Specification

Display • LCD size : 48.8 mm x 25.3 mm.
• LCD is with the backlight installation.
Circuit Custom one-chip of microprocessor LSI circuit.
Measurement EMF ( Electromagnetic field radiation )
EMF Band width 30 Hz to 300 Hz.
Axes no. of EMF Single axis.
EMF Range /Resolution Micro Tesla
• 20 micro Tesla x 0.01 micro Tesla
• 200 micro Tesla x 0.1 micro Tesla
• 2,000 micro Tesla x 1 micro TeslaMili-Gauss :
• 200 mG x 0.1 Mg
• 2,000 mG x 1 mG
• 20,000 mG x 10 mGMG : mili-Gauss
1 micro Tesla = 10 milli-Gauss
Over-input Display shows ‘
Sampling Time Approx. 1 second.
Battery DC 9 V battery (006P, 6F22).
Power Current Approx. DC 5 mA.
• Back light Off.
Operating  Temperature 0 to 50 .
Operating Humidity Less than 80% R.H.
Dimension • 152 x 69 x 36.3 mm
• ( 6.0 x 2.7 x 1.4 inch).
Weight 216 g/0.48 LB.
Accessories Included Operation Manual………………. 1 PC.
Optional Accessories • Soft carrying case, CA-52A
• AC to DC 9V power adapter.

Download

Lutron EMF-832 – EMF Tester-DpstarGroup
