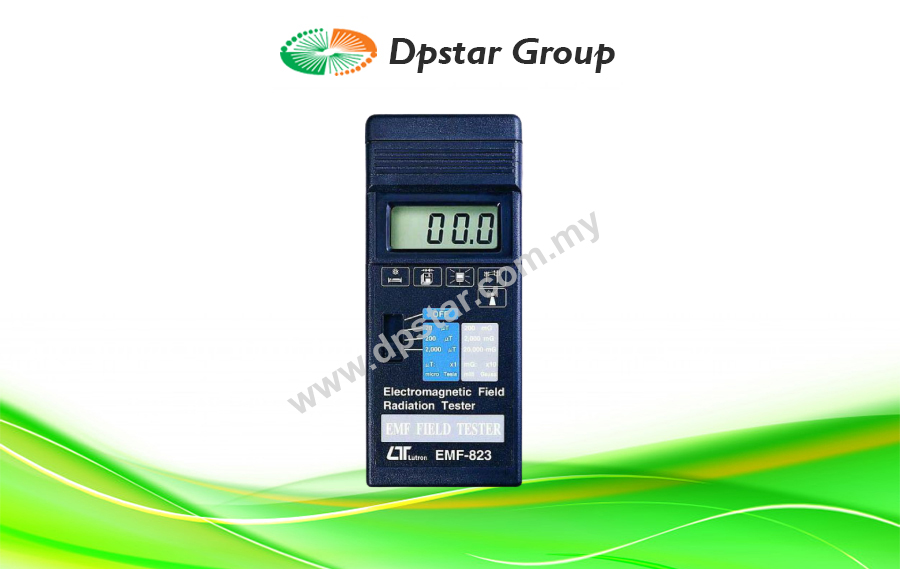

EMF Tester – Lutron EMF-823

Features

Electromagnetic field tester.
Range : 20/200/2,000 micro Tesla.
- 200/2000/20,000 milli-Gauss.
Size : 163 x 70 x 30 mm, 13 mm LCD.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Electromagnetic Field Testers, EMF Testers (Low Frequency)

EMF Tester
Model : EMF-823

Electromagnetic field tester.
Range : 20/200/2,000 micro Tesla.
- 200/2000/20,000 milli-Gauss.
Size : 163 x 70 x 30 mm, 13 mm LCD.

Specification

Display	13 mm (0.5″) LCD, 3 1/2 digits. Max. indication 199.9.
Range( Tesla )	• 20 micro Tesla x 0.01 micro Tesla • 200 micro Tesla x 0.1 micro Tesla • 2,000 micro Tesla x 1 micro Tesla * 1 micro Tesla = 10 milli-Gauss
Range( milli-Gauss )	• 200 milli Gauss x 0.1 milli Gauss • 2,000 milli Gauss x 1 milli Gauss • 20,000 milli Gauss x 10 milli Gauss
Band width	30 Hz to 300 Hz.
Number of Axes	Single axis.
Accuracy	• ± (4 % + 3 d) – 20 micro Tesla/200 milli Gauss range. • ± (5 % + 3 d) – 200 micro Tesla/2,000 milli Gauss range. • ± (10 % + 5 d) – 2,000 micro Tesla/20,000 milli Gauss range. * Spec. accuracy tested under 50 Hz or 60 Hz.
Over-input	Display shows ” 1 ” .
Sampling Time	Approx. 0.4 second.
Battery	DC 9 V battery (006P, 6F22).
Operating Temperature	0 to 50 (32 to 122 ). °C °F
Operating Humidity	Less than 80% RH.
Weight	215 g/0.48 LB (including battery).
Dimension	H.W.D. – 163 x 68 x 24 mm (6.4 x 2.7 x 0.9 inch).
Accessories Included	Operation Manual………………. 1 PC.
