The compact type 521 pressure switch is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded. Switching points set in factory are available both N/C and N/O function. Various electrical and pressure connections are available to suit given applications.

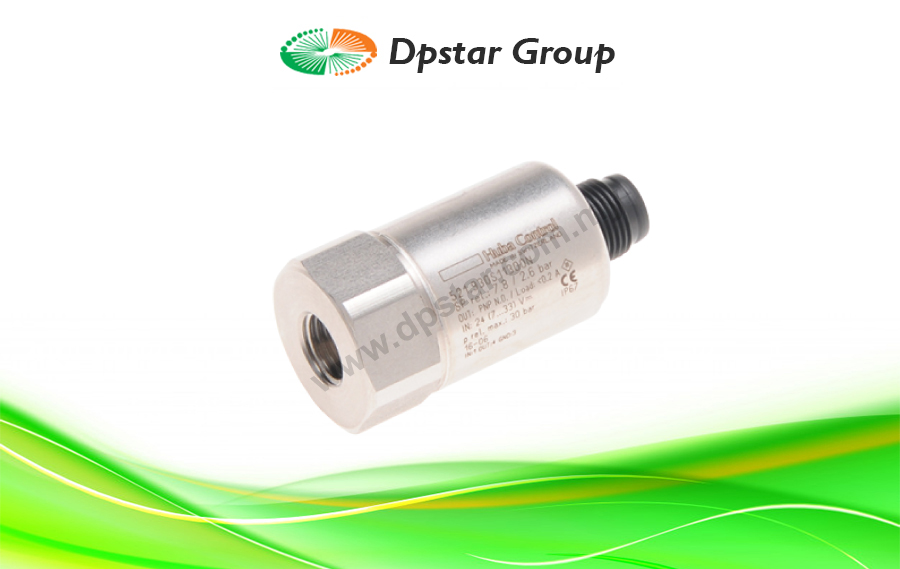

Electronic Pressure Switch – Huba 521 Series
Features
- Compact, rugged construction
- Welded without sealing parts
- Saving time by quick cable mounting by the customer with swift connector
- Large selection of connections available
Specification
| Medium | Liquids and gases |
| Pressure range | 0 … 2.5 – 600 bar |
| Upper switching point | 8 … 100% fs |
| Lower switching point | 5 … 97% fs |
| Accuracy | typ. < 0.3% fs |
| Electrical connection | Swift connector, M12x1 |
| Pressure connection | Inside thread or outside thread |
