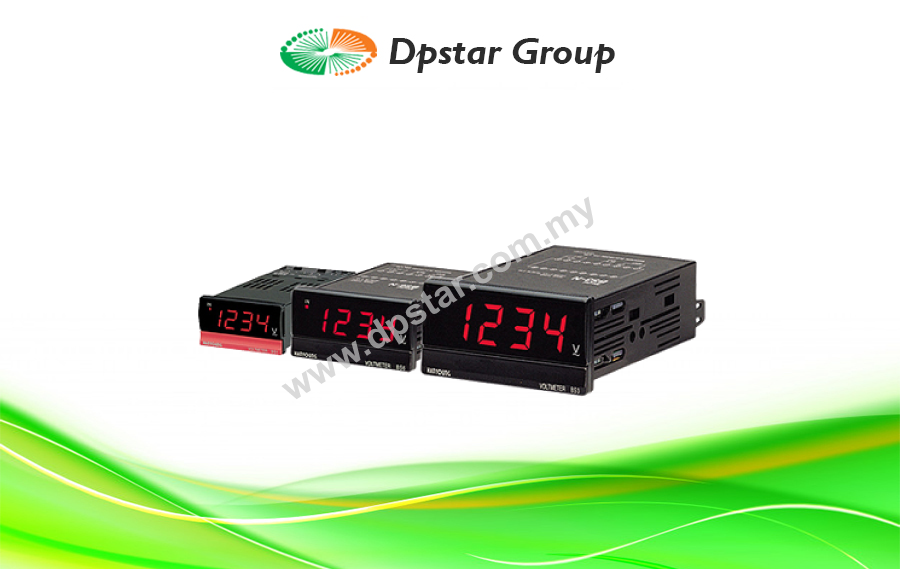

Digital Voltmeter / Ammeter – Hanyoung BS Series

Features

  • Max display 1999
  • Measure average value
  • Bright and clear LED display
Enquiry
Category:
Love0

Digital Panel Meter
Model : BS Series

  • Max display 1999
  • Measure average value
  • Bright and clear LED display

Specification

MODEL BS1 BS6 BS3
Appearance
W x H x D(mm) 48(W) x 24(H) x 100(D) 72(W) x 36(H) x 100(D) 96(W) x 48(H) x 100(D)
Power supply 100-240 Va.c. 50-60㎐ (voltage variation rate
-15 ~ 10%)		 100/220 Va.c. 50-60Hz (voltage variation rate ±10 %)
Display unit V, mV, A, mA,  μA
Max. display range 1999 (3½ Digits)
Input signal AC voltage, AC current, DC voltage, DC current, Instrumentation signal
A/D converter Double Integral Method
Sampling cycle 400 ms 300 ms
Response speed Approx. 3 sec. (Max. range)
Insulation resistance Min. 100 MΩ (at 500 V.D.C.) between external terminal and case
Dielectric strength 1500Va.c. for 1 min between external terminal and case 1500Va.c. for 1 min between external terminal and case
Vibration Mechanical Durability 10 – 55 Hz each direction for 1 hour
Malfunction Resistance 10 – 55 Hz each direction for 10 minutes
Shock Mechanical Durability 300 m/²s X·Y·Z each direction 3 times (Approx. 30G)
Malfunction Resistance 100 m/²s X·Y·Z each direction 3 times (Approx. 10G)
Ambient Temp. & Humidity 0～50 ℃/ 35～85 %RH -10～55 ℃/ 35～85 %RH

[Measuring Range Code]

● AC Voltage Measurement

Model AC
Voltage		 Range
Code		 Measuring
Range		 Resolution Input
Impedance		 Max Permissible
Input Voltage
BS3 NA10 1 1.999 V 1 mV 1 kΩ 10 V
2 19.99 V 10 mV 100 MΩ 50 V
3 199.9 V 100 mV 10 MΩ 300 V
4 400 V 1 V 10 MΩ 500 V
BS6 NA10 1 199.9 mV 1 mV 1 kΩ 10 V
2 1.999 V 1 mV 1 kΩ 10 V
3 19.99 V 10 mV 100 MΩ 50 V
4 199.9 V 100 mV 10 MΩ 300 V
5 400 V 1 V 10 MΩ 500 V

● AC Current Measurement

Model AC
Current		 Range
Code		 Measuring
Range		 Resolution Input
Impedance		 Max Permissible
Input Current
BS3
BS6		 NA20 1 19.99 mA 10 µA 10 Ω 50 mA
2 199.9 mA 100 µA 1 Ω 300 mA
3 1.999 A 1 mA 0.1 Ω 3 A
4 5.00 A 10 mA 40 mΩ 5 A
5 19.99 A 10 mA Use current transformer (CT)
(Secondary Current 5A)
6 30.0 A 100 mA
7 100.0 A 100 mA
8 150.0 A 100 mA
9 199.9 A 100 mA
10 300 A 1 A
11 1999 A 1 A

● DC Voltage Measurement

Model DC
Current		 Range
Code		 Measuring
Range		 Resolution Input
Impedance		 Max Permissible
Input Voltage
BS3
BS6		 ND10 1 199.9 mV 0.1 mV 470 Ω 70 V
2 1.999 V 1 mV 100 kΩ 100 V
3 19.99 V 10 mV 1 MΩ 200 V
4 199.9 V 100 mV 10 MΩ 300 V
5 500 V 1 V 10 MΩ 400 V

● DC Current Measurement

Model DC
Current		 Range
Code		 Measuring
Range		 Resolution Input
Impedance		 Max Permissible
Input Current
BS3 ND20 1 1.999 mA 1 µA 100 Ω 50 mA
2 19.99 mA 10 µA 10 Ω 150 mA
3 199.9 mA 100 µA 1 Ω 300 mA
4 1.999 A 1 mA 0.1 Ω 3 A
BS6 ND20 1 199.9 mA 1 µA 100 Ω 50 mA
2 1.999 mA 10 µA 10 Ω 150 mA
3 19.99 mA 100 µA 1 Ω 300 mA
4 199.9 A 1 mA 0.1 Ω 3 A
BS3
BS6		 ND20 5 5.00 A 10 mA 40 MΩ 5 A
6 19.99 A 100 mA Use shunt (Secondary
Voltage 50 mV (standard))
7 199.9 A 100 mA
8 1999 A 1 A

● DC Voltage Input scale Display

Model DC
Current		 Range
Code		 Input
Range		 Display
Range		 Input
Impedance		 Max Permissible
Input Voltage
BS3
BS6		 ND11 1 1 – 5 Vd.c. 50.0 500 kΩ 100 V
2 100.0 500 kΩ 100 V
3 199.9 500 kΩ 100 V

● DC Current Input scale Display

Model DC
Current		 Range
Code		 Measuring
Range		 Display
Range		 Input
Impedance		 Max Permissible
Input Current
BS3
BS6		 ND21 1 4 – 20 mA d.c. 50.0 25 Ω 150 mA
2 100.0 50 Ω 150 mA
3 199.9 500 Ω 150 mA

Ordering Code

Model Suffix code Information
BS Digital Panelmeter
Appearance 6 72 X 36 mm
3 96 X 48 mm
1 48 X 24 mm
Output N Display only
Input type A 10 AC Voltage input
20 AC Current input
D 10 DC Voltage input
20 DC Current input
11 DC Voltage input (1-5Vd.c.)
21 DC Current input (4-20mA d.c.)
Measurement range 1 Refer to the measurement range code : BS3-NA101 (1.999 V)

※ Mode: range code of BS6 and BS3 are different
