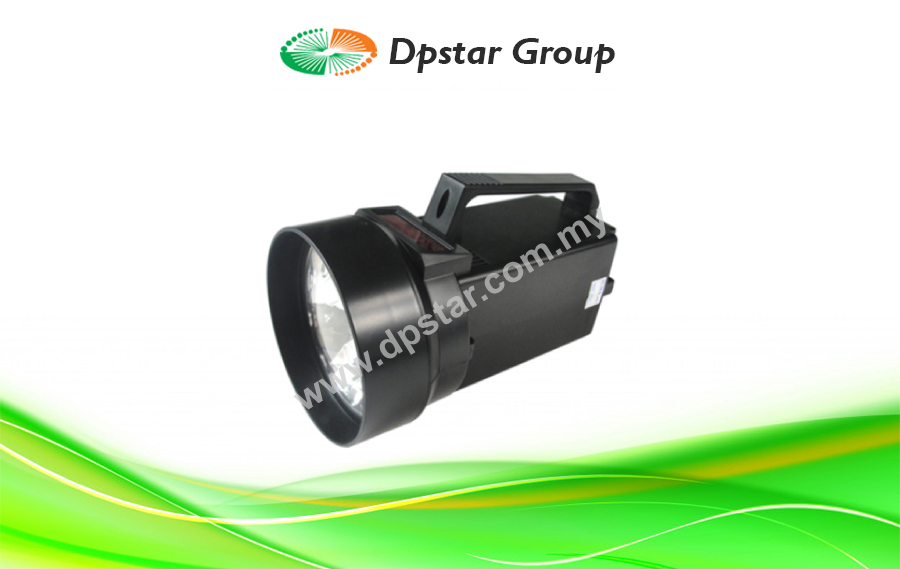

Digital Stroboscope – Lutron DT-2239A-1

Specification

Display	0.3″ LED, 4 digits.
Stroboscopic Flash Rate	100 to 10,000 flashes per minute (FPM).
Accuracy	• 100 to 5,000 FPM/RPM) – ± 1 digit. • Over 5000 FPM/RPM – ± 0.05% .
Resolution	• Less than 10,000 FPM/RPM – 1 FPM/RPM. • Over 10,000 FPM/RPM – 10FPM/RPM
Sampling Time	1 second.
Range Select	Automation.
Circuit	This stroboscope/tachometer employs an custom one-chip of microcomputer LSI circuit & crystal control time base which results in extraordinary accuracy over a wide, dynamic range.
Power Supply	• 110 Vac 10%, 50/60 Hz. Or • 220 Vac 10%, 50/60 Hz Or • 230 Vac 10%, 50/60 Hz.
Power Consumption	Less than 30 Watt.
Operating Temp.	0 to 50 ℃ (32 to 122 ℉).
Operating Humidity	Less than 80% R.H.
Weight	1Kg/2.2 LB.
Dimension	HWD • – 21 x 12 x 12 cm • (8.3×4.8×4.8 inch).
Housing	Compact and impact plastic injection case with plastic mirror type reflector.
Calibration	Crystal time base and microprocessor circuit, don’t necessary take any external calibration process.
Accessories Included	Operation manual……… 1 PC.
