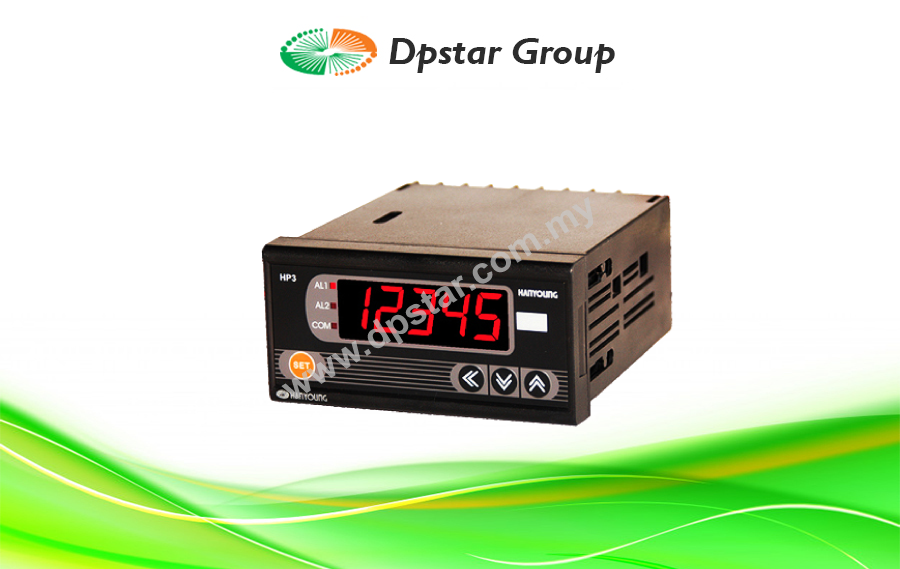

Digital Scale Meter - Hanyoung Nux HP3

Specification

Power supply voltage	100 – 240 V a.c, 50 – 60 Hz (allowable voltage fluctuation : ±10 %)
Input	Input contact : 1 Channel Input specification : 4 – 20 mA, 1 – 5 V (Different input contact) Accuracy : ±0.03 % of F.S Sampling cycle : 500 ms Input Compensation : -100 ~ 100 % of F.S, Input Filter : 0 ~ 100 s
Alarm output	Output contact : 1C x 2 contacts (AL1, AL2) Capacity of Contact : 5 A 240 V a.c, (5 A 30 V d.c) Resolving power : 125 ms Hysteresis : 0 ~ 10 % of F.S
Retransmission output	Output contact : 1 contacts Output range : 4 – 20 mA d.c Load resistance : 600 Ω max Accuracy : ±0.1 µA Resolving power : 2,600
Insulation resistance	100 MΩ (500 V .d.c)
Dielectric strength	2300 V a.c, 50 Hz / 60 Hz for 1 min
Operating ambient	Temperature : -5 ~ 50 ℃ Humidity : 20 ~ 90 % R.H. (With no condensation)
Storage ambient	Temperature : -25 ~ 70 ℃ Humidity : 5 ~ 95 % R.H. (With no condensation)
