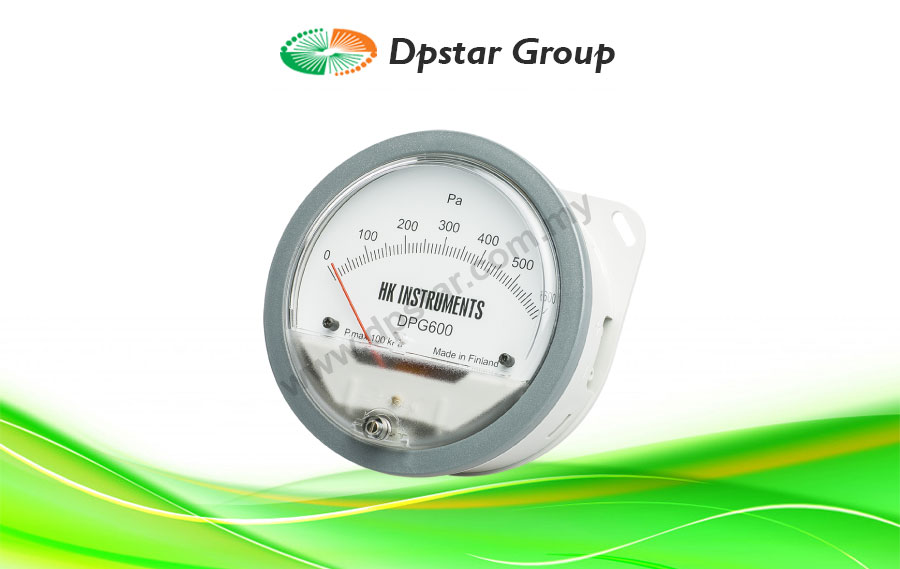

Differential Pressure Gauge – HK Instruments DPG Series

Feature

The DPG series differential pressure gauges are engineered for HVAC/R applications. The DPG series devices detect air and non-corrosive gas pressures (differential and positive) and provide a clear analog display of the measured values.

Enquiry
Category:
Love0

The DPG is a standard pressure gauge for measuring overpressure and differential pressure.

The DPG series differential pressure gauges are engineered for HVAC/R applications. The DPG series devices detect air and non-corrosive gas pressures (differential and positive) and provide a clear analog display of the measured values. The DPG series devices include field adjustable zero point calibration and overpressure protection.

Applications

DPG series devices are commonly used in HVAC/R systems for:

  • Fan, blower and filter monitoring
  • Pressure and flow monitoring
  • Monitoring static pressure

Specification

Accuracy (from FS) < ±2 % (DPG60 < ±4 % ; DPG100 < ±3 %)
Operating temperature -5…+60 °C
Zero-point adjustment screw external in the plastic cover
Mounting surface mounting or flush mounting
Mounting position vertical
Measuring air flow special flow scales available separately, easy to install on-site
Model Product code Measurement range (Pa)
Differential pressure
DPG60 106.001.001 0–60 Pa
DPG100 106.002.001 0–100 Pa
DPG120 106.003.001 0–120 Pa
DPG200 106.004.001 0–200 Pa
DPG250 106.005.001 0–250 Pa
DPG300 106.006.001 0–300 Pa
DPG400 106.022.001 0–400 Pa
DPG500 106.007.001 0–500 Pa
DPG600 106.008.001 0–600 Pa
DPG800 106.009.001 0–800 Pa
DPG1k 106.010.001 0–1 kPa
DPG1,5k 106.011.001 0–1.5 kPa
DPG2k 106.012.001 0–2 kPa
DPG3k 106.013.001 0–3 kPa
DPG5k 106.014.001 0–5 kPa

Download

HK Instruments DPG Series Differential Pressure Gauge-DpstarGroup
