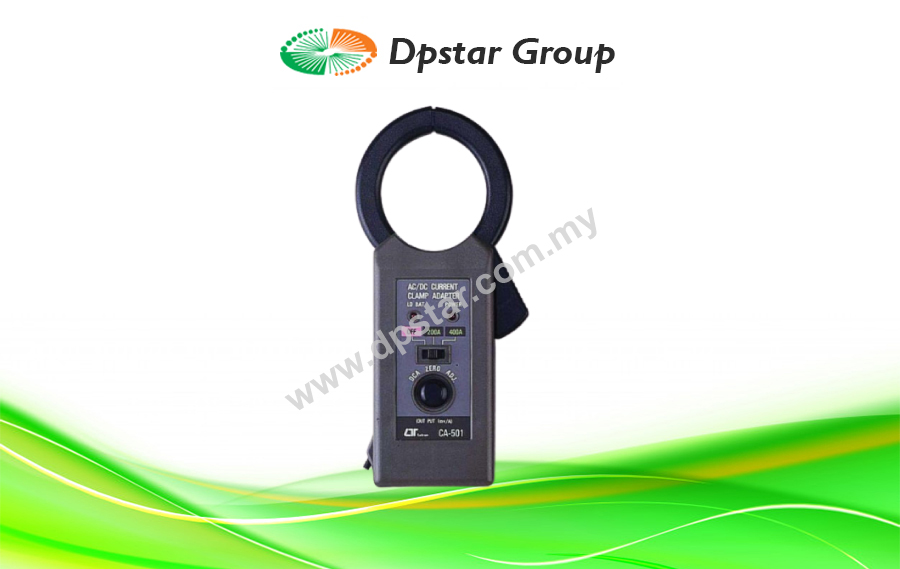

DCA/ACA Current Adapter – Lutron CA-501

Specification

Range	ACA • 0 to 400 ACA, • 2 ranges ( 200 ACA, 400 ACA ).DCA • 0 to 400 DCA, • 2 ranges ( 200 DCA, 400 DCA ).
Output	ACA • 1 AC mV per 1 ACA.DCA • 1 DC mV per 1 DCA.
Accuracy	ACA • 200 A : ± ( 2 % + 2 mV ) • 400 A : ± ( 2 % + 2 mV )DCA • 200 A : ± ( 2 % + 2 mV ) • 400 A : ± ( 2 % + 2 mV )
Frequency Response	• ACA frequency resp onse is from 40 to 400 Hz, • Specification be test ed on sine wave 50/60 Hz.
Sensor	Hall effect sensor.
DCA Zero Adjustment	External knob, ad j. limited within approx.( 30 to 50 DCA ).
Safety Standard	Meet IEC 1010.
Battery	006P, MN1604 ( PP3 ) DC 9V battery or quivalent, recommend use the alkaline or e heavy duty battery.
Power Consumption	Approx. 15 mA.
Operating Temperature	0 to 50°C ( 32 to 122 )°F.
Operating Humidity	Less than 80% RH.
Dimension	200 x 80 x 30 mm ( 7.9 x 3.2 x 1.2 mm ).
Weight	255 g/0.56 lb ( including battery ).
Accessories Included	Operation manual…………………………………1 PC.
