Copper Instrumentation Cable | PVC Insulated Wire – TEW&C UP/ALM/ALPZCPETWK

Individual and Overall Shield

TE Wire & Cable Copper Instrumentation Cables are designed for use in NEC Article 725 Class 1 Division 2 Hazardous Location and comply with NEC 725 for use in Class 2 and Class 2 Circuits. TPE insulation option available.  Cables with up to 50 pairs and continuous lengths of 5000-10,000 FT are possible. TE Wire & Cable conductor sizes, insulations, and jackets can be mixed and matched to custom design a cable for a specific application.

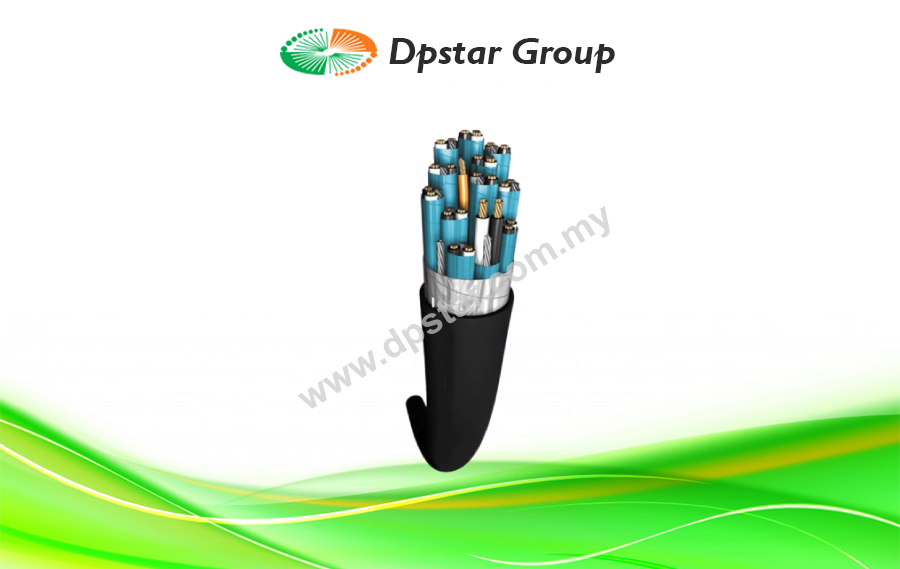

PVC twisted individual and overall shielded instrumentation cable is ideal for systems sensitive to induced voltage and electrical noise. The twisting of the conductor and the Aluminum/polyester taper shield provides protection against cross talk, static, and magnetic noise in instrumentation circuits. Conductors are insulated with color-coded PVC, then twisted and shielded with individual tin/copper drain wire. Next, an Aluminum Mylar tape is wrapped around the wires with a tin/copper drain wire, followed by a final layer of overall PVC jacket. The wire is UL listed for Power Limited Tray Cable (PLTC) 300V applications.

Applications

• New Plant Constructions
• Utilities and Industrial Plants
• Petrochemical Plants
• Testing Rig set up
• Instrumentation Circuits
• For use in NEC Article 725 Class 1 Division 2 Hazardous Locations
• Complies with NEC 725 for use in Class 2 and Class 3 Circuits

Available Options

• Metal Overbraid
• SWA Armor (20 AWG & larger)
• Metal Bond Continuous Barrier
• Sunlight Resistant
• Passes IEEE 383 Flame Test
• Passes VW-1 Flame Test
• Available as type ITC
• CPE and TPE Constructions are also available
• Special Color Codes
