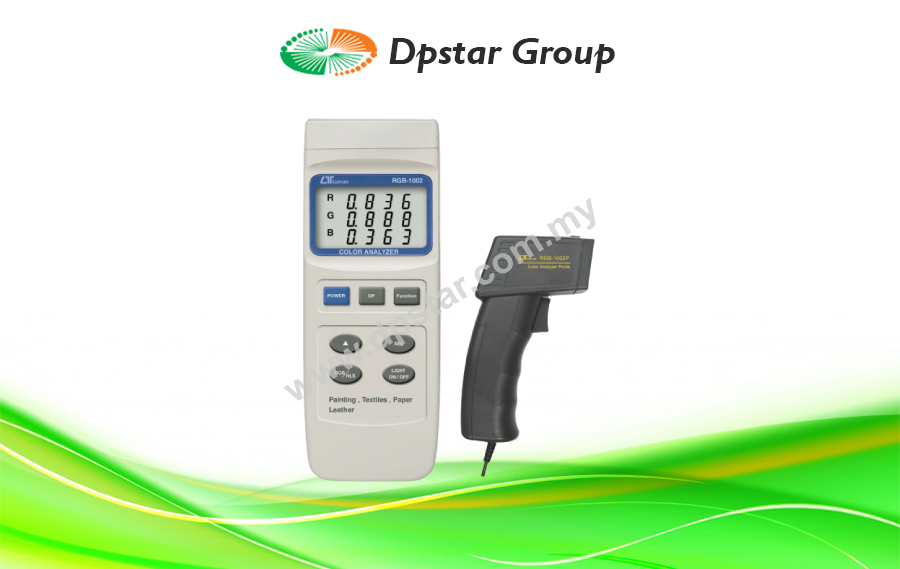

Color Analyzer, Probe + Meter, RS232 – Lutron RGB-1002

Features

  • Measuring sample : no lighting sample(textiles, paper, leathers…).
  • Measurement value : RGB value, HSL value (Hue/Saturation/Luminance).
  • R (Red) value : 0 to 1023.
  • G (Green) value : 0 to 1023.
  • B (Blue) value : 0 to 1023.
  • 45° /0° color measuring geometry.
  • Used the spectral analysis method to determine the color of the sample.
  • Complete set included the color probe and the meter, show RGB or HSL value at same time.
  • RS232 computer interface.
  • Power : 006P DC 9V battery.
  • Meter size : 203 x 76 x 38 mm.
Enquiry
Categories: , , ,
Love0

Series Color Analyzer
Color Analyzer, Probe + Meter, RS232
Model : RGB-1002

  • Measuring sample : no lighting sample(textiles, paper, leathers…).
  • Measurement value : RGB value, HSL value (Hue/Saturation/Luminance).
  • R (Red) value : 0 to 1023.
  • G (Green) value : 0 to 1023.
  • B (Blue) value : 0 to 1023.
  • 45° /0° color measuring geometry.
  • Used the spectral analysis method to determine the color of the sample.
  • Complete set included the color probe and the meter, show RGB or HSL value at same time.
  • RS232 computer interface.
  • Power : 006P DC 9V battery.
  • Meter size : 203 x 76 x 38 mm.

Specification

Display  LCD size : 59 mm x 34 mm.
Measuring geometry 45° /0° – circular illumination at 45° , measurement at 0° .
Spectral range  400 nm to 700 nm.
Light source Two white LED lamp.
Measuring principle For no lighting sample color measurement such as textiles, paper, leathers, painting materials……,
a defined light source illuminates the sample and the reflected surface light is spectrometrically analyzed.• For lighting sample color measurement, the light source of sample is spectrometrically analyzed directly.
Color sensors  • 3 color photo transistors :
• Red photo transistor
• Green photo transistor
• Blue photo transistor
Calibration  Self calibration.
• The calibration white calibration card is included.
Measurement RGB value
•  R ( Red ) value : 0 to 1023
• G ( Green ) value : 0 to 1023.
• B ( Blue ) value : 0 to 1023.HSL value
•  Hue value : 0 to 1.000
• Saturation value : 0 to 1.000
• Luminance value : 0 to 1.000.
Repeatability • R (Red) value < 3
• G (Green) value < 3
• B (Blue) value < 3
• B (Blue) value < 3
•  Saturation value < 0.01
•  Luminance value < 0.01* Repeatability is specified under the same sample tested 10 times within two minutes.
* Accuracy is specified under after the instrument is calibrated.
Measurement sample material type  • Type 1 : No lighting sample material : Such as textiles, paper, leathers…
• Type 2 : Lighting sample material : Such as CRT, LCD monitor, LED lamp, lighting lamp…..The RGB-1002 is designed mainly for measuring the color value of type 1 ( no lighting sample ). For the type 2 ( lighting sample ) color measurement just for the reference only.
Power off Auto shut off saves battery life or manual off by push button.
• Power will off automatically after 3 min., if no buttons be pressed.
Buttons  • OP button ( Operation button
• CAL button ( Calibration button )
• REL button ( Relative button )
• RGB/HSL button (Select RGB or HSL value )Light ON/OFF button
• No lighting sample measurement, elect the sensor light to on
• Lighting sample measurement, elect the sensor light to off.
Low battery  Low battery indicator.
Computer interface RS 232 PC serial interface.
Operating Temperature 0 to 50 ( 32 to 122 ).
Operating Humidity Less than 80% RH.
Power Supply  • DC 9V battery, Alkaline type 006P, MN1604(PP3) or equivalent.
• DC 9V adapter input. @ AC/DC power adapter is optional.
Power Current  • Standby : Approx. DC 6.3 mA.
• Measurement : Approx. DC 32 mA. ( 2 SEC. )
Weight 478 g/ 1.05 LB
• Main instrument and the sensor probe
Dimension  • Main instrument : 203 x 76 x 38 mm
• Sensor probe : 160x92x45 mm
Accessories Included  • Instruction manual…………………… 1 PC.
• Sensor probe ( RGB-1002P )………. 1 PC.
• White color calibration card……….. 1 PC.
• Carrying case, CA-06………………… 1 PC.
Optional Accessories  • AC to DC 9V adapter.
• RS232 cable, UPCB-02.
• USB cable, USB-01.
• Data Acquisition software,
• SW-U801-WIN.
