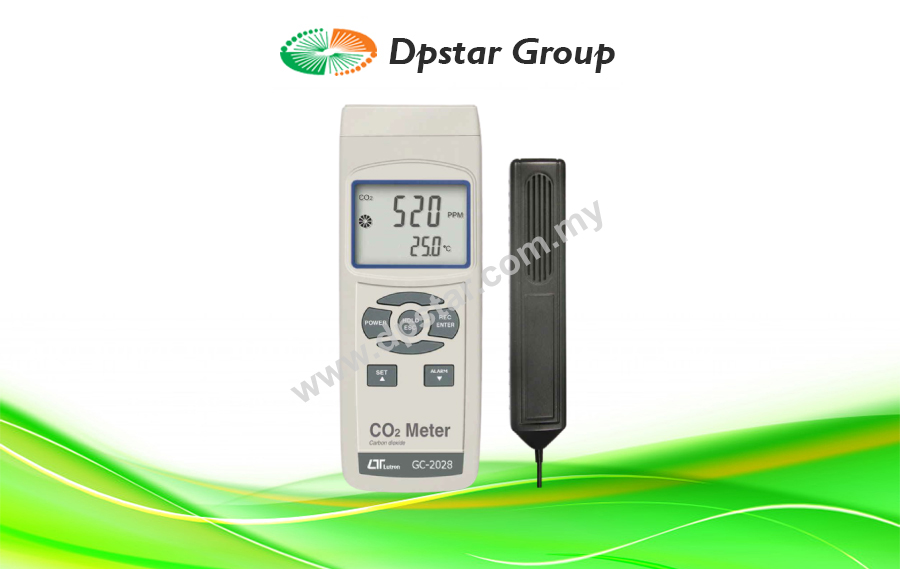

CO2 (Carbon Dioxide) Meter – Lutron GC-2028

Features

  • CO2 range : 0 to 4,000 ppm.
  • CO2 sensor : NDIR, long term reliability.
  • CO2 with alarm setting.
  • Function : CO2 (Carbon dioxide), Dew point, Temperature.
  • Data hold, Record (Max., Min.).
  • RS232/USB computer interface.
Enquiry
Categories: , , ,
Love0

CO2 Meter, Temperature.
Model: GC-2028

  • CO2 range : 0 to 4,000 ppm.
  • CO2 sensor : NDIR, long term reliability.
  • CO2 with alarm setting.
  • Function : CO2 (Carbon dioxide), Dew point, Temperature.
  • Data hold, Record (Max., Min.).
  • RS232/USB computer interface.

Specifications

Circuit Custom one-chip of microprocessor LSI
Display LCD size : 52 mm x 38 mm dual function LCD display.
Measurement CO2 ( Carbon dioxide ), Temp.
Unit ppm
Response Time < 2 min. typically
• @ Reach the 63% reading value
• @ Depend the environment air circulation.
CO2 altitude compensation setting 0 to 9,000 meters.
Temperature Compensation Automatic temp. compensation.
Adavanced setting • CO2 altitude value setting
• CO2 alarrm value setting
• °C°F setting
• Auto power off enable/disable setting
Alarm setting For CO2 measurement only.
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
Display Sampling Time Approx. 1 second.
Power off Auto shut off saves battery life or manual off by push button.
Data Output RS 232/USB PC serial interface.

• Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.

• Connect the optional USB cable
USB-01 will get the USB plug.
Operating Temperature 0 to 50 °C,
Operating Humidity • Main instrument : Less than 85% R.H.
• C02 probe : Less than 85% R.H.
Power Supply DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
Power Current • Approx. DC 9.6 mA for 90% period.
• Approx. DC 128 mA for 10% period.
Weight • Main instrument : 372 g/0.82 LB.
@ Battery is included.• CO2 probe : 158 g/0.35 LB.
Dimension Main instrument :
• 173 x 68 x 42 mm
• (7.9 x 2.7x 1.2 inch)CO2 Probe :
• 185 x 38 x 26 mm
Accessories Included • Instruction manual…………………..1 PC
• CO2 probe……………………………..1 PC
• Hard Carrying case………………….. 1 PC
Optional Accessories • RS232 cable, UPCB-02
• USB cable, USB-01
• Data Acquisition software, SW-U801-WIN
