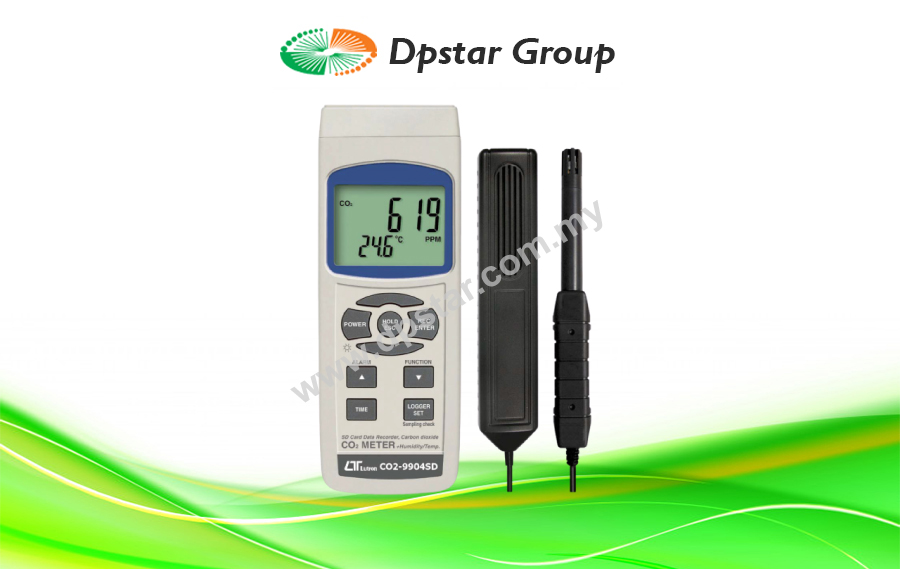

CO2 (Carbon Dioxide) Meter – Lutron CO2-9904SD

Features

  • Real time recorder, save the data into the SD memory card and can be downloaded to the Excel, extra software is no need.
  • Measurement : CO2 (Carbon dioxide), Humidity, Dew point, temperature.
  • CO2 range : 0 to 6,000 ppm x 1 ppm.
  • Humidity range: 10 to 95 %RH.
  • Dew point : -25.3 to 48.9 oC, oC/oF.
  • Temp. range : 0 to 50.0 oC, oC/oF.
  • CO2 sensor : NDIR, long term reliability.
  • Humidity sensor : Precision capacitance sensor.
  • Alarm setting with the beeper sound output.
  • Sampling time for data recorder is 2 seconds to 8 hours.
  • 2 probes : CO2 and Humidity probe.
  • Hard carrying case is included
  • Can use 2 GB to 16 GB SD card (optional).
  • RS232/USB computer interface.
  • Patented.
Enquiry
Categories: , , , ,
Love0

SD Card Real Time Recorder, 6000 PPM
CO2 METER, + Humidity/Temperature
Model : CO2-9904SD

  • Real time recorder, save the data into the SD memory card and can be downloaded to the Excel, extra software is no need.
  • Measurement : CO2 (Carbon dioxide), Humidity, Dew point, temperature.
  • CO2 range : 0 to 6,000 ppm x 1 ppm.
  • Humidity range: 10 to 95 %RH.
  • Dew point : -25.3 to 48.9 oC, oC/oF.
  • Temp. range : 0 to 50.0 oC, oC/oF.
  • CO2 sensor : NDIR, long term reliability.
  • Humidity sensor : Precision capacitance sensor.
  • Alarm setting with the beeper sound output.
  • Sampling time for data recorder is 2 seconds to 8 hours.
  • 2 probes : CO2 and Humidity probe.
  • Hard carrying case is included
  • Can use 2 GB to 16 GB SD card (optional).
  • RS232/USB computer interface.
  • Patented.

Specifications

Circuit Custom one-chip of microprocessor LSI circuit.
Display • LCD size : 52 mm x 38 mm
• LCD with green backlight ( ON/OFF ).
Measurement • CO2 (Carbon dioxide )
• Humidity
• Dew point Temp.,
• Wet bulb Temp.
• Temperature
Sensor structure CO2 NDIR
* Nondispersive infrared sensorHumidity Temp.
• Precision capacitance sensor
• Precision thermistorAuto
• 2 sec to 8 hour 59 min. 59 sec.
* Sampling time can set to 1 second, but memory data may loss.but memory data may loss.Manual
• Push the data logger button
• once will save data one time.
* Set the sampling time to 0 second.
* Manual mode, can also select the  1 to 99 position ( Location ) no.
Data error no. 0.1% of total saved data max.
Memory Card SD memory card. 1 GB to 16 GB.
Data Hold Freeze the display reading
Memory Recall Maximum & Minimum value.
Sampling Time of Display Approx. 1 second.
Data Output RS 232/USB PC computer interface.
• Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.• Connect the optional USB cable
USB-01 will get the USB plug.
Power Supply • lkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
• DC 9V adapter input. ( AC/DC power adapter is optional ).
Power Current CO2 measure-ment
• Normal operation ( w/o SD card save data and LCD Backlight is OFF) :
Approx. DC 136.5 Ma
• When SD card save the data and LCD Backlight is OFF) :
Approx. DC 166 mAHumidity measure-ment
• Normal operation ( w/o SD card save data and LCD Backlight is OFF) :
Approx. DC 10.5 mA.
• When SD card save the data and LCD Backlight is OFF) :
Approx. DC 40 mA* If LCD backlight on, the power consumption will increase approx. 12 mA.
Advanced  setting
@ main setting		 • SD memory card Format
•  Set clock time
•  Set sampling time
•  Auto power OFF management
•  Decimal point of SD card setting
•  Temp. unit setting
•  Alarm value setting
•  Set beep Sound ON/OFF
Operating  Temperature 0 to 50°C. ( 32 to 122° F ).
Operating Humidity Less than 80% R.H.
Weight 350 g/0.77 LB.
Dimension Meter
177 x 68 x 45 mmHumidity probe
197 mm in length.CO2 probe
190 x 38 x 28 mm
Accessories Included • Instruction manual…………………………1 PC
• Hard carrying case, CA-08………………..1 PC
• CO2 probe…………………………………….1 PC
• Humidity probe………………………………1 PC
Optional Accessories • SD memory card ( 2 GB ).
• AC to DC 9V adapter.
• USB cable, USB-01.
• RS232 cable, UPCB-02.
• Data Acqui sition software, SW-U801-WIN.
