Ceramic fiber board is a lightweight refractory material processed with alumina-silica fibres for applications at temperatures up to 1400°C. Ceramic Fibre board is a vacuum formed product that resists hifher gas velocities than ceramic fibre blanket.It is ideal for furnace,boiler duct and stack lining due to its low thermal conductivity and low heat storage allowing shorter cycle times and quicker access for maintenance.

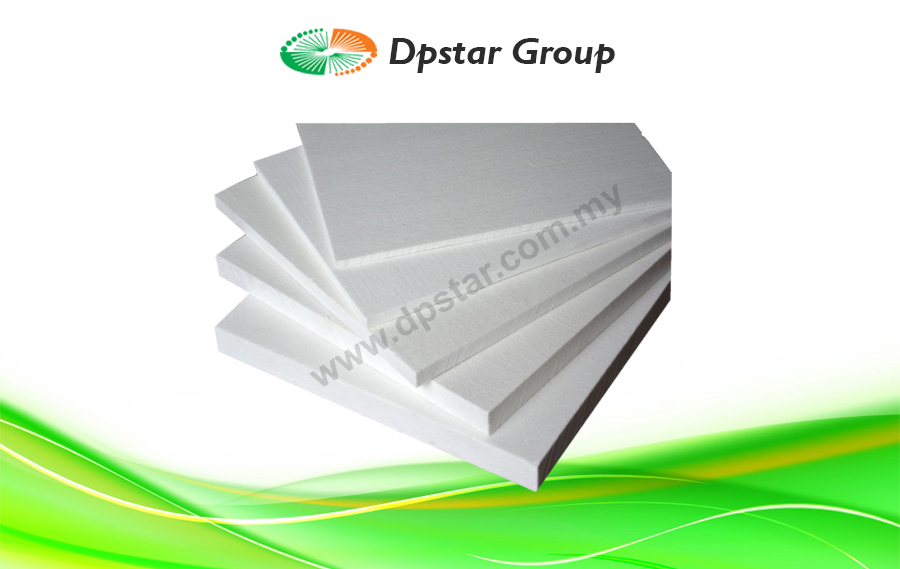

Ceramic Fiber board – Texfibre
Features
- Low thermal conductivity
- Low heat storage
- Light weight
- Excellent thermal shock resistance
- Resistance to hot gas erosion
- Resists most chemical attacks
- Easy to cut,handle and install
- Low sound transmission
- Resists penetration by molten aluminium and other non-ferrous metals
- Asbestos free
- Standard: IEC 60675
Specification
| Name | Ceramic fiber machine-process board | ||
| Classification Temperature | 1260 | 11427 | 1427 |
| Code | TX-1260B | TX-1427B | TX-1538B |
| Shrinkage on heating (%) | 1000°C x 24h ≤ -3 | 1350°C x 24h ≤ -3 | 1400°C x 24h ≤ -3 |
| Thermal Conductivity (W/m.k) (Mean temperature: 500⁰C) |
≤ 0.153 | ≤ 0.153 | ≤ 0.153 |
| Dampish rate (%) | ≤ 1 | ≤ 1 | ≤ 1 |
| Organic Content (%) | ≤ 5 | ≤ 5 | ≤ 5 |
| Density (kg/m³) | 300 | 300 | 350 |
| Dimension | 25mm(THK) x 900mm(L) x 600mm(W) | ||
| 50mm(THK) x 900mm(L) x 600mm(W) | |||
| Standard | IEC 60675 | ||
