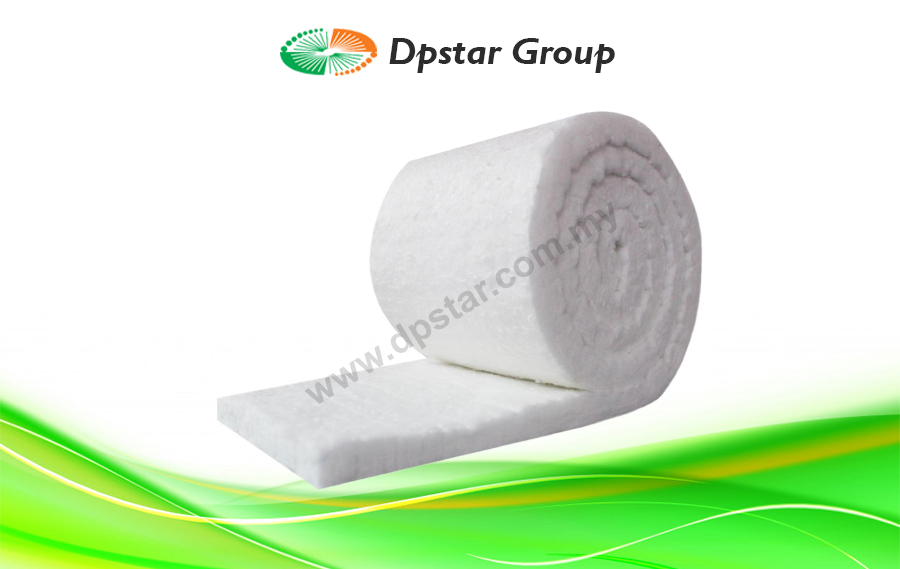

Ceramic Fiber Blanket – Texfibre

Features

  • High tensile strength
  • Low shrinkage
  • Excellent hot strength
  • High resiliency
  • Low thermal conductivity
  • Low heat storage
  • Resistance to thermal shock
  • Good sound absorption
  • High heat reflectance
  • Standard: IEC 60675
Enquiry

Texfibre ceramic fiber blanket are manufactured from refractory ceramic fibres and provide effective solutions to a wide spectrum of thermal management problems. Utilizing our proprietry high output blowing and spinning techniques these products offer superior insulating performance, flexibility and resilience.

Texfibre ceramic fiber blanket products are unaffected by most chemicals (except hydrofluoric & phosphoric acids and concentrated alkalis).Thermal and physical properties are retained after drying following wetting by oil, steam or water. Texfibre ceramic fibre blanket products are completely inorganic, so there are no fumes when heating for the first time.Available in a variety of chemistry, density and thickness combinations, Texfibre ceramic blanket range is one of the most versatile available to the market today.

Specification

Name Ceramic fiber machine-process board
Classification Temperature 1140 1260 1427
Code TX-1140T TX-1260T TX-1427T
Shrinkage on heating (%) 950⁰C x 24h ≤ -3 1000⁰C x 24h ≤ -3 1350⁰C x 24h ≤ -3
Thermal Conductivity
(W/m.k) (128kg/m³)
(Mean temperature: 500⁰C)
≤ 0.153 ≤ 0.153 ≤ 0.153
Theoretical Density (kg/m³) 96 96/128 128
Tensile Strength
(25mm thick) Mpa
0.06 0.06 0.06
Dimension 25mm(THK) x 7320mm(L) x 610mm(W)
50mm(THK) x 3600mm(L) x 610mm(W)
Standard IEC 60675

Download

Texfibre Ceramic Fiber Blanket-DpstarGroup
