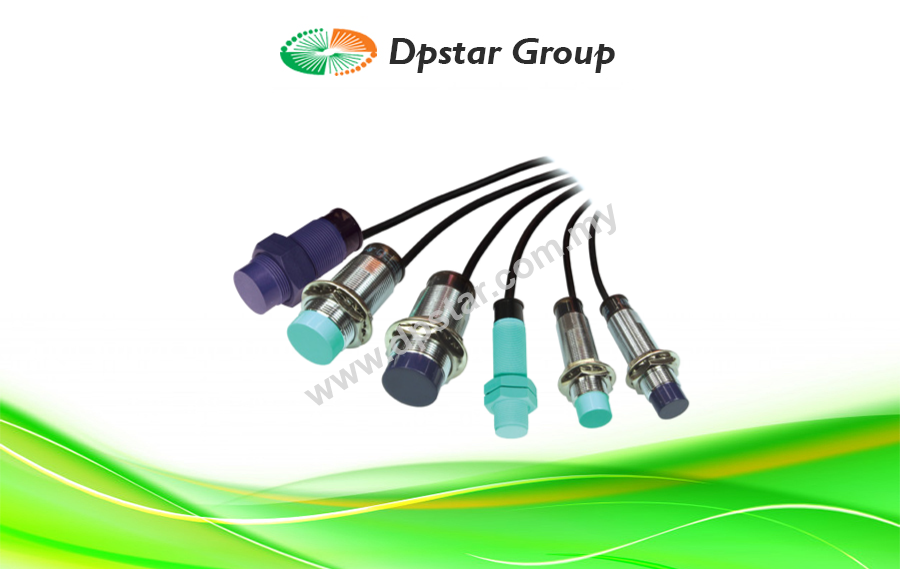

Capacitive Type Proximity Sensor – Hanyoung Nux CUP

Features

Noise resistant reinforced circuit
Leakage current less than 2 mA
Operating Voltage 12-24Vd.c., 20-240Va.c./d.c.

Category: Proximity Sensors

Capacitive Type Proximity Sensor
Model : CUP

Noise resistant reinforced circuit
Leakage current less than 2 mA
Operating Voltage 12-24Vd.c., 20-240Va.c./d.c.

Specification

Capacitive D.C 3 Wire type

Model	NPN	CUP-18R-8N	CUP-18RP-8N	CUP-30R-15N	CUP-30RP-15N
	PNP	CUP-18R-8P	CUP-18RP-8P	CUP-30R-15P	CUP-30RP-15P
	Size	M18		M30
Shield		None shield		None shield
Standard sensing object(mm)		Iron 50 X 50 X 1 (Grounded state)
Sensing distance		8 mm (Volume variation)		15 mm (Volume variation)
Setting distance		0 ~ 6.4 mm		0 ~ 12 mm
Hysteresis		Less than 20 % of sensing distance
Response frequency		100 Hz
Power supply voltage		12-24Vd.c. (Usable voltage range10-30Vd.c.)
Control output		Open/Close capacitance: 200mA Max. (Resistive load), Residual voltage: Max 1.5 V
Current consumption		Max 10mA
Operation indication		Red LED
Protective circuit		Power reversely connected protective circuit, surge protective circuit and over current protective circuitare built in.
connection structure		Cable type(Standard cable length 2 m), Relay Connector type, Connector type
Material		CUP-18R/CUP-30R (Case: brass chrome plating, sensing surface:PBT resin), CUP-18RP/CUP-30RP (Case and sensing surface one body type: PBT resin)
Weight	Cable type	approx. 70g		approx. 120g
	Connector type	approx. 30g		approx. 80g

Capacitive D.C/A.C dual usage 2 wire type

Model	For A.C	CUP-18R-8F	CUP-18RP-8F	CUP-30R-15F	CUP-30RP-15F
	Size	M18		M30
Shield		None shield		None shield
Standard sensing object(mm)		Iron 50 X 50 X 1 (Grounded state)
Sensing distance		8 mm (Volume variation)		15 mm (Volume variation)
Setting distance		0 ~ 6.4 mm		0 ~ 12 mm
Hysteresis		Less than 20% of sensing distance
Response frequency		100 Hz
Power supply voltage		20-240Va.c./d.c. (Usable voltage range 10-250Va.c./d.c.)
Control output		Open/Close capacitance : 5-250mA Max. (Resistive load), Residual voltage :Max 7Va.c./d.c.
Leakage Current		Max 2mA
Operation indication		Red LED
Protective circuit		Surge protective circuit built in.
connection structure		Cable type(Standard cable length 2 m), Relay Connector type, Connector type
Case		Brass(Chrome plating)	PBT resin	Brass (Chrome plating)	PBT resin
Material		CUP-18R/CUP-30R (Case: brass chrome plating, sensing surface: PBT resin), CUP-18RP/CUP-30RP (Case and sensing surface one body type: PBT resin)
Weight	Cable type	approx. 70g		approx. 120g
	Connector type	approx. 30g		approx. 80g

Ordering Code

Model	Code						Information
CUP-		–					Capacitive type proximity sensor
Sensing area size	18						M18
Sensing area size	30						M30
Structure type		R					Round type (Brass chrome plating case)
Structure type		RP					Round type (plastic case)
Sensing distance			8				8 mm(Only with CUP-18□-8)
Sensing distance			15				15 mm(Only with CUP-30□-15)
Power and Output type				N			D.C NPN output
				P			D.C PNP output
				F			A.C/D.C 2 wire type(dual usage)(No polarity)
Output state					A		Normal Open(N.O)
Output state					C		Normal Close(N.C)
connection structure						*	No indication (Cable type)
connection structure						CR	Relay connector type
