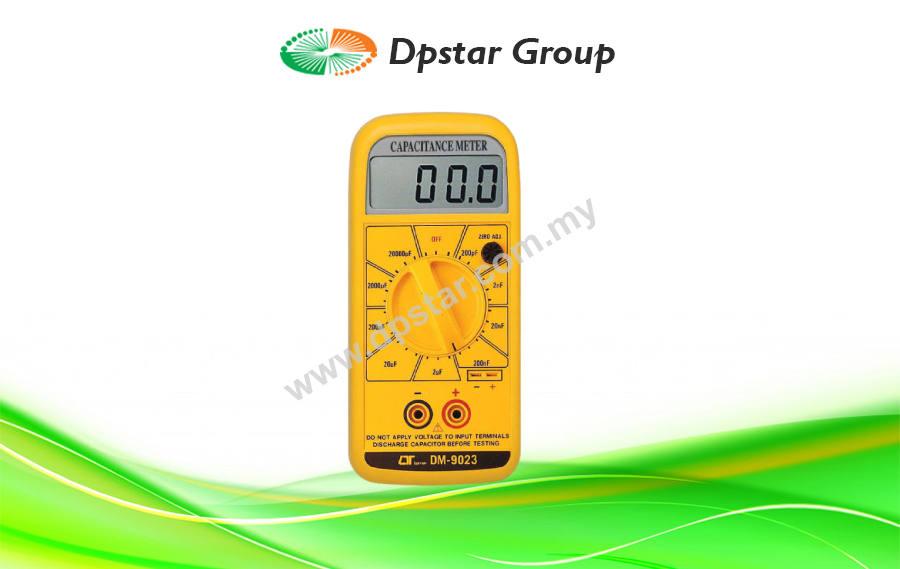

Capacitance Meters – Lutron DM-9023

Features

  • 9 ranges, 200pF, 2nF, 20nF, 200nF, 2uF, 20uF, 200uF, 2000uF, 20000uF(x10).
  • Rotary switch, 18 mm LCD, Max. 1999.
  • Size : 185 x 87 x 39 mm.
Enquiry
Categories: , , ,
Love0

Capacitance Meter
MODEL : DM-9023

  • 9 ranges, 200pF, 2nF, 20nF, 200nF, 2uF, 20uF, 200uF, 2000uF, 20000uF(x10).
  • Rotary switch, 18 mm LCD, Max. 1999.
  • Size : 185 x 87 x 39 mm.

Specification

Display 18 mm (0.7″) LCD (Liquid Crystal Display),
Max. indication 1999.
Range 9 Ranges with full scale values from 200 pF to 20,000 uF..
Overload Indication Indication of ” 1″
Zero adjust: • Front panel Adjustment control.
• This is limited to approx. 20 pF.
Out-of-Range indication Indication of ” 1″ .
Sampling rate 0.5 second .
Operating Temperature 0 to 50°C (32 to 122 )°F.
Operating Humidity Less than 80% RH.
Power Supply DC 9V battery.
Battery Life Approximately 200 hours on alkaline or 100 hours on carbon zinc battery with normal usage. (Typical consumption current 3 to 4 mA on 200 pF to 200 uF range).
Dimension 185 x 87 x 39 mm (7.3 x 3.4 x 1.5 inch).
Weight: 290 g/0.64 LB (including battery).
Standard Accessories • Test alligator clips (red & black 1 Pair
• Spare Fuse (0.2A) ……………… 1 PC
• Instruction Manual……………..1 PC.
