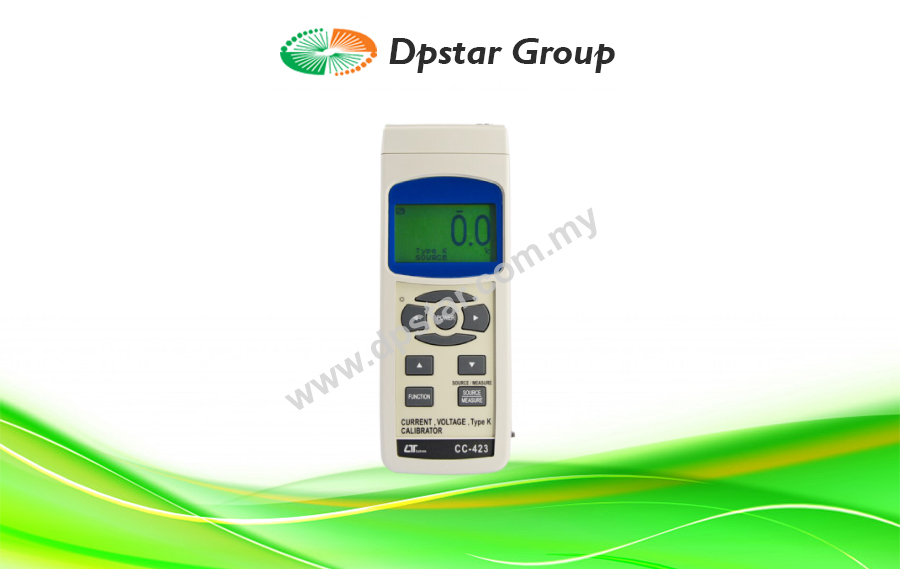

Calibrator, Simulator, Checker, Black body – Lutron CC-423

Current, Voltage, Type K Calibrator
Model : CC-423

• Current Calibrator:
  1. Current source: 0 to 24 Ma
  2. Current measurement : 0 to 24 mA.
  3. Power ( 12V ) and current measurement of two wires loop.
  4. Resolution : 0.01 mA.
• Voltage Calibrator: – DC mV source: -199.9 mV to +199.9 mV.
  1. Type K Calibrator:
  2. Type K thermocouple calibrator.
  3. Type K Thermocouple thermometer.
  4. -199 °C to 1230 °C , -325 °F to 2246 °F.
  5. °C/°F, Resolution : 0.1 degree.
• Power : – 1.5V ( UM-3/AA ) battery x 6 PCs or DC 9V adapter in.
• Housing case with tripod fix nut structure.
• Optional type K Temp. probes : – TP-01, TP-02A , TP-03, TP-04, TP-05.
