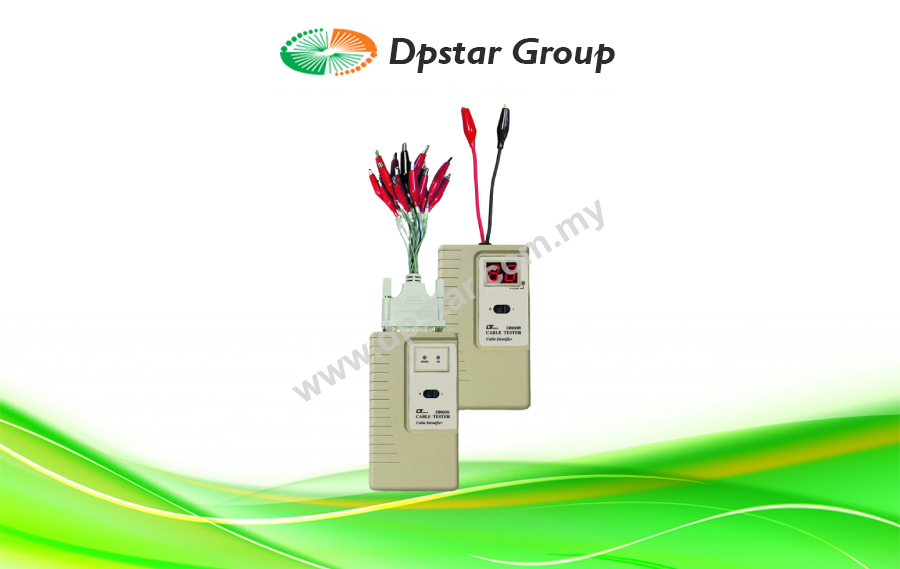

Cable Tester/Cable Identifier – Lutron CB-933

Features

Transmitter & receiver Included.
To identify & trace up to 16 cables. It can also be connected to heat and water supplying installation system.
Digital display on the receiver indicates the relative cable.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Cable Checker/Cable Identifier

Cable Tester/Cable Identifier
Model : CB-933

Transmitter & receiver Included.
To identify & trace up to 16 cables. It can also be connected to heat and water supplying installation system.
Digital display on the receiver indicates the relative cable.

Specification

Transmitter	Display	Two red LED lamps.
	Power	• DC 9V battery, Alkaline type, • 006P, MN1604 ( PP3) or equivalent.
	Power current	2 mA.
	Alligators	17 alligators, green x 16, black x 1 .
	Dimensions	125 x 70 x 26.5 mm ( 4.9 x 2.8 x 1.0 inch).
	Weight	Approx. 355 g/0.77 LB.
	Housing	High impact ABS plastic.
Receiver	Display	14 mm seven segment LED, 2 digits, one red LED lamp.
	Power	• DC 9V battery, Alkaline type, • 006P, MN1604 ( PP3) or equivalent.
	Power current	33 mA.
	Alligators	2 alligators, red x 1, black x 1.
	Dimensions	125 x 70 x 26.5 mm ( 4.9 x 2.8 x 1.0 inch).
	Weight	Approx. 355 g/0.77 LB.
	Housing	High impact ABS plastic.
Cable resistance	25 K ohm, max.
Accessories	• Transmitter with 17 cables & alligators …………………………………….1 PC. • Receiver with 2 cables & alligators …………………………………………..1 PC. • Operation manual x 1 PC………………………………………………………….1PC.
Applications	To identify & trace up 16 cores in multi-way cable. It ca n also be connected to heating and the water supply installation system for this purpose.
