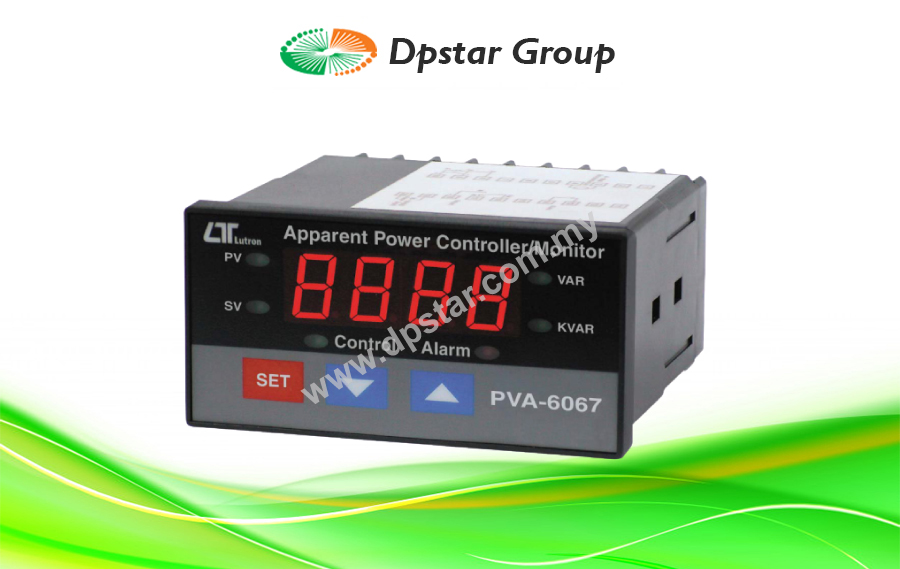

Apparent Power Controller/Monitor – Lutron PVA-6067

Measurement range (no cooperate with the external CT and the PT) :
True rms for VA measurement.
Current input can cooperate with the external CT (current transformer) such as CT 1000/5A, CT 100/5A …to expend the measurement range. The CT range can be adjusted with default.
Voltage input can cooperate with the external PT (voltage transformer) to expend the measurement range. The PT range can be adjusted with default.
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Power : 90 ACV to 264 ACV, 50/60 Hz.
RS232/USB computer interface.

Enquiry

Measurement range (no cooperate with the external CT and the PT) :
1. VA : 0 to 6,000 VA.
2. ACV : 0 to 600 ACV, 40 to 400 Hz.
3. ACA : 0 to 10 A, 40 to 400 Hz.
True rms for VA measurement.
Current input can cooperate with the external CT (current　transformer) such as CT 1000/5A, CT 100/5A …to expend the measurement range. The CT range can be adjusted with default.
Voltage input can cooperate with the external PT (voltage transformer) to expend the measurement range. The PT range can be adjusted with default.
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Power : 90 ACV to 264 ACV, 50/60 Hz.
RS232/USB computer interface.

Specification
