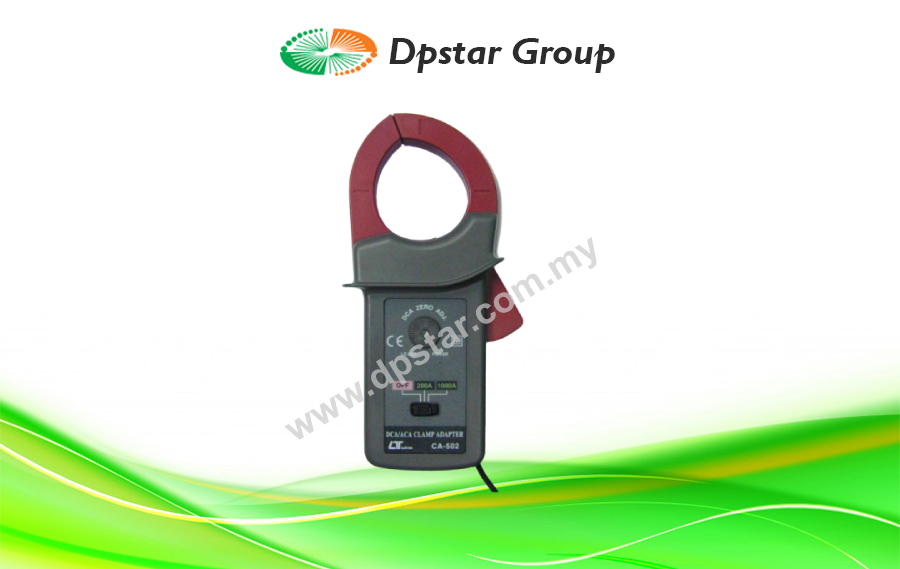

Adapters For DMMs & Clamps – Lutron CA-502

Specification

Range	ACA • 0 to 1,000 ACA, • 2ranges ( 200 ACA, 1,000 ACA ).DCA • 0 to 1,000 DCA, • 2 ranges ( 200 DCA, 1,000 DCA ).
Output	• ACA 1 AC mV per 1 ACA. • DCA 1 DC mV per 1 DCA.
Accuracy	ACA • 200 A ± ( 1.5 % + 1 AC mV ) • 1,000 A ± ( 2 % + 0.5 AC mV )DCA • 200 A ± ( 1.5 % + 1 DC mV ) • 1,000 A ± ( 2 % + 0.5 DC mV )
Frequency Response	ACA frequency response is from 40 to 400 Hz, specification be tested on sine wave 50/60 Hz.
Sensor	Hall effect sensor.
DCA Zero Adjustment	External knob, adj. limited within approx. ( 30 to 50 DCA ).
Safety Standard	Meet IEC 1010.
Battery	006P, MN1604 ( PP3 ) DC 9V battery or equivalent, recommend use the alkaline or heavy duty battery.
Power Consumption	Approx. 15 mA.
Operating Temperature	0 to 50 °C ( 32 to 122 ).°F
Operating Humidity	Less than 80% RH.
Dimension	• Meter : 190 x 64 x 33 mm ( 7.5 x 2.5 x 1.3 inch ) • Jaw : 78 mm ( 3.1 inch ) – outside.
Weight	345 g/0.76 LB ( with battery ).
Accessories Included	Operation manual……………………………………………………………… 1 PC.
