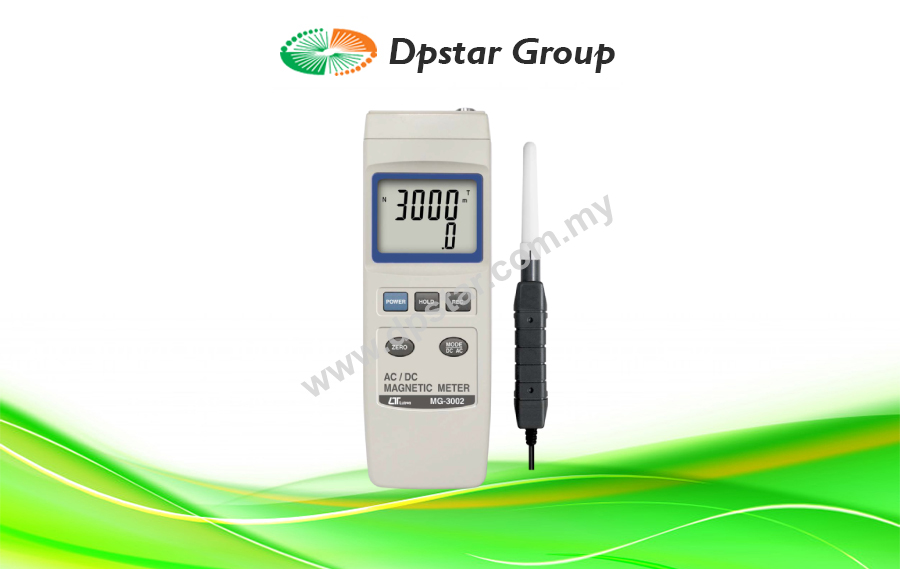

AC/DC Magnetic Meter – Lutron MG-3002

Features

  • Wide range, general purpose magnetic measurement.
  • Unit : G (Gauss), mT (milli Tesla).
  • DC/AC magnetic measurement.
  • DC Range : 300.00 mT/3000.0 mT.
  • AC Range : 150.00 mT/1500.0 mT.
  • Resolution : 0.01 mT/0.1 mT, 0.1 G/1 G.
  • DC polarity : N/S.
  • Sensor : Hall sensor.
  • Zero, Data hold. Record (Max., Min.).
  • RS232/USB computer interface.
  • DC 9V battery (006 P) x 1 PC or DC 9V adapter.
Enquiry
Categories: , , ,
Love0

Wide Range, General Purpose
AC/DC Magnetic Meter
Model : MG-3002

  • Wide range, general purpose magnetic measurement.
  • Unit : G (Gauss), mT (milli Tesla).
  • DC/AC magnetic measurement.
  • DC Range : 300.00 mT/3000.0 mT.
  • AC Range : 150.00 mT/1500.0 mT.
  • Resolution : 0.01 mT/0.1 mT, 0.1 G/1 G.
  • DC polarity : N/S.
  • Sensor : Hall sensor.
  • Zero, Data hold. Record (Max., Min.).
  • RS232/USB computer interface.
  • DC 9V battery (006 P) x 1 PC or DC 9V adapter.

Specification

Circuit Custom one-chip of microprocessor LSI circuit.
Display • LCD size : 52 mm x 38 mm
• Dual function LCD display.
Measurement Unit •  MT  : milli Tesla
•  G : Gauss
Measurement
Range, DC		 MT
• Range 1 : 300.00 mT x 0.01 mT
• Range 2 : 3,000.0 mT x 0.1 mTG
• Range 1 : 3,000.0 G x 0.1 G
• Range 2 : 30,000 G x 1 G
Measurement
Range, AC		 MT
• Range 1 : 150.00 mT x 0.01mT
• Range 2 : 1,500.0 mT x 0.1mTG
• Range 1 : 1,500.0 G x 0.1 G
• Range 2 : 15,000 G x 1 G
Sensor Hall sensor.
Field Direction Uniaxial.
Accuracy • DC ± ( 5 % rdg. + 10 digit )
• AC ± ( 5 % rdg. + 20 digit )
Frequency Response AC measurement : 50 Hz / 60 Hz
Temp.
Compensation for hall sensor		 Probe head build the Temp. sensor  f
or useing the ATC ( automatical Temp. compensatioon )
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
Display Sampling Time Approx. 1 second
Power off Manual off by push button or Auto shut off to save battery life
Data Output RS 232/USB PC serial interface
• Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.• Connect the optional USB cable
USB-01 will get the USB plug.
Operating  Temperature 0 to 50 °C.
Operating Humidity Less than 85% R.H.
Power Supply • 006P DC 9V battery
( Alkaline or Heavy duty type )• DC 9V adapter input.
* AC/DC power adapter is optional
Power Current Approx. DC 20.5 mA .
Weight •  Approx. 270 g/0.60 LB.
•  ( include battery & probe )
Dimension • Main instrument :
200 x 68 x 30 mm
( 7.9 x 2.7 x 1.2 inch ).• Probe :
18 x 25 x 19 mm
( 7.8 x 1.0 x 0.7 inch ).
Accessories Included • Instruction manual…………………………….. 1 PC
• Magnetic Probe……………………………….. 1 PC
• Hard Carrying case, CA-06………………. 1 PC
Optiona Accessories • RS232 cable, UPCB-02
• USB cable, USB-01
• Data Acquisition software : SW-U801-WIN, SW-E802
