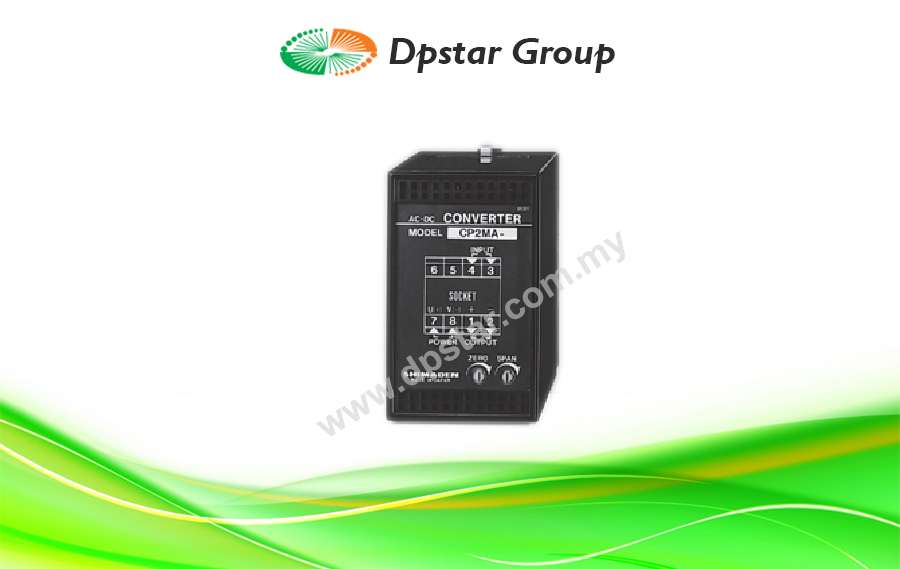

AC-DC Converter – Shimaden CP2MA Series

It converts the true execution value of the AC signal into a DC signal and outputs it. Isolation for input/output is provided as standard feature. 6 toxic substances, which are subject to RoHS regulations, are contained. However, the amount of toxic substances contained does not exceed standardized values.

Enquiry
Category:
Love0

It converts the true execution value of the AC signal into a DC signal and outputs it. Isolation for input/output is provided as standard feature. 6 toxic substances, which are subject to RoHS regulations, are contained. However, the amount of toxic substances contained does not exceed standardized values.

Specification

Input AC voltage / current (Refer to “Ordering Information”.)
Output DC voltage / current (Refer to “Ordering Information”.)
Conversion Method Root mean square (RMS) operation
Conversion Accuracy ±1% FS (at 23 °C)
Influence of ambient temperature ± 0.3% FS for temperature change of 10 °C
Response Time 500 msec. max. (0–90%)
Repeatability ±0.1% of input range
Output Ripple ±0.5% FS
Operation Frequency Zone Commercial frequency
Conversion Output Adjustment Range ±4% FS (ZERO and SPAN)

Ordering Information

ITEMS CODE SPECIFICATIONS
SERIES CP2MA-   AC-DC Converter
INPUT 01   0–110V AC / FS Input Loss: 0.5VA max.
02   0–150V AC / FS
03   0–220V AC / FS
04   0–250V AC / FS
21   0–1A AC / FS
22   0–5A AC / FS
99   Others (Please consult before ordering.)
CONVERSION OUTPUT 1   0–10mV DC / FS Output Resistance: 5Ω
2   0–100mV DC / FS Output Resistance: 50Ω
3   0–1V DC / FS Max. Current: 2mA
4   0–10V DC / FS Max. Current: 2mA
5   1–5V DC / FS Max. Current: 2mA
6   4–20mA DC / FS Load Resistance: 600Ω max.
9   Others (Please consult before ordering.)
POWER SUPPLY 02-   24V DC±10%
13-   100–110V AC±10% 50/60Hz
14-   110–120V AC±10% 50/60Hz
15-   200–220V AC±10% 50/60Hz
16-   220–240V AC±10% 50/60Hz
99-   Others (Please consult before ordering.)
REMARKS 0   Without
9   With (Please consult before ordering.)
