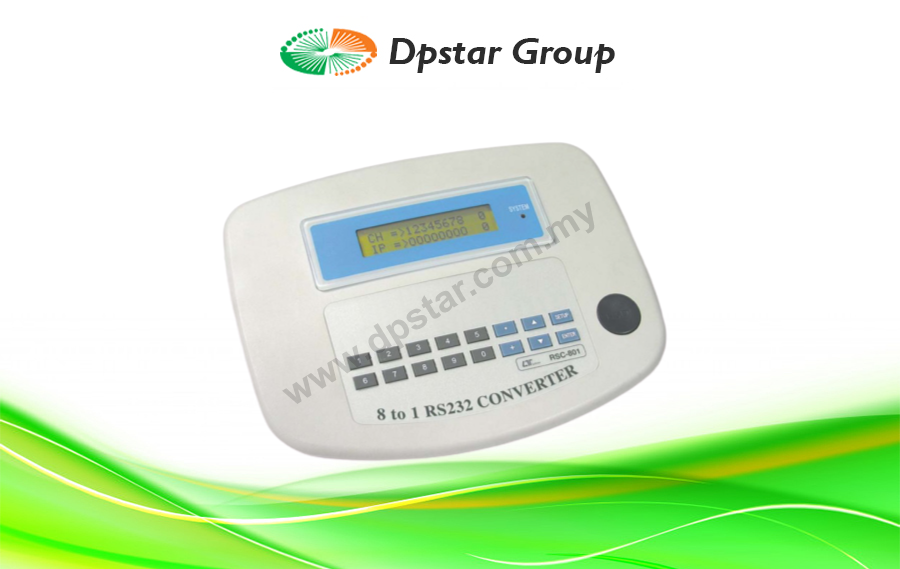

8 to 1 RS232 Converter – Lutron RSC-801

Features

It can connect the LUTRON’s RS232 instruments (max. 8 meters), then convert all meters’ RS232 signal to one RS232 output.
It is the useful tool, when apply the software SW-U801-WIN, SW-808, SW-818 (internet/intranet software) can expand the system and accept more meters input.
The interface cable between the meter and the RSC-801 is the GMCB-89.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, RS-232 Converter Controller/Monitor

8 to 1 RS232 COnverter
Model : RSC-801

It can connect the LUTRON’s RS232 instruments (max. 8 meters), then convert all meters’ RS232 signal to one RS232 output.
It is the useful tool, when apply the software SW-U801-WIN, SW-808, SW-818 (internet/intranet software) can expand the system and accept more meters input.
The interface cable between the meter and the RSC-801 is the GMCB-89.

Specification

Display	Dot-matrix LCD with back light 16 characters x 2 line.
Input/Output	• RSC-801 can connect the LUTRON’s • RS232 instruments ( max. 8 meters ), then convert 8meters’ RS232 signal to one RS232 output.
Operating Temperature	0 to 50 ℃ ( 32 to 122℉ )
Operating Humidity	Less than 80% RH.
Power supply	DC 9V.
Power consumption	Less than 160 mA DC.
Size	• 193 x 149 x 46 mm. • ( 7.6 x 5.9 x 1.8 inch ).
Weight	592 g ( 1.3 LB ).
Accessories includes	• Power adapter………………………….. .1.. .P..C.. • Instruction manual……………………. 1 PC
Accessories optional	• Input interface cable, GMCB-89 • Output RS232 cable, UPCB-02 • Output USB cable, USB-01
