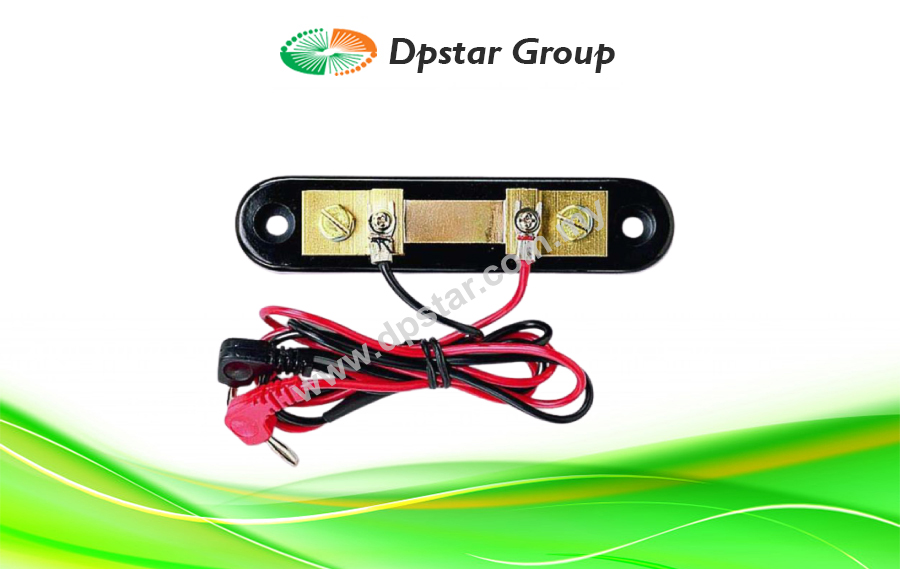

50A/50mA Shunt – Lutron ST-50

Features

Resistance shunt match DMM DC 200 mV range to measure current up to DC/AC 50A precisely.
Output – 1 ACmV/1 ACA, 1 DCmV/1 DCA.
Size : 135 x 30 x 30 mm.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Car Testers, Automotive Testers

50A/50mA Shunt
Model : ST-50

Resistance shunt match DMM DC 200 mV range to measure current up to DC/AC 50A precisely.
Output – 1 ACmV/1 ACA, 1 DCmV/1 DCA.
Size : 135 x 30 x 30 mm.

Specification

Range	0-50 DCA, 0-50 ACA.
Output	• ACA 1 AC mV per 1 ACA. • DCA 1 DC mV per 1 DCA.
Accuracy	± (0.8% + 0.2 mV).
Operating Temperature	0 to 50°C ( 32 to 122 )°F.
Operating Humidity	Less than 90% RH.
Dimension	135x35x30 mm (5.3×1.4×1.2 inch).
Weight	53g/0. 12 LB.
Accessory Included	Instruction manual ………..1 PC.
Application	Math DMM to extend the current measuring range into 50 Amp. Both of DCA & ACA.
Overload Protection	100 Amp. 1 min.
