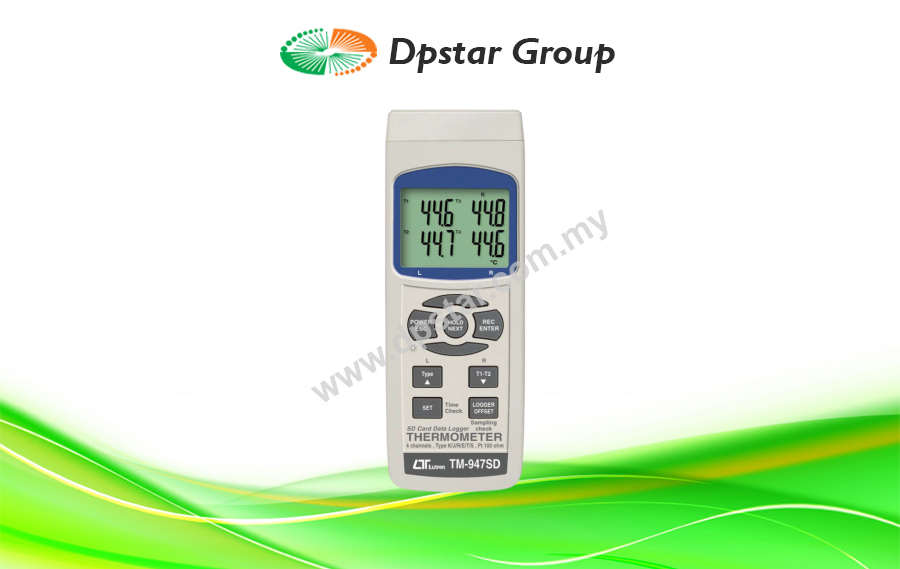

4 Channels Thermometer + SD Card Real Time Data Recorder - Lutron TM-947SD

4 Channels Thermometer + SD Card Real Time Data Recorder – Lutron TM-947SD

Type K/J/T/E/R/S, Pt 100 ohm, measurement with 4 display.
Show 4 channels display on the LCD at the same time.
Type K : -100 to 1300 ℃.
Type J : -100 to 1200 ℃.
Pt 100 ohm : -199.9 to 850.0 ℃.
℃/℉, 0.1 degree/1 degree.
4 channels ( T1, T2, T3, T4 ), T1-T2.
Microcomputer circuit provides intelligent function and high accuracy.
Offset adjustment for the Type K/J/T/E/R/S measurement.
Offset adjustment for the Pt 100 measurement.
Measuring unit can select to ℃ or ℉.
Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds.
Manual datalogger is available ( set the sampling time to 0 second ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).

Enquiry

Real time data recorder, save the data into the SD memory card and can be download to the Excel.
Type K/J/R/S/E/T, Pt 100 ohm, 4 display.
4 channels (T1, T2, T3, T4), T1-T2, oC/oF.
Display 4 channels Temp. at the same time.
Type K : -100 to 1300 oC.
Type J : -100 to 1200 oC.
Pt 100 ohm : -199 to 850 oC.
oC/oF, 0.1 degree/1 degree.
Data hold, Record (max., min.).
RS232/USB computer interface, Patented.
Optional Type K and Pt-100 ohm Temp. probe.
SD card capacity : 1 GB to 16 GB.
LCD with green light backlight, easy reading.
Can default auto power off or manual power off.
Data hold, record max. and min. reading.
Microcomputer circuit, high accuracy.
Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
RS232/USB PC COMPUTER interface.
Heavy duty & compact housing case.
Patent: Taiwan, China, Japan, Germany, USA pending.

Specification
