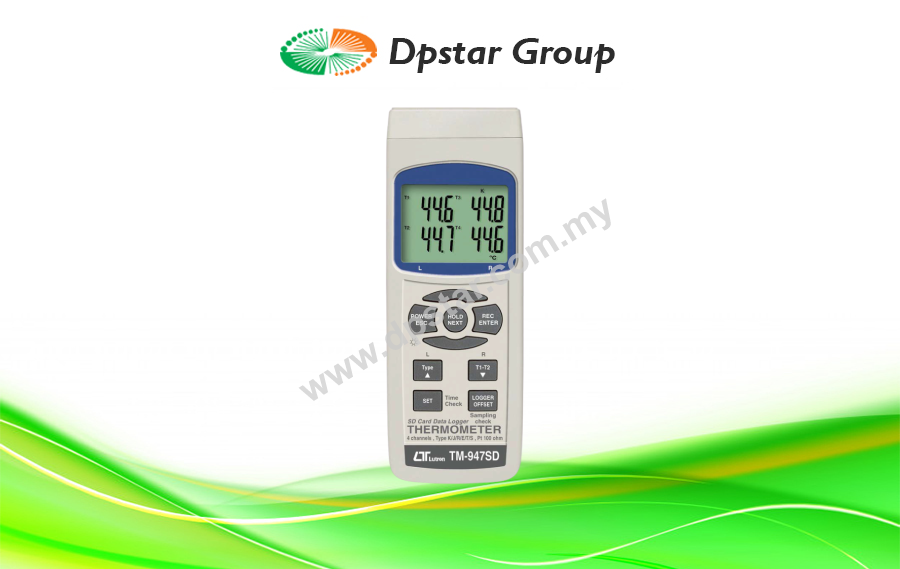

4 Channels Thermometer – Lutron TM-947SD

Features

  • Type K/J/T/E/R/S, Pt 100 ohm, measurement with 4 display.
  • Show 4 channels display on the LCD at the same time.
  • Type K : -100 to 1300 ℃.
  • Type J : -100 to 1200 ℃.
  • Pt 100 ohm : -199.9 to 850.0 ℃.
  • ℃/℉, 0.1 degree/1 degree.
  • 4 channels ( T1, T2, T3, T4 ), T1-T2.
  • Microcomputer circuit provides intelligent function and high accuracy.
  • Offset adjustment for the Type K/J/T/E/R/S measurement.
  • Offset adjustment for the Pt 100 measurement.
  • Measuring unit can select to ℃ or ℉.
  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds.
  • Manual datalogger is available ( set the sampling time to 0 second ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).





Enquiry

SD Card Real Time Data Recorder
4 Channels Thermometer
Model : TM-947SD

  • Real time data recorder, save the data into the SD memory card and can be download to the Excel.
  • Type K/J/R/S/E/T, Pt 100 ohm, 4 display.
  • 4 channels (T1, T2, T3, T4), T1-T2, oC/oF.
  • Display 4 channels Temp. at the same time.
  • Type K : -100 to 1300 oC.
  • Type J : -100 to 1200 oC.
  • Pt 100 ohm : -199 to 850 oC.
  • oC/oF, 0.1 degree/1 degree.
  • Data hold, Record (max., min.).
  • RS232/USB computer interface, Patented.
  • Optional Type K and Pt-100 ohm Temp. probe.
  • SD card capacity : 1 GB to 16 GB.
  • LCD with green light backlight, easy reading.
  • Can default auto power off or manual power off.
  • Data hold, record max. and min. reading.
  • Microcomputer circuit, high accuracy.
  • Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
  • RS232/USB PC COMPUTER interface.
  • Heavy duty & compact housing case.
  • Patent: Taiwan, China, Japan, Germany, USA pending.
