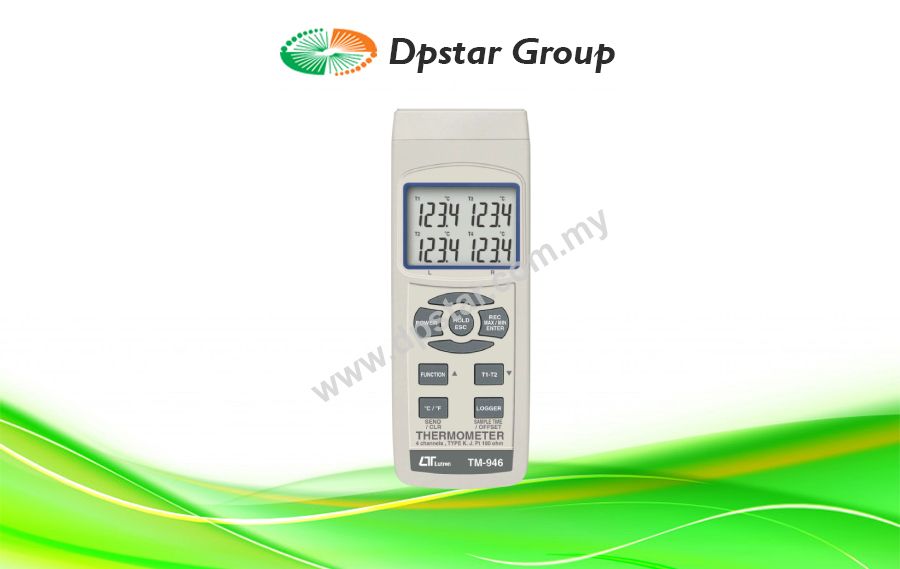

4 Channels Thermometer – Lutron TM-946

Features

  • Type K/J, Pt 100 ohm, measurement with 4 display.
  • Show 4 channels display on the LCD at the same time.
  • Type K : -199.9 to 1370 ℃.
  • Type J : -199.9 to 1210 ℃.
  • PT 100 ohm : -199.9 to 850 ℃.
  • ℃/℉, 0.1 degree/1 degree.
  • 4 channels ( T1, T2, T3, T4 ), T1-T2.
  • Microcomputer circuit provides intelligent function and high accuracy.
  • Manual and auto data logger, with flexible sampling time selection, can save max. 16,000 reading data.
  • Records Maximum and Minimum readings with recall.
  • Data hold function for freezing the desired value.
  • Offset adjustment for the Type K and Type J measurement.
  • Offset adjustment for the Pt 100 measurement.
  • Measuring unit can select to ℃ or ℉.
  • DC 1.5V ( UM-4, AAA ) battery x 6 PCs.
  • Build in the input socket for DC 9V power adapter.
  • RS232 PC serial interface.
  • Few panel buttons, easy operation.
  • Built-in low battery indicator.
  • Heavy duty & compact housing case.



Enquiry

4 Channels Thermometer
Model : TM-946

  • Type K/J, Pt 100 ohm, 4 display.
  • 4 channels (T1, T2, T3, T4), T1-T2, oC/oF.
  • Display 4 channels Temp. at the same time.
  • Type K : -100 to 1300 oC.
  • Type J : -100 to 1200 oC.
  • Pt 100 ohm : -199 to 850 oC.
  • oC/oF, 0.1 degree/1 degree.
  • Data hold, Record (max., min.),Data logger.
  • Optional data transmission software, SW-DL2005.
  • RS-232 interface, data logger.
  • Optional Type K Temp. probe, TP-01, TP-02A, TP-03, TP-04.
  • Optional Pt 100 ohm Temp. probe, TP-101.
  • DC 1.5V (UM-4, AAA) battery x 6 or DC 9V adapter in.
