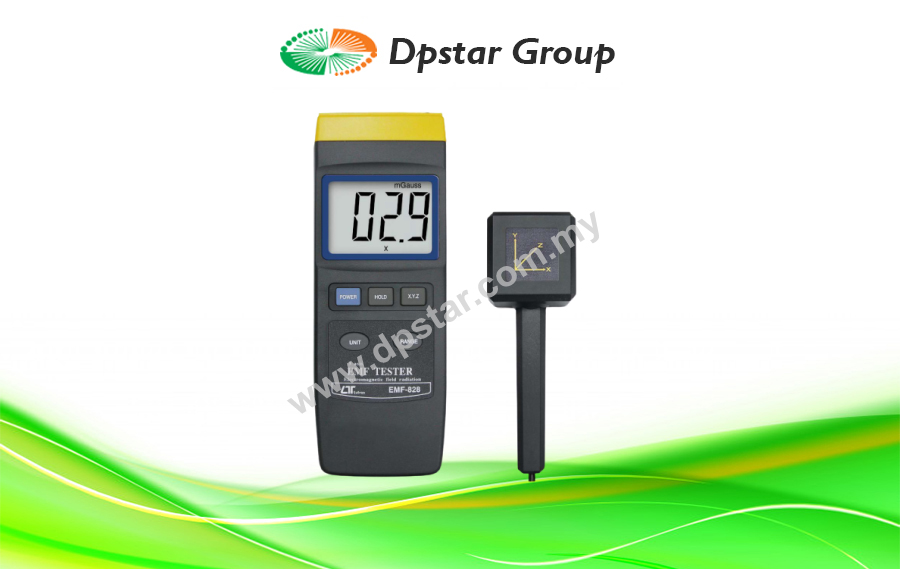

3D EMF Tester – Lutron EMF-828

Features

  • Three axis (X, Y, Z direction) electromagnetic field measurement.
  • Range : 20/200/2,000 micro Tesla.
    • 200/2,000/20,000 milli-Gause.
  • Band width : 30 Hz to 300 Hz.
  • LCD display, jumbo digit size.
  • Heavy duty separate probe.
  • Data hold, DC 9V battery.
  • Hard carrying case included.
  • Size : 200 x 68 x 30 mm.
Enquiry
Categories: , , ,
Love0

3D EMF Tester
Model : EMF-828

  • Three axis (X, Y, Z direction) electromagnetic field measurement.
  • Range : 20/200/2,000 micro Tesla.
    • 200/2,000/20,000 milli-Gause.
  • Band width : 30 Hz to 300 Hz.
  • LCD display, jumbo digit size.
  • Heavy duty separate probe.
  • Data hold, DC 9V battery.
  • Hard carrying case included.
  • Size : 200 x 68 x 30 mm.

Specification

Range Resolution Micro Tesla :
• 20 micro Tesla/0.01 micro Tesla
• 200 micro Tesla/0.1 micro Tesla
• 2000 micro Tesla/1 micro TeslaMili-Gauss :
• 200 mili-Gauss/0.1 mili-Gauss
• 2,000 mili-Gauss/1 mili-Gauss
• 20,000 mili-Gauss/10 mili-Gauss
Number of Axis • Three axis ( X, Y, Z direction ).
• Axis selected by push button.
Band width Accuracy 30 Hz to 300 Hz.
• ± (4 % + 3 d)
@ 20 micro Tesla range
@ 200 mili-Gauss range
• ± (5 % + 3 d)
@ 200 micro Tesla range.
@ 2,000 mili-Gauss range
• ± (10 % + 5 d)
@ 2,000 micro Tesla range.
@ 20,000 mili-Gauss range* Spec. accuracy tested under 50 Hz or 60 Hz.
* Spec. tested under the environment RF Field Strength less than 3 V/M & frequency less than the 30 MHz only
Display • LCD, 3 1/2 digits.
• LCD size : 55 mm x 47 mm.
• Max. indication 1999 counts.
• With display units.
Over-input Display shows ” 1 ” .
Sampling Time Approx. 0.4 second.
Battery DC 9 V battery (006P, 6F22).
Power Current Approx. DC 2.7 mA.
Operating Temp. 0 to 50 ( 32 to 122 ).
Operating Humidity Less than 85 %RH.
Weight 460 g/1.01 LB (including battery).
@ Including Probe and battery
Dimension • Main meter :
195 x 68 x 30 mm
( 7.6 x 2.6 x 1.2 inch )• Probe :
70 x 58 x 220 mm
( 2.8 x 2.3 x 8.7 inch ).
@ Sensor probe head : 75 x 58 mm.
Probe Cable Length 930 mm.
Accessories Included • Operation Manual……………………. 1 PC
• Carrying case…………………………. 1 PC
