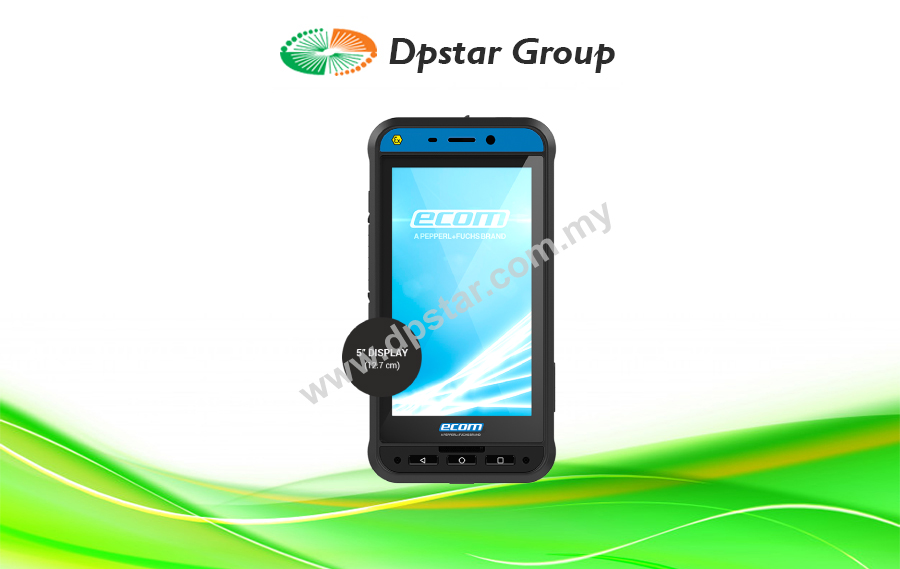

Explosion Proof Smartphones – Ecom Smart-Ex 02 DZ1

Features

  • Android Enterprise Recommended verified device
  • 4G / LTE standard (SIM unlocked)
  • Supports Dual-SIM
  • Supports 21 LTE bands
  • 3 GB RAM, 32 GB ROM
    Up to 128 GB additional memory with microSD
  • WiFi Standard 802.11 a/b/g/n/ac/e/k/r/h
    WiFi 2.4 Ghz und 5 Ghz support
  • Bluetooth 4.2 incl. BLE
  • GPS / A-GPS / Glonass / Beidou / Galileo / NFC
  • 2 cameras: 12 MP camera with autofocus and LED flash + 5 MP camera
  • Waterproof magnetic USB 2.0 connection
  • Replaceable 4400 mAh battery
Enquiry

The Smart-Ex 02 DZ1 is the successor of the world’s first intrinsically safe smartphone for Zone 1/21 and DIV 1 areas. In addition, it meets all important global hazardous location and regulatory certifications.

The rugged smartphone has a large, high-resolution display, powerful features, and optimized accessories. Its extended temperature range makes it suitable for even the harshest environments. Designed to support 21 LTE frequency bands, the Smart-Ex 02 has no SIM lock and can be connected to different networks worldwide. An Android operating system enables the intrinsically safe device to work safely, quickly, and efficiently. The ergonomic design and intuitive user interface enhance the user experience, and optimized accessories and peripherals ensure total compatibility with current and future ecom products. With the most powerful replaceable battery on market (4400 mAh), longer shifts and 24-hour work coverage are possible.

The Smart-Ex 02 also sets new standards when it comes to security. Regular security updates prevent unauthorized access to confidential personal and company data. To ensure unlimited, long-term use of the smartphone, ecom offers a three-year service level agreement. Pepperl+Fuchs’ global sales and service network provides excellent customer service around the globe. Support from ecom’s system engineers and development teams is also available when software requirements change.

Specification

Operating System Android 5.1 Operating System
Processor Firmware Over-the-Air (FOTA)
Chipset MSM8926 1.2 GHz Quad core
Band Cellular frequency bands EU variant:
• 4G LTE: B1, B3, B7, B8, B20, B38
• 3G UMTS: 850 / 900 / 1900 / 2100 MHz
• 2G GSM: 850 / 900 / 1800 / 1900 MHzCellular frequency bands US variant:
• 4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B17
• 3G UMTS: 850 / 900 / 1900 / 2100 MHz
• 2G GSM: 850 / 900 / 1800 / 1900 MHz
Memory 16GB Internal Storage / 1GB RAM 12GB user memory
Display 4.0 inch WVGA (480×800) & Corning Gorilla Glass 2 with Glove Touch, Blanview-Display
Ports 3.5 mm audio connector / Magnetic USB connector plug
Dimensions 163 x 82 x 22 mm
Weight approx. 290 g (10.23 oz)
Dedicated Keys PTT key / Alarm key / Power key
Connectivit •  4G / LTE –standard
•  MIMO antenna for LTE
•  WiFi 802.11 a/b/g/n dual-band, WiFi Direct, WiFi Hotspot
•  BT 4.0 / BLE (Bluetooth Low Energy) Support SMS and MMS (Bluetooth, SMS, MMS (text, image, audio, video))
•  A-GPS, GLONASS, NFC
Camera 8 MP auto focus rear, 1 MP fixed focus front
Capacity (mAh) 4800 mAh
Battery Up to 1000 hours Stand by, up to 40 hours talk time
Protection class IP68
Supported Language • Arabic • Simplified • Chinese • Croatian • Czech • Danish • Dutch • English • Finnish • French •German • Greek • Hungarian • Italian • Norwegian • Persian • Polish • Portuguese • Romanian •Russian • Spanish • Swedish • Turkish
Email Client EAS, Gmail, POP 3, IMAP
Ambient temperature • -20°C … +55°C
Size 137mm x 72,1mm x 26,9mm (5.39″ x 2.84″ x 1.06″)
Certifications FCC , PTCRB , IEEE1725, CEC, Bluetooth SIG, WFA , IC
Colors 16.7 M color
Outdoor Visibility Yes
Microphone Dual Mic Solution with Noise cancellation
Speaker 19 mm Loud Speaker with Gore Protective Vents, Output up to 103 dB
Audio Formats MP3, WMA 9, AAC , ACC +, eAAC +, AMR-NB/WB
Video Formats Support AV I, MP4, 3GPP
Media Player Android native + GMS
FM Radio Yes
LED torch light Yes
