3-Prong Miniature Connectors – Omega MTP Series

Features

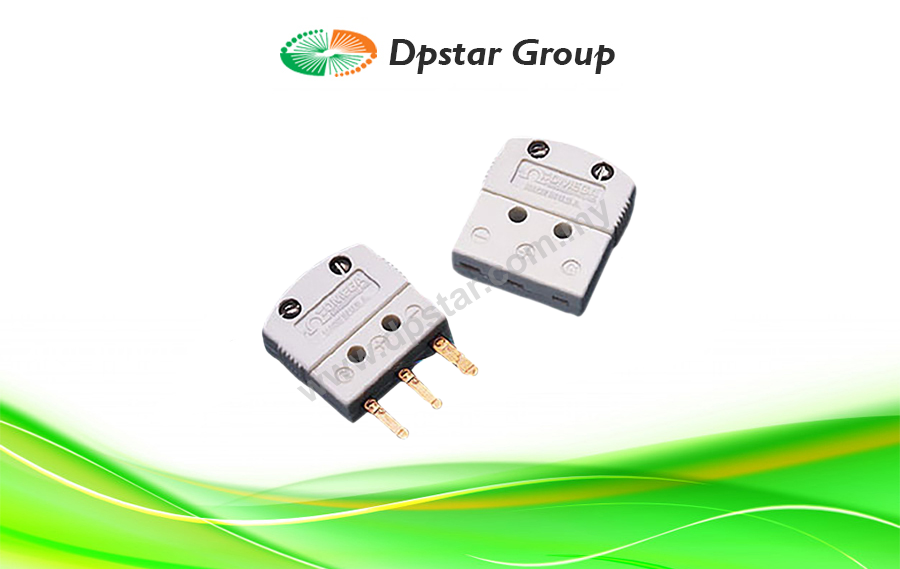

  • Supplied with shielded wire copper connection pin
  • Heavy duty construction
  • Color-coded
  • Accepts stranded or solid wire up to size 20 AWG
  • Combination phillips/ slot screws
  • U Glass-Filled Nylon rated from -29 to 180°C (-20 to 356°F)
Enquiry

Dpstar is a professional thermocouple supplier in Malaysia. We provide a wide range of top quality connectors assemblies for industrial and production to serve all your business needs. Your One-Stop Source for Leading Brands of Test, Measuring Tools and Equipment. Quality Assurance, Excellent Service, and Your Best Choice!

MTP Series is supplied with shielded wire copper connection pin. It is heavy-duty construction. Accepts stranded or solid wire up to size 20 AWG. Combination of phillips/ slot screws. U Glass-Filled Nylon rated from -29 to 180°C (-20 to 356°F).

Dimensions

Note: Minor discoloration of the connector may occur between 150°C (302°F) and 180°C (356°F). Electrical properties are not affected.

Specification

To Order
Alloy Code† Type of Thermocouple Used With Connector Compensating Alloy
Used in Connector
Model No. ANSI
Shell Color
Color Code
+ G
K CHROMEGA®-ALOMEGA® CHROMEGA® ALOMEGA® Copper Yellow MTP-K-(*)
T Copper-Constantan Copper Constantan Copper Blue MTP-T-(*)
J Iron-Constantan Iron Constantan Copper Black MTP-J-(*)
E CHROMEGA®-Constantan CHROMEGA® Constantan Copper Purple MTP-E-(*)
U Uncompensated Copper Copper Copper White MTP-U-(*)
N OMEGALLOY® OMEGA-P® OMEGA-N® Copper Orange MTP-N-(*)

† K, T, J, E, R, S and B are ANSI designations.
*To order, specify “M” for male connector only, or “F” for female connector only.
Omegalloy Type N is generically known as Nicrosil-Nisil.
OMEGA’s subminiature connectors are molded of high performance glass-filled nylon. Connectors will accommodate protection tubes from 0.25 mm to 3.17 mm (0.010″ to 1⁄8″) O.D. Additional bushings can be purchased for an additional cost; order BB-SMP-1.
