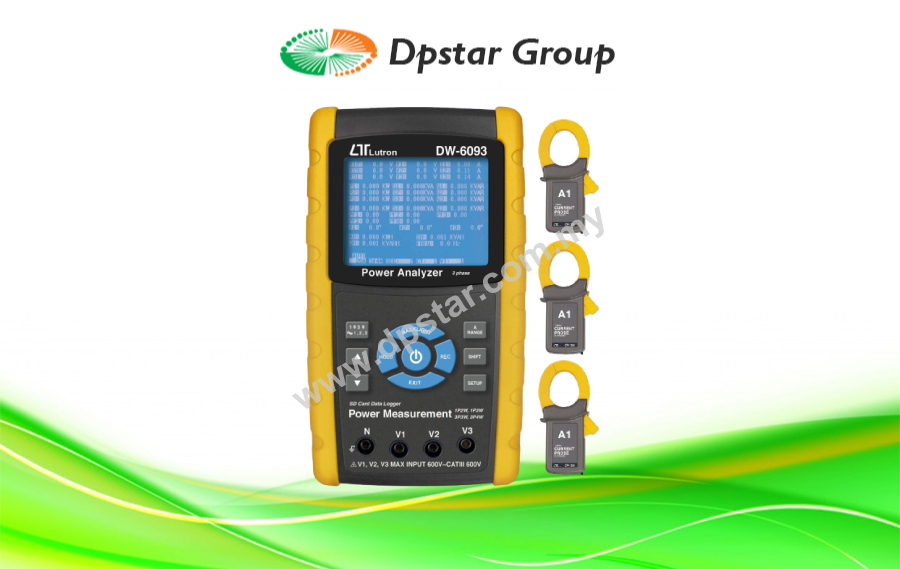

3 Phase Power Analyzer – Lutron DW-6093

Features

  • Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W.
  • 3 current probes (CP-1201) are included, if change the current probes, the calibration procedures are not necessary.
  • Voltage & Current are the True RMS value.
  • True Power (KW, MW, GW).
  • Apparent Power (KVA, MVA, GVA).
  • Reactive Power (KVAR, MVAR, GVAR).
  • Watt-Hour (WH, SH, QH, PFH).
  • Power Factor (PF), Phase Angle (Degree).
  • Voltage range : 10 to 600 ACV.
  • Current range : 0.2 to 1200 ACA, CP-1201.
  • Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
  • ACV input impedance is 10 Mega ohms.
  • Safety Standard : IEC 1010, CAT III 600V.
Enquiry
Categories: , , ,
Love0

3 Phase Power Analyzer
Model : DW-6093

  • Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W.
  • 3 current probes (CP-1201) are included, if change the current probes, the calibration procedures are not necessary.
  • Current probe input signal/ranges with selection:
    * Input signal (ACV) : 200 mV/300 mV/500 mV/1 V/2 V/3 V.
    * Ranges (ACA) : 20 A/200 A/2000 A/30 A/300 A/3000 A /6000 A.
  • Meter can cooperate with other universal current probes.
  • Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe (CP-1201), AC to DC 9V adapter, 4G SD memory card and Carrying bag.
  • Voltage & Current are the True RMS value.
  • True Power (KW, MW, GW).
  • Apparent Power (KVA, MVA, GVA).
  • Reactive Power (KVAR, MVAR, GVAR).
  • Watt-Hour (WH, SH, QH, PFH).
  • Power Factor (PF), Phase Angle (Degree).
  • Voltage range : 10 to 600 ACV.
  • Current range : 0.2 to 1200 ACA, CP-1201.
  • Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
  • ACV input impedance is 10 Mega ohms.
  • Safety Standard : IEC 1010, CAT III 600V.
  • Built-in clock and Calendar, real time data record with SD memory card , sampling time can be set from 2 to 7200 seconds. Just slot the SD card into the computer, all the measured values with the time information (year, month, data, hour, minute, second) can be downloaded to the Excel directly, then user can make the further data analysis by himself.
  • Powered by AA (UM-3) DC 1.5 V x 8 PCs batteries (Alkaline type) or DC 9V adapter.
  • Computer data output, can cooperate with optional USB Cable/USB-01, RS232 cable/UPCB-02 and Data Acquisition softwares, SW-U811, SW-E802.
  • Optional current probes : CP-1201, CP-200, CP-2000, CP-2011, CP-3000, CP-3001, CP-6001.
  • User can order the meter only (without the current probes) with the special request if intend to cooperate their own current probes.
  • Patented

Specification

Circuit Custom one-chip of microprocessor LSI circuit
Display • LCD Size : 81.4 X 61 mm ( 3.2 X 2.4 inch )
• Dot Matrix LCD (320 X 240 pixels ) with back light
Measurement • ACV
• ACA
• AC WATT ( True Power )
• AC WATT( Apparent Power )
• AC WATT( Reactive Power )
• Power factor
• Phase angle
• Frequency
Wire connections 1P/2W, 1P/3W, 3P/3W, 3P/4W.
Voltage ranges 10 ACV to 600 ACV, auto range.
Current probe input signal and range • Current probe input signal volage ( ACV ) :
200mV/300mV/500mV/1V/2V/3V.• Current probe input current range ( ACA ) :
20 A/200A/2000A (1200 A)/30A/300A/3000A• Meter can cooperate the universal current probe.
Safety standard IEC1010 CAT III 600 V.
ACV input impedance 10 Mega ohms.
Range select ACV : Auto range.
ACA : Manual range.
Clamp  frequency response 40 Hz to 1 KHz.
Spec. tested frequency 45 to 65 Hz
Over load protection • ACV  : 720 ACV rms
• ACA : 1300 ACA with clamp probe
* For the Clamp ,CP-1201
Over Indicator • LCD display show ” OL “.
• The data save into the SD card will show ” 9999 ” or ” 999 ”
( overleap the decimal point ).
Under Indicator • LCD display show ” UR “.
• The data save into the SD card will show ” 9999 ” or ” 999 ”
( overleap the decimal point ).
Data Hold Freeze the display reading.
Data Record SD Card Record.
Sampling Time Approx. 1 second.
Power ON/OFF Manual OFF by push button
Real time  data logger

• Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/ hour/mimute/second ) down load to the Excel

• Integration time for data logger : 2 seconds to 7200 seconds, the during of setting step are 2 seconds.
Data Output USB/RS232
* Computer interface		 RS232 computer serial interface :

• Connect the optional USB cable
USB-01 will get the USB plug.

• Connect the optional RS232 cable
UPCB-02 will get the RS232
Operating  Temperature 0 to 50 °C( 0 to 122 °F ).
Operating Humidity Less than 80% R.H..
Power Supply • DC 1.5V, AA ( UM-3 ) Battery X 8 PCs (Alkaline or heavy duty battery).
• AC to DC 9V power adapter.
Power  Consumption • Meter : 300 DCmA
• Clamp : 34 DCmA.
Clamp max. conductor  Size 50 mm ( 2.0 inch ) Dia.
* For the Clamp ,CP-1201
Weight • Meter: 948g ( includes batteries )
• Clamp ( includded cable ) : 467g
Dimension • Meter :
225 X 125 X 64 mm
( 8.86 X 4.92 X 2.52 inch )• Clamp :
210 X 64 X 33mm
( 8.3 X 2.5 X 1.3 inch )• Clamp Jaw :
86 mm (3.4 inch)- outside
Accessories Included • Instruction manual………………….. 1 PC
• Test Leads (TL88-4AT)…………. 1 Set (4 PCs)
• Alligator clips (TL88-4AC)……….1 Set (4 PCs)
• Clamp Probe ( CP-1201 )……..3 PCs
• AC to DC 9V adapter……………..1 PC
• SD card ( 2 G )……………………… 1 PC
• Carrying bag………………………….1 PC
Optional Accessories • 2000 Amp current probe, CP-2000
• 200 Amp current probe, CP-200
• Flexible 3000 Amp current probe, CP-3000
• USB Cable , USB-01
• RS232 cable, UPCB-02
• Data Acquisition software, SW-U811

Download
