3 Phase Power Analyzer – Lutron DW-6092

Features

  • 3 phase/4 wire, 3 phase/3 wire, 1 phase/2 wire, 1 phase/3 wire
  • True rms measurement for ACA, ACV.
  • True power : W, KW, MW.
  • VA, KVA, MVA, VAR, KVAR, MVAR.
  • PF (power factor), phase angle.
  • KWH, KVAH, KVARH, PFH.
  • Voltage measurement range: 10 to 600 ACV
  • Current measurement range: 0.2 A to 1200 ACA.
  • Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
  • Real time data recorder with SD card.
  • RS232/USB computer interface.
  • Display all measuring electrical wave shape.
  • Patent: Taiwan, China, Japan, Germany, USA pending.
Enquiry
Categories: , , ,
Love0

SD Card Real Time Data Recorder,
3 Phase Power Analyzer

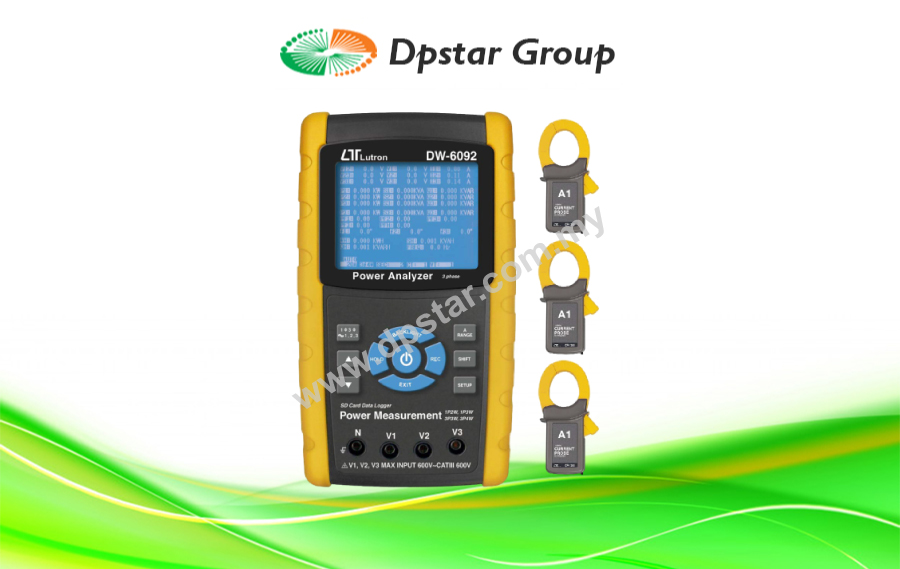

Model : DW-6092

  • 3 phase/4 wire, 3 phase/3 wire, 1 phase/2 wire, 1 phase/3 wire
  • True rms measurement for ACA, ACV.
  • True power : W, KW, MW.
  • VA, KVA, MVA, VAR, KVAR, MVAR.
  • PF (power factor), phase angle.
  • KWH, KVAH, KVARH, PFH.
  • Voltage measurement range: 10 to 600 ACV
  • Current measurement range: 0.2 A to 1200 ACA.
  • Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
  • Real time data recorder with SD card.
  • RS232/USB computer interface.
  • Display all measuring electrical wave shape.
  • Patent: Taiwan, China, Japan, Germany, USA pending.

Specification

Circuit Custom one-chip of microprocessor LSI circuit
Display • LCD Size : 81.4 X 61 mm ( 3.2 X 2.4 inch )
• Dot Matrix LCD (320 X 240 pixels ) with back light
Measurement • ACV
• ACA
• AC WATT ( True Power )
• AC WATT( Apparent Power )
• AC WATT( Reactive Power )
• Power factor
• Phase angle
• Frequency
Wire connections 1P/2W, 1P/3W, 3P/3W, 3P/4W.
Voltage ranges 10 ACV to 600 ACV, auto range.
Current ranges 0.2 ACA to 1200 ACA, auto range/manual range.
Safety standard IEC1010 CAT III 600 V.
ACV input impedance 10 Mega ohms.
Range select ACV : Auto range.
ACA : Auto range & manual range
Clamp  frequency response 40 Hz to 1 KHz.
Spec. tested frequency 45 to 65 Hz
Over load protection ACV  : 720 ACV rms
ACA : 1300 ACA with clamp probe CP-1200
Over Indicator Show ” OL “.
Under Indicator Show ” UR “.
Data Hold Freeze the display reading.
Data Record SD Card Record.
Sampling Time Approx. 1 second.
Power ON/OFF Manual OFF by push button
Real time  data logger • Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/ hour/mimute/second ) down load to the Excel

• Integration time for data logger : 2 seconds to 7200 seconds, the during of setting step are 2 seconds.
Data Output USB/RS232
* Computer interface		 RS232 computer serial interface :

• Connect the optional USB cable
USB-01 will get the USB plug.

• Connect the optional RS232 cable
UPCB-02 will get the RS232
Operating  Temperature 0 to 50 °C( 0 to 122 °F ).
Operating Humidity Less than 80% R.H..
Power Supply • DC 1.5V, AA ( UM-3 ) Battery X 8 PCs (Alkaline or heavy duty battery).
• AC to DC 9V power adapter.
Power  Consumption • Meter : 300 DCmA
• Clamp : 20 DCmA.
Clamp max. conductor  Size 86 mm ( 3.4 inch ) Dia.
Weight • Meter: 1049g ( includes batteries )
• Clamp : 522g
Dimension • Meter :
225 X 125 X 64 mm
( 8.86 X 4.92 X 2.52 inch )• Clamp :
210 X 64 X 33mm
( 8.3 X 2.5 X 1.3 inch )• Clamp Jaw :
50 mm (2.0 inch)- outside
Accessories Included • Instruction manual………………….. 1 PC
• Test Leads (TL88-4AT)…………. 1 Set (4 PCs)
• Alligator clips (TL88-4AC)……….1 Set (4 PCs)
• Clamp Probe ( CP-1200 )……… 3 PCs
• AC to DC 9V adapter……………..1 PC
• SD card ( 2 G )……………………… 1 PC
• Carrying bag………………………….1 PC
Optional Accessories • USB Cable , USB-01
• RS232 cable, UPCB-02
• Data Acquisition software, SW-U811-WIN
