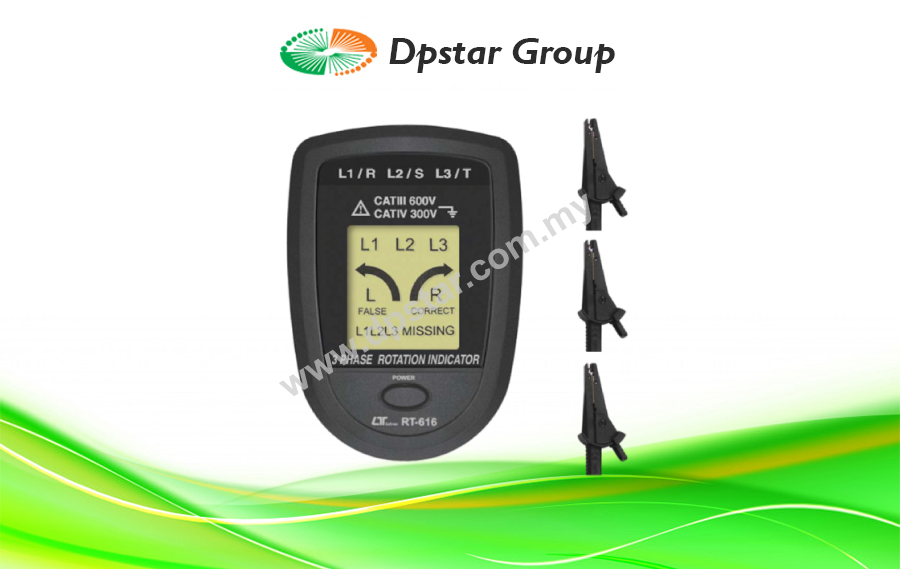

3 Phase & Motor Rotation Tester LCD Display – Lutron RT-616

Features

Large LCD display with back light, easy to read under the strong light or the dark environment.
Electronic (not mechanical) rotation test, high reliability.
3 phase rotation detector.
Input : 100 – 660 V AC, 45 to 70 Hz.
Custom one-chip of microprocessor circuit
3 heavy duty alligator clips are included.
Power supply : DC 9V 006P battery.

Categories: Test Instruments, Lutron ~ Test Instruments, 3 Phase Rotation Tester, Motor Tester, Thiết bị test

3 Phase & Motor Rotation Tester, LCD display
Model : RT-616

Large LCD display with back light, easy to read under the strong light or the dark environment.
Electronic (not mechanical) rotation test, high reliability.
3 phase rotation detector.
Input : 100 – 660 V AC, 45 to 70 Hz.
Custom one-chip of microprocessor circuit
3 heavy duty alligator clips are included.
Power supply : DC 9V 006P battery.

Specification

Signal Input Voltage	• 100V AC up to 660 AC maximum, • 3 min. limit for over 500V AC.
Signal Current Consumption	Approx. 7 mA per phase.
Signal Freq.Range	45 to 70 Hz.
Circuit	• Electronic ( not mechanical). • Custom one-chip of microprocessor LSI circuit.
Power Supply	DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent. Approx.
Power Consumption	Approx. DC 8 mA.
Operating Temperature	0 to 50 ( 32 to 122 ).
Operating Humidity	Less than 80% RH.
Dimension	• 100 x 50 x 25 mm. • 3.9 x 1.9 x 1.0 inch.
Weight	150 g/0.33 lb.
Standard Accessories	• Operational manual……………..1 PC • Meter with 3 PCs 40 cm length test lead and banana Plug………1 SET • Alligator clip……………………….3 PC
