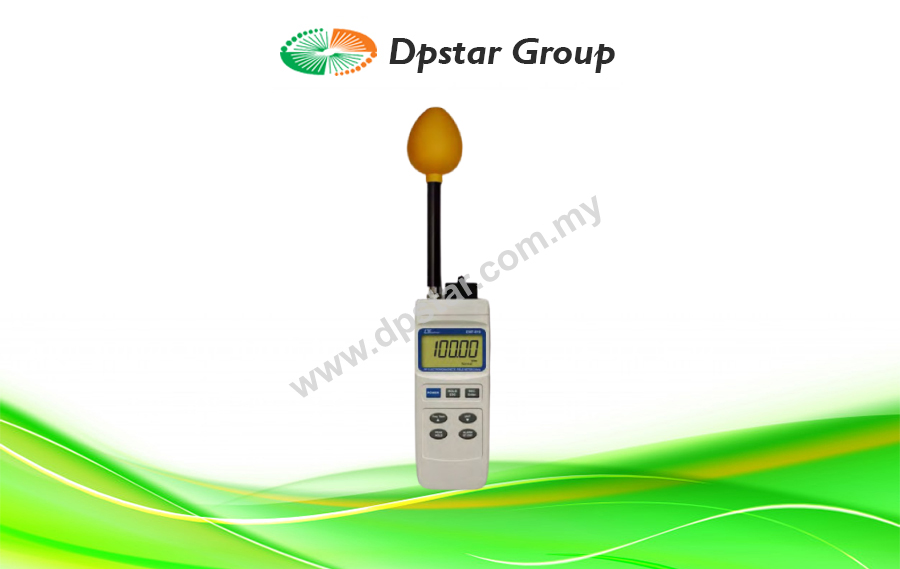

3 Axis RF Electromagnetic Field Meter – Lutron EMF-819

Features

  • 3 Axis RF EMF tester, general purpose application.
  • Frequency range up to 3 GHz, for monitoring the wide range radio frequency EMF value or detect the micro wave leakage.
  • Measuring range
  • Data hold, Peak hold. Record (Max., Min. value).
  • Frequency Probe, EP-05H is included.
  • Hard carrying case is included.
  • RS232/USB computer interface.
  • Large size LCD, Microcomputer circuit.
  • Powered by DC 9V battery or DC 9V adapter.
Enquiry
Categories: , , ,
Love0

3 Axis RF Electromagnetic Field Meter
Model : EMF-819

  • 3 Axis RF EMF tester, general purpose application.
  • Frequency range up to 3 GHz, for monitoring the wide range radio frequency EMF value or detect the micro wave leakage.
  • Measuring range : 0 to 199.99 V/m,
    : 0 to 99.999 W/m2
    : 0 to 9.9999 mW/cm2
  • Data hold, Peak hold. Record (Max., Min. value).
  • Frequency Probe, EP-05H is included.
  • Hard carrying case is included.
  • RS232/USB computer interface.
  • Large size LCD, Microcomputer circuit.
  • Powered by DC 9V battery or DC 9V adapter.

Specification

Circuit Custom one-chip of microprocessor LSI circui
Display LCD size : 58 mm x 34 mm.
Measurement Unit LCD size : 58 mm x 34 mm.
Accuracy < 2 dB
Probe structure 3 Axis
Probe Inpu Impedance 50 OHM
Sensor Structure Semiconductor
Frequency Team Selection Two points selection : Normal, 2.45 GHz
Data Hold Freeze the display reading.
REC Function Record Maximum & Minimum value.
Power off Auto shut off saves battery life or manual off by push button.

• Can default auto power off or manua power off.
• When default auto power off power will off automatically after 10 min. if no button be pressed.
Peak Hold To latch the peak measurement value.
Alarm Setting Buzzer will sound when display over the setting value
Sampling Time Approx. 1 second.
Low Battery Indicator When display show Low battery  Indicator, it
should change the batteries.
Data Output RS 232 PC serial interface.
Operating Temperature 0 to 50 °C
Operating Humidity Less than 80 %RH
Power Supply • DC 9 V battery ( 006P )
Heavy duty or Alkaline type.• DC 9V adapter input.
Power Current Approx. DC 5.95 mA
Weight 425 g/ 0.94 LB.
Dimension • Main instrument : 200.0 x 76.2 x 36.8 mm
• Probe : 70 mm ( diameter) x 240 mm ( length)
Accessories Included •  Instruction manual………………………. .. 1 PC
•  EP-05HProbe………………………………..1 PC
•  Memory card for EP-05H………………. 1 PC
•  Hard carrying case………………………….1 PC
•  DC 9V power adapter……………………..1 PC
•  DC 9V power adapter……………………..1 PC
Optional Accessories • RS232 cable, UPCB-02.
• USB cable, USB-01.
• Data Acquisition software,SW-U801-WIN.
