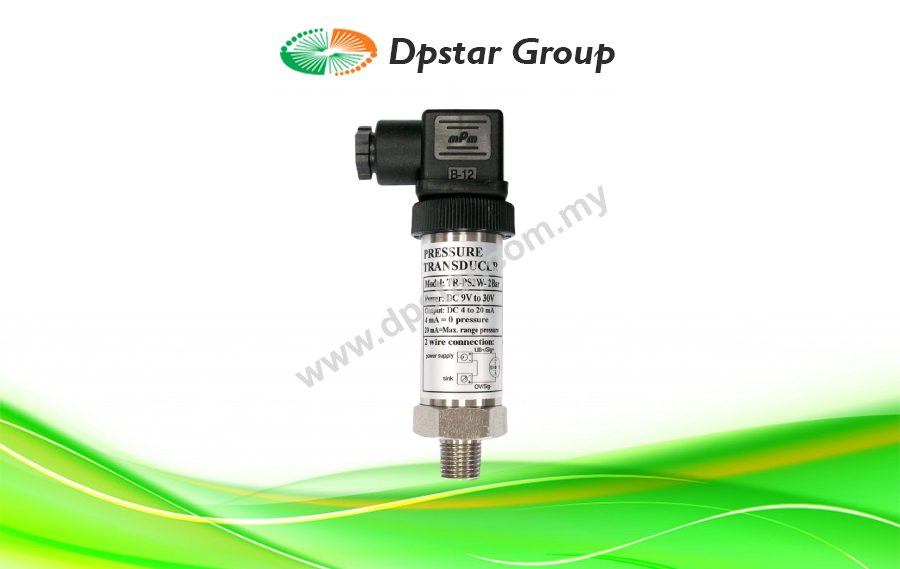

2 Wires Pressure Transmitter – Lutron TR-PS2W

Range : 2, 5, 10, 20, 50, 100, 400 BAR.
Output : 4 to 20 mA DC.
: 4 mA = 0 pressure
: 20 mA = full scale pressure
2 wires, both for signal and power supply.
Precision ceramic type pressure sensor.
External zero and span adjustment.
Output with socket, easy replacement.
Allow high cable load resistance, transmitter　can install far away from the controller/incator.
Protection for the reverse wires connecting.
TR-PS2W can cooperate the ” 4-20 mA　Controller/Alarm/Indicator ” CT-2012,　then become a pressure controller and the　indicating system. The user can control and　monitor the pressure value from far away.

Enquiry

2 Wires Pressure Transmitter
Model : TR-PS2W-XXBAR

Range : 2, 5, 10, 20, 50, 100, 400 BAR.
Output : 4 to 20 mA DC.
: 4 mA = 0 pressure
: 20 mA = full scale pressure
2 wires, both for signal and power supply.
Precision ceramic type pressure sensor.
External zero and span adjustment.
Output with socket, easy replacement.
Allow high cable load resistance, transmitter　can install far away from the controller/incator.
Protection for the reverse wires connecting.
TR-PS2W can cooperate the ” 4-20 mA　Controller/Alarm/Indicator ” CT-2012,　then become a pressure controller and the　indicating system. The user can control and　monitor the pressure value from far away.

Specifications

Measuring Range / Model	• Measuring Range : 2 BAR ( 29 PSI ) Model :TR-PS2W-2BAR• Measuring Range : 5 BAR ( 72.5 PSI ) Model :TR-PS2W-5BAR• Measuring Range : 10 BAR ( 145 PSI ) Model :TR-PS2W-10BAR• Measuring Range : 20 BAR ( 290 PSI ) Model : TR-PS2W-20BAR• Measuring Range : 50 BAR ( 725 PSI ) Model :TR-PS2W-50BAR• Measuring Range : 100 BAR ( 1450 PSI ) Model :TR-PS2W-100BAR • Measuring Range : 400 BAR ( 5800 PSI ) Model :TR-PS2W-400BAR
Output	4 – 20 mA • 4 mA = 0 BAR • 20 mA = Full scale pressure
Supply Voltage	DC 9V to 30 V
Wire Number	2 wires, bioth for signal and power supply.
Port Connector	1/4″ NPT or PS 1/4″, 19 teeth per inch. Inclided one adapter connector that convert 1/4″ NPT to 1/4 ” PS.
Span and Zero adjustment	Span and Zero can be adjustment by multi turns VR.
Span	± 1 % F.S. • Within 10 ℃ to 40 ℃ .
Zero	± 2 % F.S. • Within 10 ℃ to 40 ℃ .
Load Impedance requirement	Load up to 500 ohms.
Operating Temperature	-20 to 80 ( -4 to 176 ).
Operating Humidity	Less than 80% RH.
Size	30 mm dia. x 85 mm ( 1.2 inch dia. x 3.3 inch ).
Weight	160 g.
output Connector	Socket
Wire Connection	2 wire • Connection 1 : Power + and signal • Connection 2 : Power –
