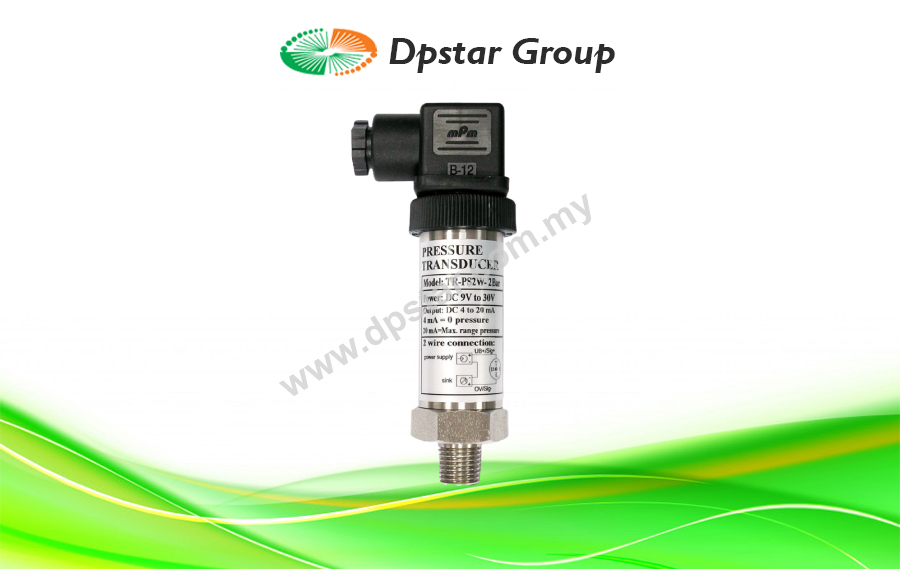

2 Wires Pressure Transmitter – Lutron TR-PS2W

Range : 2, 5, 10, 20, 50, 100, 400 BAR.
Output : 4 to 20 mA DC.
4 mA = 0 pressure
20 mA = full scale pressure
2 wires, both for signal and power supply.
Precision ceramic type pressure sensor.
External zero and span adjustment.
Output with socket, easy replacement.
Allow high cable load resistance, transmitter can install far away from the controller/indicator.
Protection for the reverse wires connecting.
TR-PS2W can cooperate the ” 4-20 mA Controller/Alarm/Indicator ” CT-2012, then become a pressure controller and the indicating system. The user can control and monitor the pressure value from far away.

Enquiry

Range : 2, 5, 10, 20, 50, 100, 400 BAR.
Output : 4 to 20 mA DC.
4 mA = 0 pressure
20 mA = full scale pressure
2 wires, both for signal and power supply.
Precision ceramic type pressure sensor.
External zero and span adjustment.
Output with socket, easy replacement.
Allow high cable load resistance, transmitter can install far away from the controller/incator.
Protection for the reverse wires connecting.
TR-PS2W can cooperate the “4-20 mA Controller/Alarm/Indicator” CT-2012, then become a pressure controller and the indicating system. The user can control and monitor the pressure value from far away.

Specifications

Mesuring range / Model	• Mesuring range : BAR ( 29 PSI ) Model : TR-PS2W-2BAR • Mesuring range : 5 BAR ( 72.5 PSI ) Model : TR-PS2W-5BAR • Mesuring range : 10 BAR ( 145 PSI ) Model : TR-PS2W-10BAR • Mesuring range : 20 BAR ( 290 PSI ) Model : TR-PS2W-20BAR • Mesuring range : 50 BAR ( 725 PSI ) Model : TR-PS2W-50BAR • Mesuring range : 100 BAR ( 1450 PSI ) Model : TR-PS2W-100BAR • Mesuring range : 400 BAR ( 5800 PSI ) Model : TR-PS2W-400BAR
Output	• 4 – 20 mA • 4 mA = 0 BAR • 20 mA = Full scale pressure
Supply voltage	DC 9V to 30 V * protect red against reverse polarity
Wire numbers	2 wires, bioth for signal and power supply.
Port connector	• 1/4″ NPT or • PS 1/4″, 19 teeth per inch. * Inclided one adapter connector that convert the ¼” NPT to ¼ PS.
Span and Zero adjustment	Span and Zero can be adjustment by multi turns VR.
Span	± 1 % F.S. • Within 10 ℃ to 40 ℃
Zero	± 2 % F.S. • Within 10 ℃ to 40 ℃
Load impedance requirement	Load up to 500 ohms.
Operating Temperature	– 20 ℃ to 80℃ ( -4°F to 176°F ).
Operating Humidity	Less than 80% RH.
Size	30 mm dia. x 85 mm ( 1.2 inch dia. x 3.3 inch ).
Weight	160 g.
Ouput connector	Socket
Wire connection	2 Wire • Connection 1 : Power + and signal • Connection 2 : Power –
