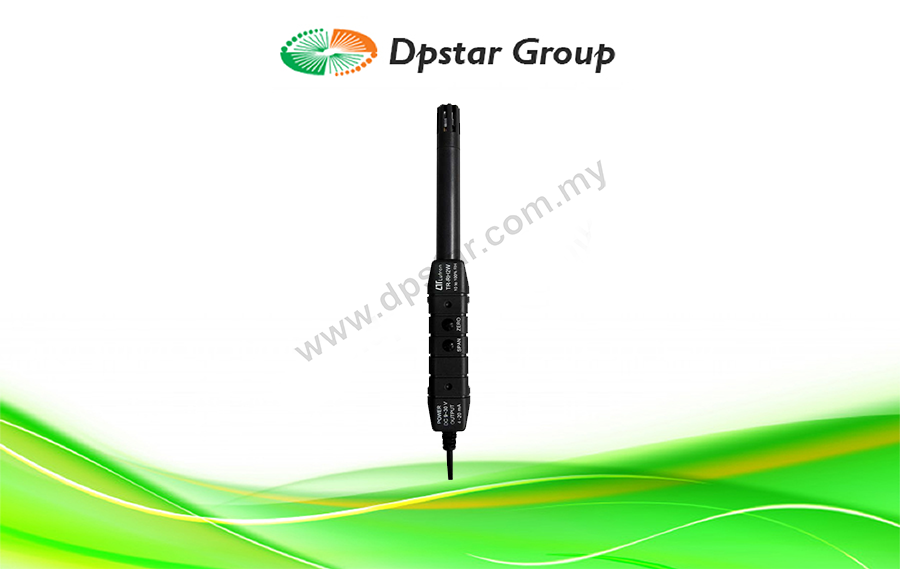

2 Wires Humidity Transmitter – Lutron TR-RH2W

Range : 10 %RH to 95 %RH.
Output : 4 to 20 mA DC.
- 5.6 mA = 10 %RH, 12 mA = 50 %RH
- 16 mA = 75 %RH, 19 mA = 95 %RH
2 wires, both for signal and power supply.
Precision capacitance type humidity sensor.
External zero and span adjustment.
Allow high cable load resistance, transmitter can install far away from the controller/incator.
Protection for the reverse wires connecting.
TR-RH2W can cooperate the “4-20 mA Controller/Alarm/Indicator” CT-2012, then become a humidity controller and the indicating system. The user can control and monitor the humidity value from far away.

Enquiry

Range : 10 %RH to 95 %RH.
Output : 4 to 20 mA DC.
- 5.6 mA = 10 %RH, 12 mA = 50 %RH
- 16 mA = 75 %RH, 19 mA = 95 %RH
2 wires, both for signal and power supply.
Precision capacitance type humidity sensor.
External zero and span adjustment.
Allow high cable load resistance, transmitter can install far away from the controller/incator.
Protection for the reverse wires connecting.
TR-RH2W can cooperate the “4-20 mA Controller/Alarm/Indicator” CT-2012, then become a humidity controller and the indicating system. The user can control and monitor the humidity value from far away.

Specification

Measuring range	10 %RH to 95 %RH.
Output	• 4 – 20 mA • 10 %RH = 5.6 mA • 50 %RH = 12 mA • 95 %RH = 19.2 mA
Humidity sensor	High precision capacitive type humidity sensor.
Power Supply	DC 9V to 30 V * Protected against reverse polarity
Wire numbers	2 wires, both for signal and power supply.
External adjustment	• ZERO VR • SPAN VR
Accuracy	• ≧ 70 %R.H. – ± (3% reading + 1% R.H.) • <70 %R.H. – ± 3%R.H.
Load impedance requirement	Load up to 500 ohms.
Operating Temperature	0°C to 50°C ( 32°F to 122°F ).
Operating Humidity	Less than 95% RH.
Size	200 x 23 x 19 mm ( 7.9 x 0.9 x 0.7 inch ).
Weight	75 g ( 0.16 LB ).
Cable length	Approx. 1.2 meter.
Wire Connection	2 wires : • Red…………………………………… Power + and signal • Black…………………………………. Power –
Accessory included	Operation manual………………… 1 PC
